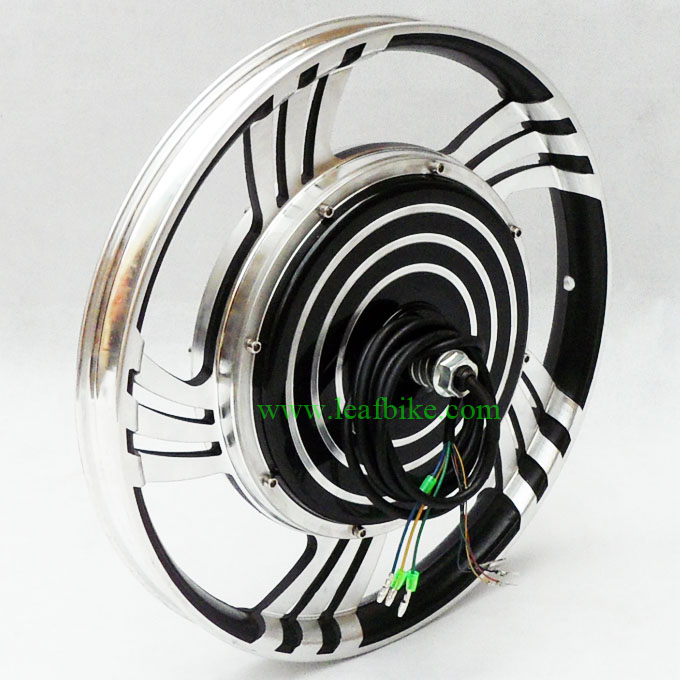

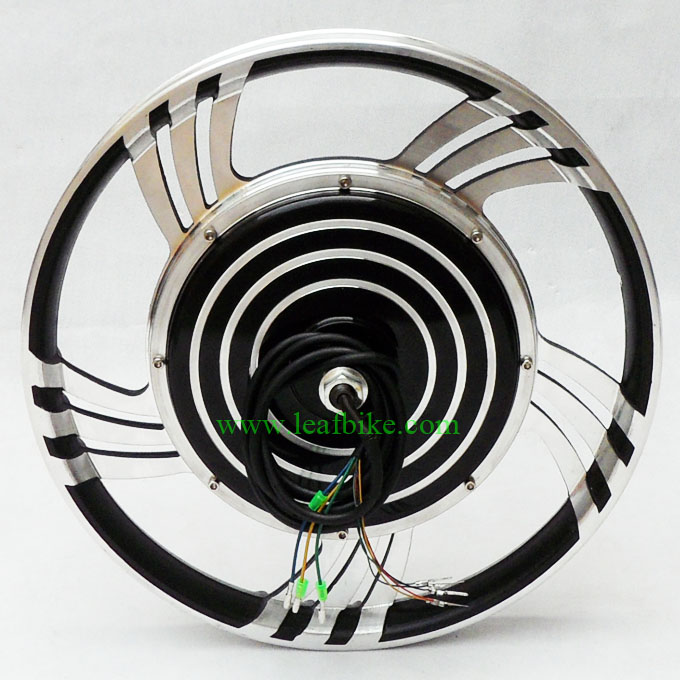

Please watch video for 18 inch 48V 52V 1000W front electric scooter motor that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
Detail:
Hub: Ø372mm Alloy (Hub Fit For: 18 x 2.125" ~ 2.5" tire)
Motor Type: electric scooter motor
Voltage: 48V / 52V
Power: 1000W
Efficiency: ≥ 82%
Max speed: 50.4 kmh -- 30 mph
Mechanical brake: V
Cable location: shaft end, Right
Cable length:150cm / 60"
Install: spacing of 100mm fork
Noise: < 60 db
Surface: Black painted
Net weight: 7.39Kg / 16.3 lbs
Gross weight: 8.89Kg ( after packing )
Package Content:
1 x 18 inch 48V 52V 1000W front electric scooter motor
Package Size: 46cm L x 46cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:
18 inch Front Drw.
Performance Data:
Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards, your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
