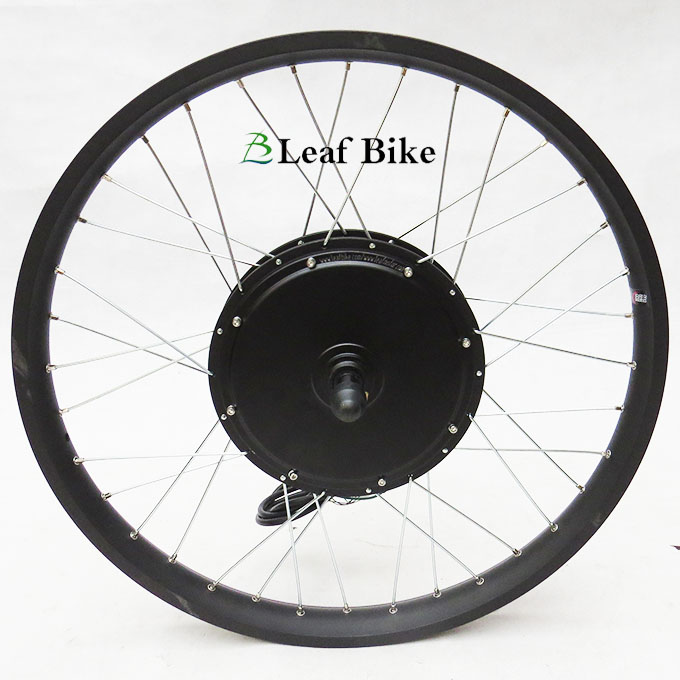

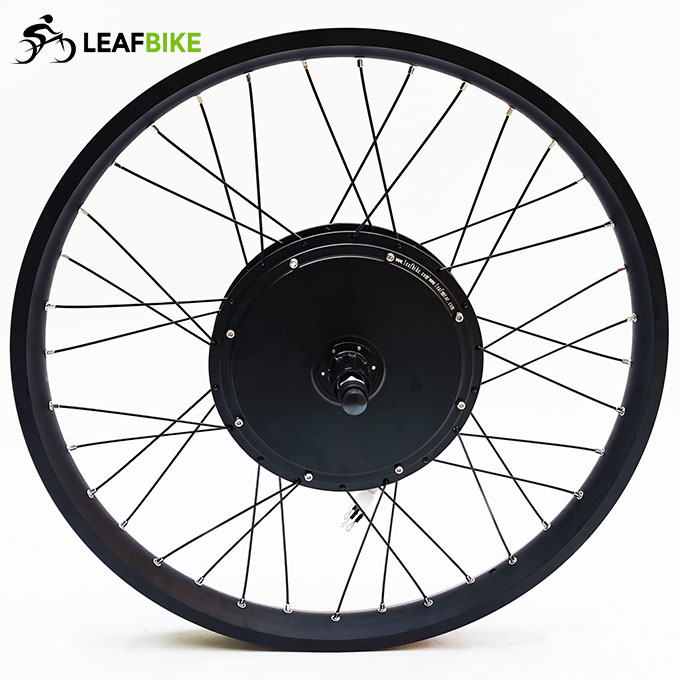

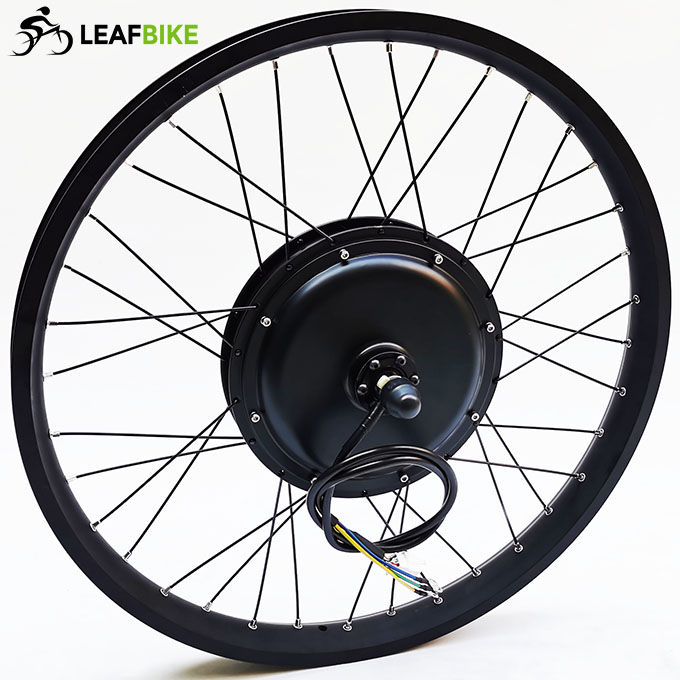

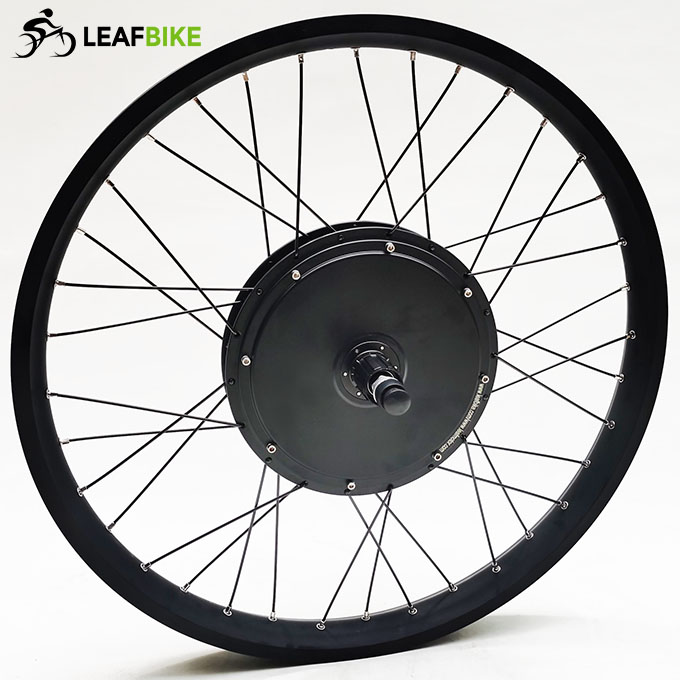

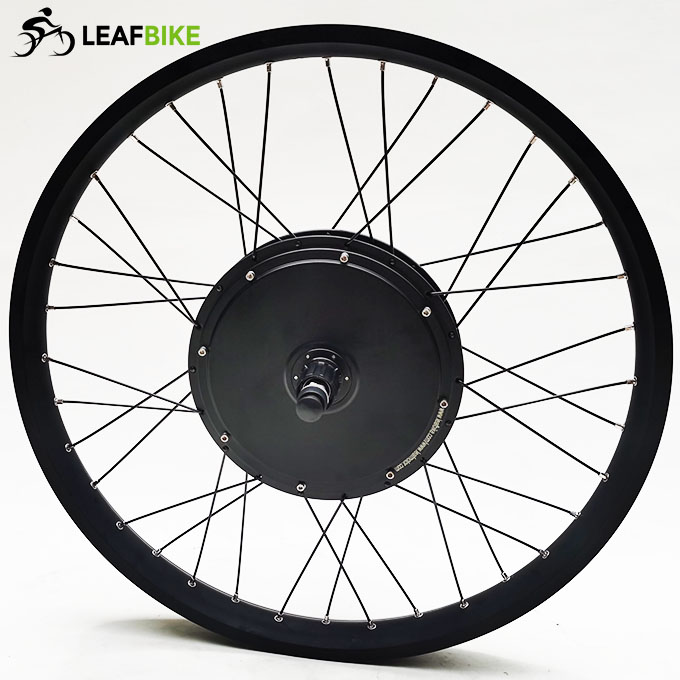

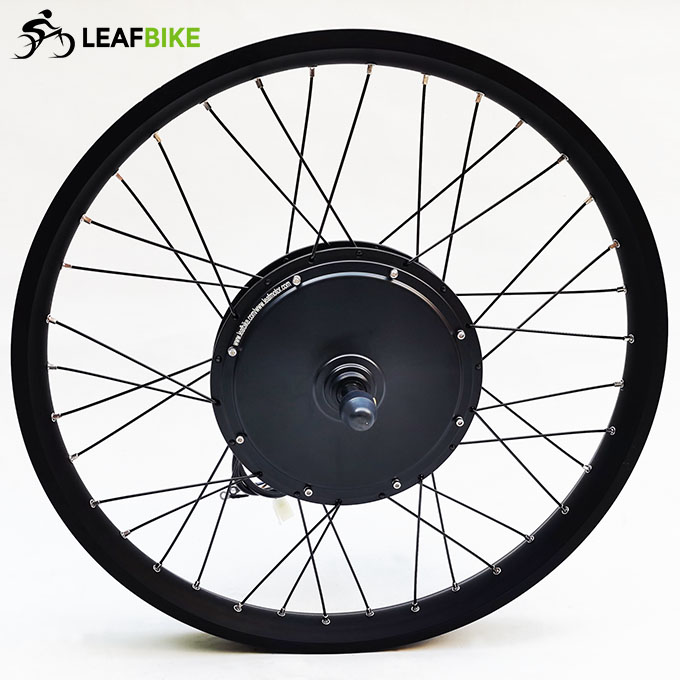

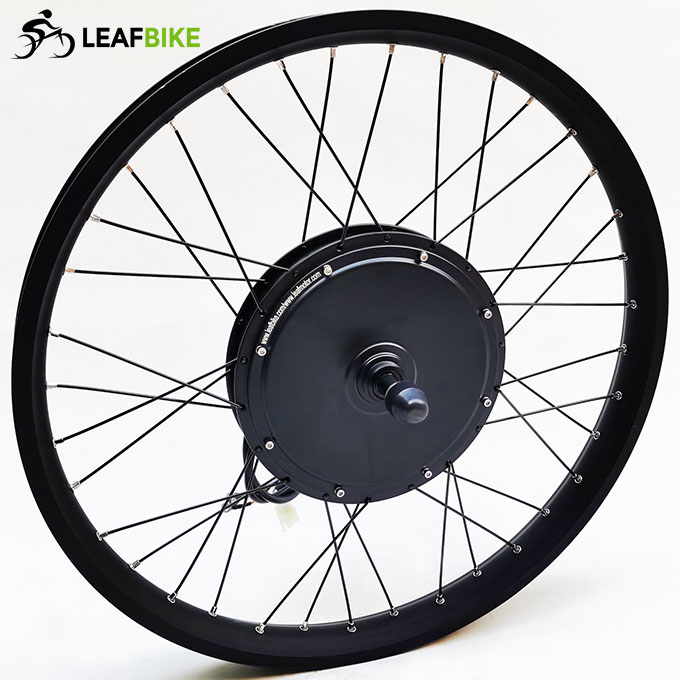

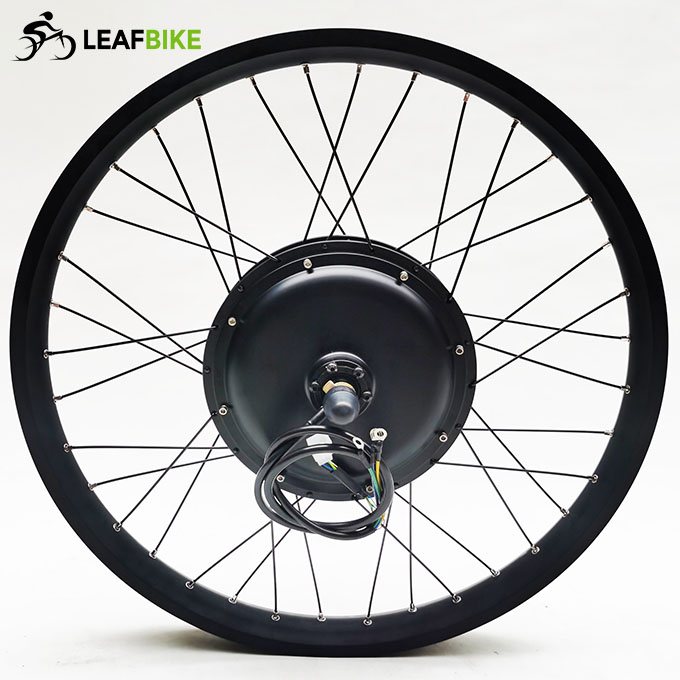

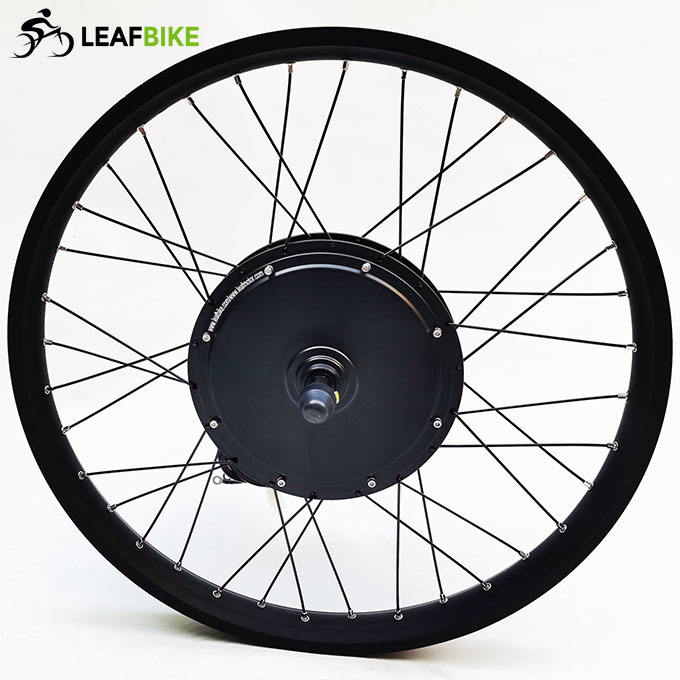

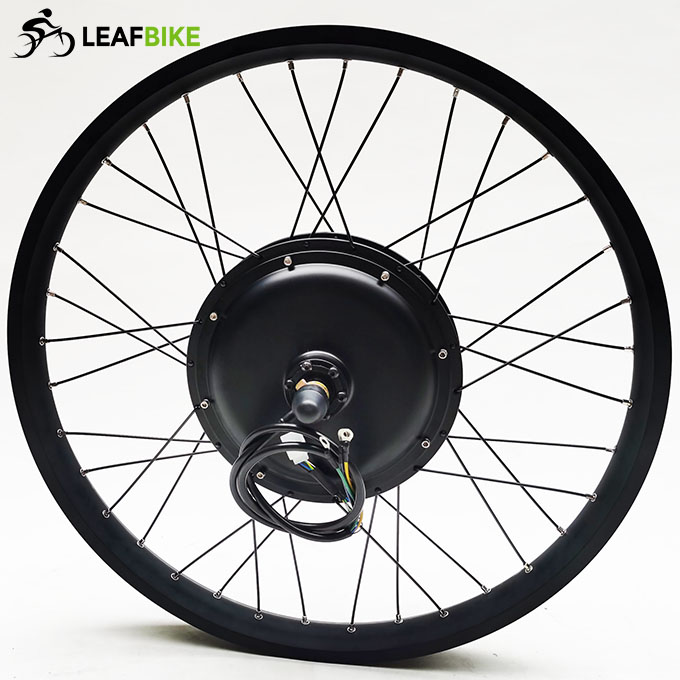

Wide rim 26 inch 48V 52V 1500W rear hub motor - bike conversion kit

* The conversion kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.


Main Features:
>. Rim: 26 inch 59mm external double wall Alloy (Rim Fit For: 26 × 2.8 ~ 3.0" tire)
>. Spoke: Black 12 gauge / 159mm Length × 36 pcs -- (Default black spokes / please leave message for silver spokes)

>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 81.1 kmh -- 50mph Default (Optional other speed: 55mph,42mph,30mph or 25mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Sprocket: Freewheel or Cassette
>>.  Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of Min.135mm ~ Max.155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 45 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 45 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

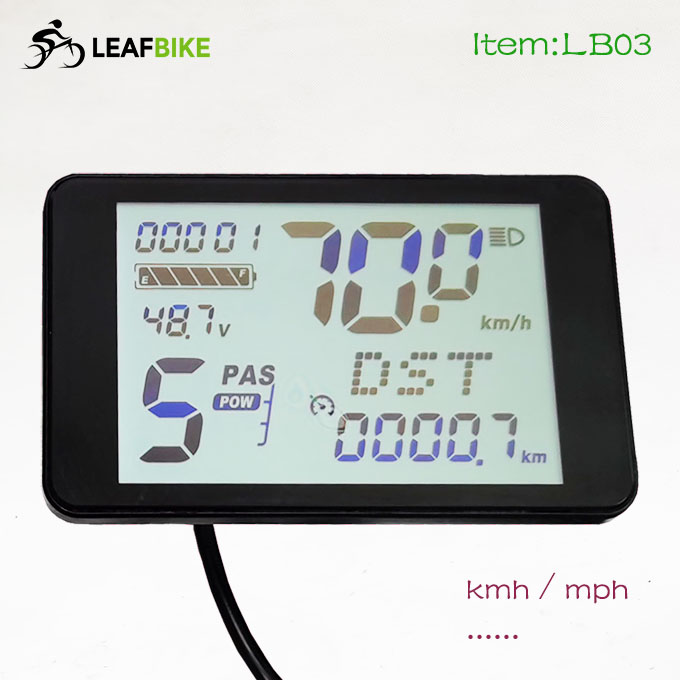

LCD-830, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Kmh / mph
* Max speed ( 0 ~ 100 kmh / 60 mph ) --  If set be "32", Max speed will be 20mph / 32kmh
* Speeds ( 0 - 5 ) -- "0" is off. "1" is the slowest. "5" is the fastest.
* ...

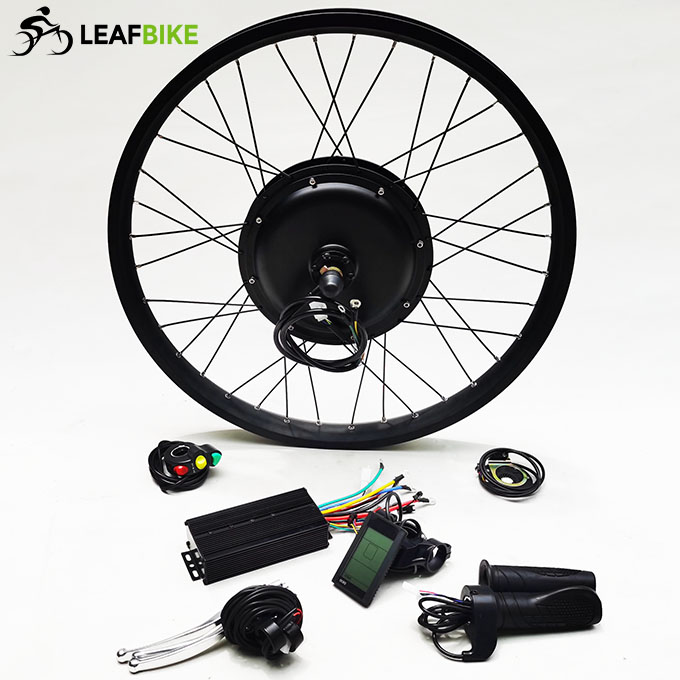

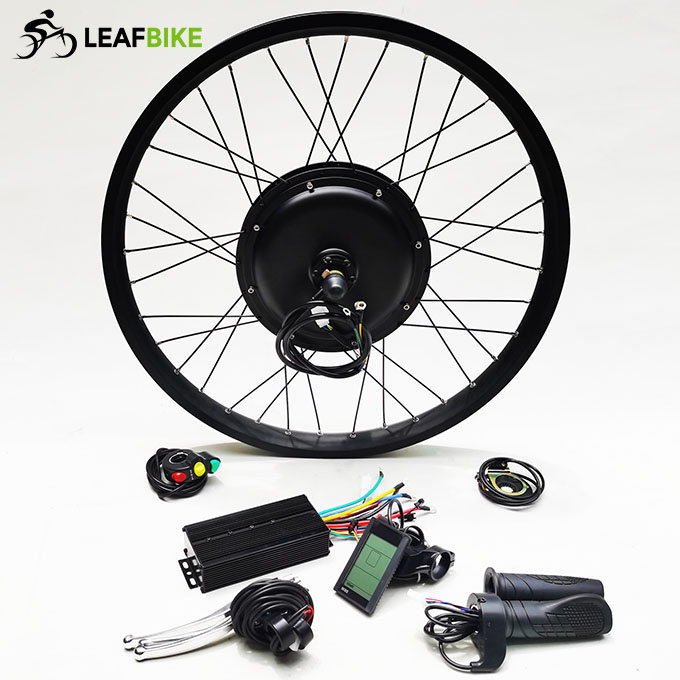

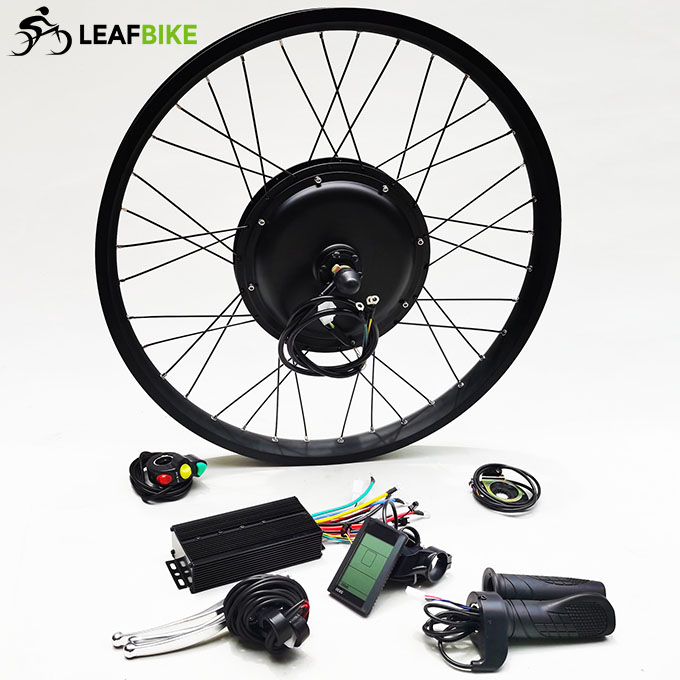

Package Content:
1 x Wide rim - 26 inch 48V / 52V 1500W rear hub motor wheel
1 x 48V / 52V 1500W 18-MOSFET motor controller
1 x LCD-830 ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1000mm

 Net Weight: 25.6 lbs
Package Size: 62cm L × 62cm W × 25cm H
Package Type: Cardboard Box

* This motor & controller system handle a 48V / 52V battery (From Min 40V....47V,48V,49V,50V,51V,52V,53V,54V,55V.... ~ Max 60V DC).
