The 26 inch electric bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
Main Features:

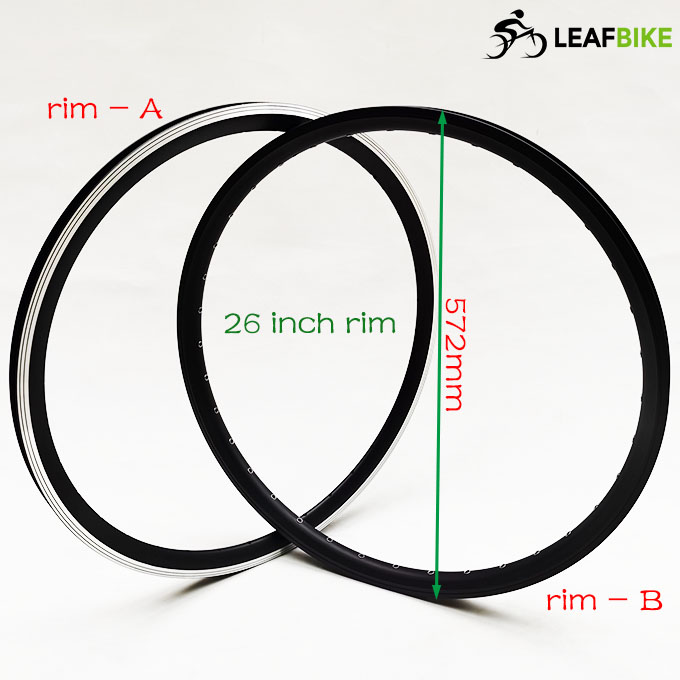

>. Rim: 26 inch double wall Alloy (Rim Fit For: 26 × 1.95" / 2.1" / 2.5" tire)
If the width of your tire / tyre is 1.75, 1.5 inch…(smaller than 1.95 inch)
Please note tire/tyre size when you place an order so that we can send a thin rim & fit for your wider tire/tyre.)
>. Spoke: 12 gauge / 160mm Length × 36 pcs
>. Default: Silver spokes
>. Optional: Black spokes -- Please leave message.
>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 59.1 kmh -- 36.7mph Default (Free customization other speeds: 42mph or 30mph, 25mph, 20mph, 15mph...please leave message)
>>. Mechanical brake: Disk or V
>>. Cassette case: Default
>>. Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>. Install: spacing of Min 135mm to Max 155mm fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
Default: Heat Shrink Bullet Crimp Female Male Wire Connectors Electrical Terminals for battery plug.(Leave message Optional: XT-60)
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminum
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H
LCD-008HUP With USB Port & Color Screen , More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / Backwards")
* Regen brake -- Red button Control ("Up / Regen ON -- Down / Regen off ")
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph ) -- If set be "32", Max speed will be 20mph / 32kmh
* Pedal assist ( 0 - 5 ) -- "0" is off PAS. "1-5" is on PAS. "5" is the strongest.
* ...

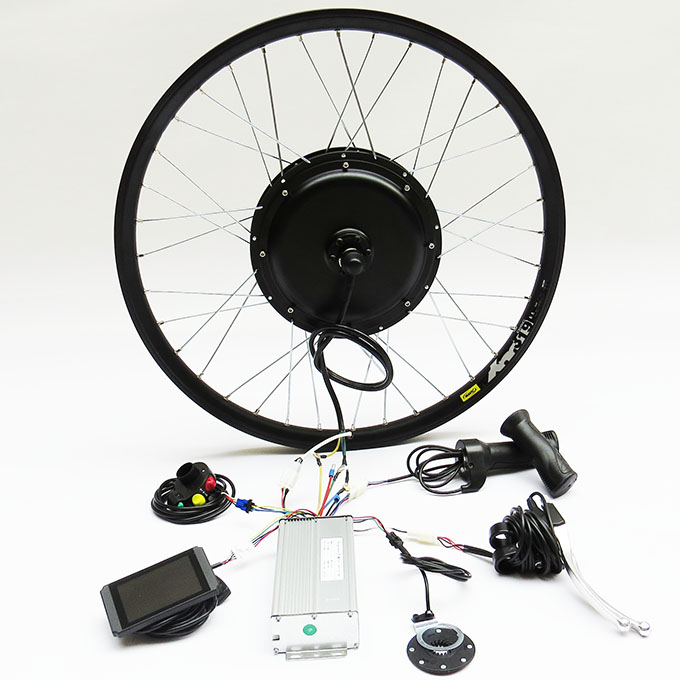

Package Content:

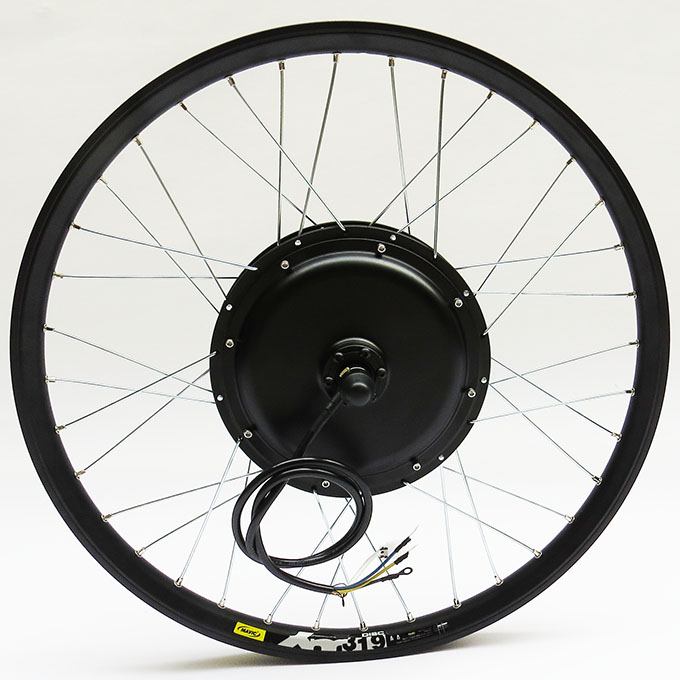

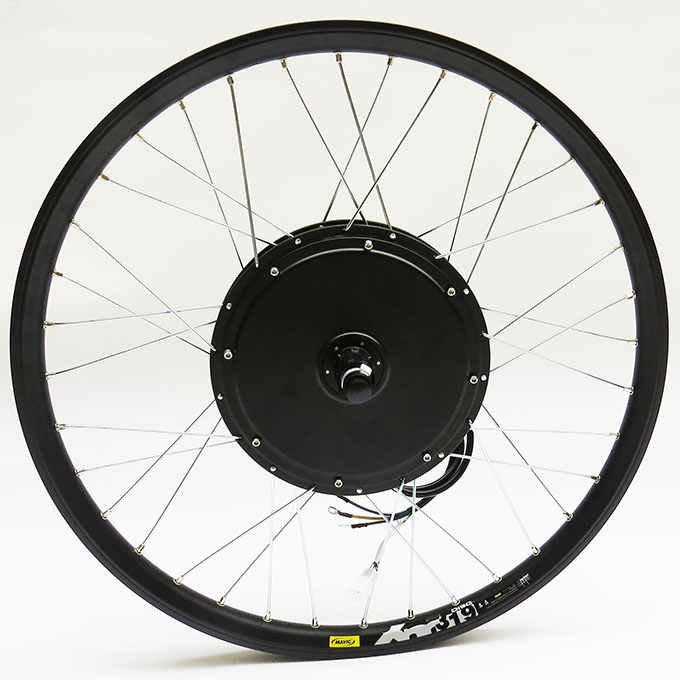

1 x 26 inch 48V 52V 1500W rear hub motor wheel - cassette version
1 x 48V 52V 1500W 12-MOSFET motor controller
1 x LCD-008HUP With USB Port & Color Screen
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 25.6 lbs
Package Size: 62cm L × 62cm W × 25cm H
Package Type: Cardboard Box
* This motor & controller system can handle with a 48V or 52V battery.
