Please watch videos for 700c 24V 250W rear hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh..
Share Video:
Share Video:
This 700c bike motor kit combines the full Electric bike technology: direct drive Brushless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
>. Engine: Bldc hub motor
>>. Voltage: 24V
>>. Power: 250W
>>. Efficiency: 80%
>>. Max speed: 23.7 kmh -- 14.7 mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, Right
>>. Cable length:100cm / 40"
>>. Install: spacing of 135mm fork
>>. Noise: < 60 db
>>. Surface: Black
>. Driver: brushless controller
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 24 Volts
>>. Min. Voltage: DC 20 ± 0.5 V
>>. Rated power: 250 Watts
>>. Casing material: aluminium
>>. Maximum Current: 15 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L × 61 mm W × 35 mm H

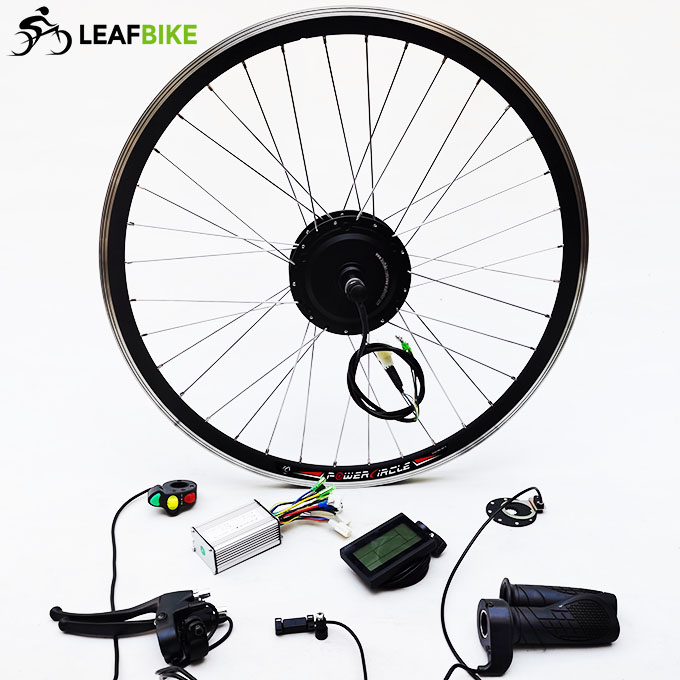

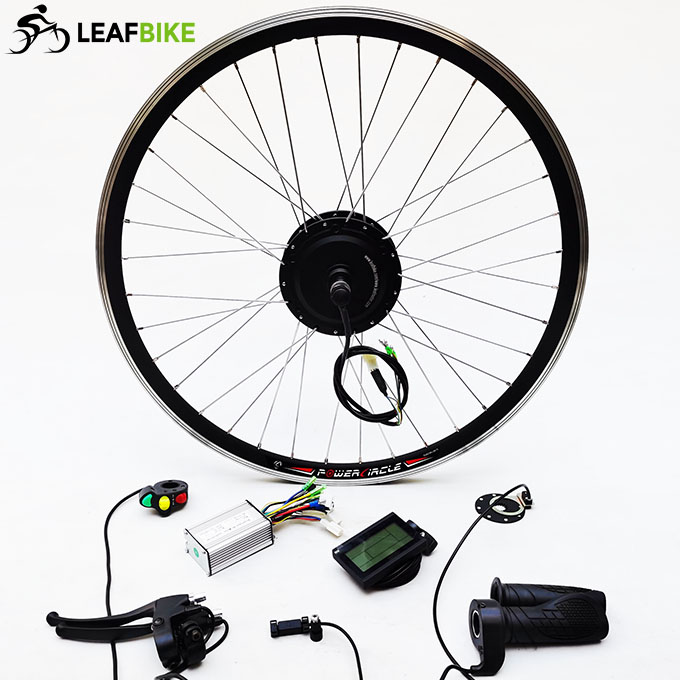

Package Content:

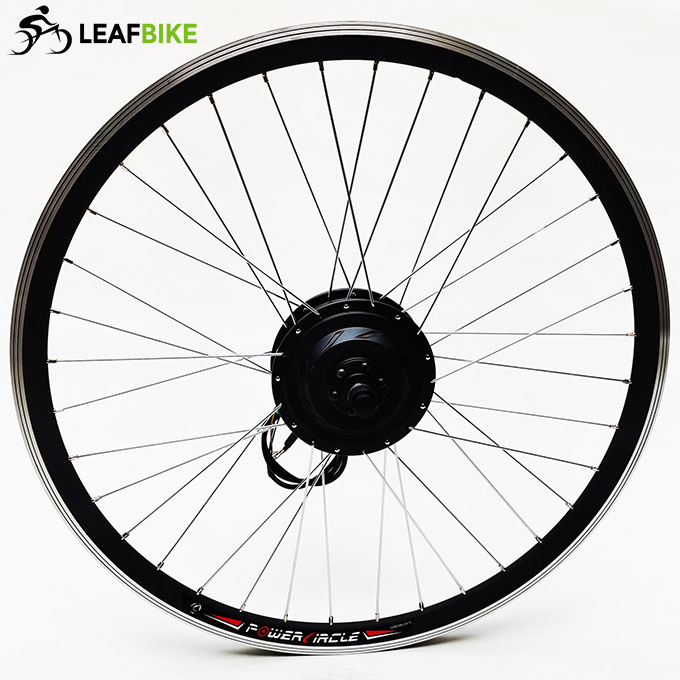

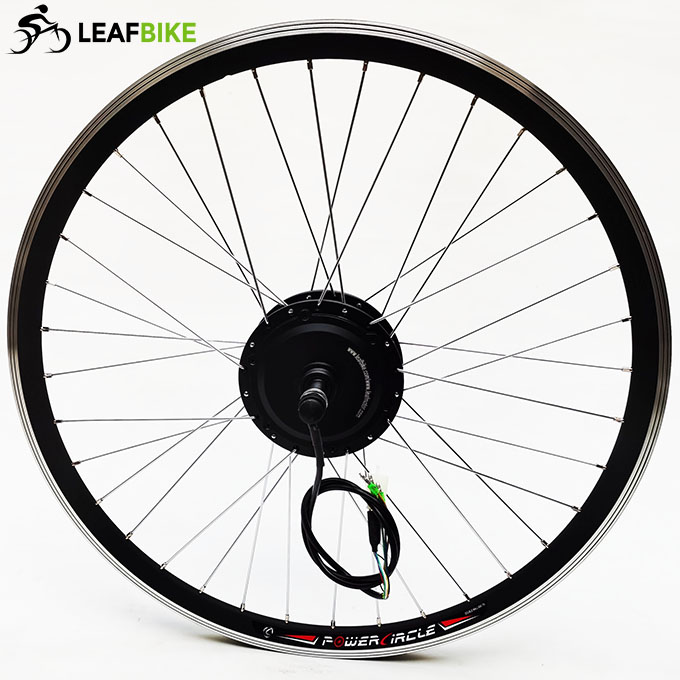

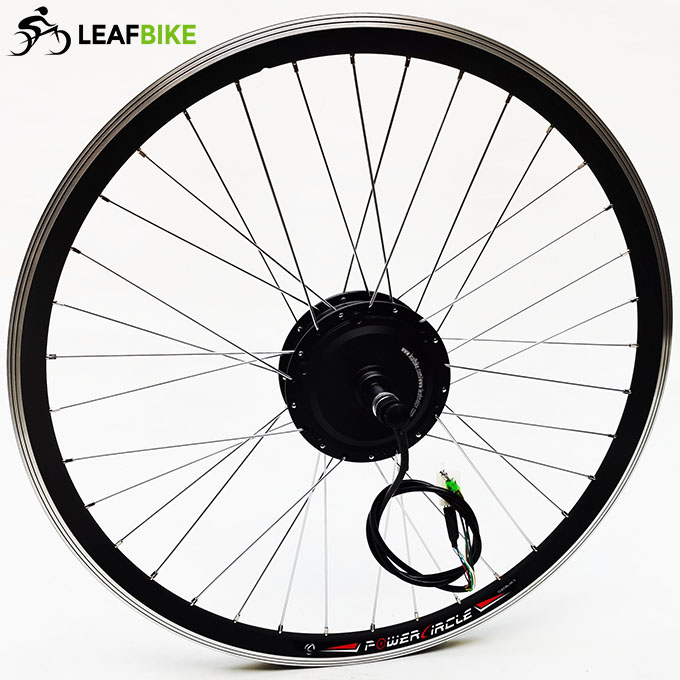

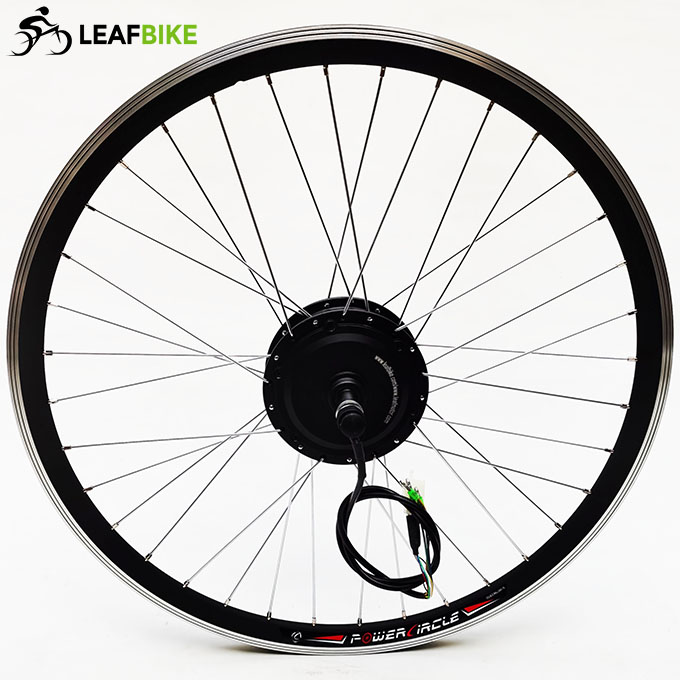

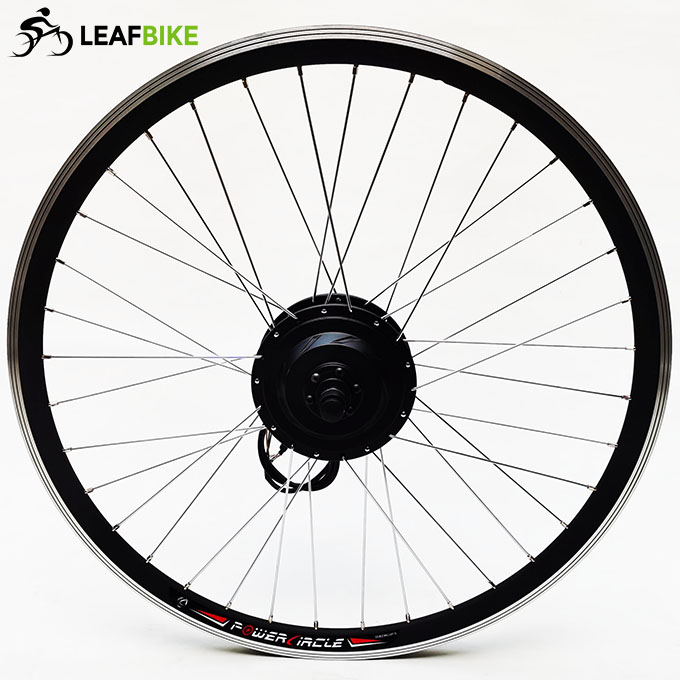

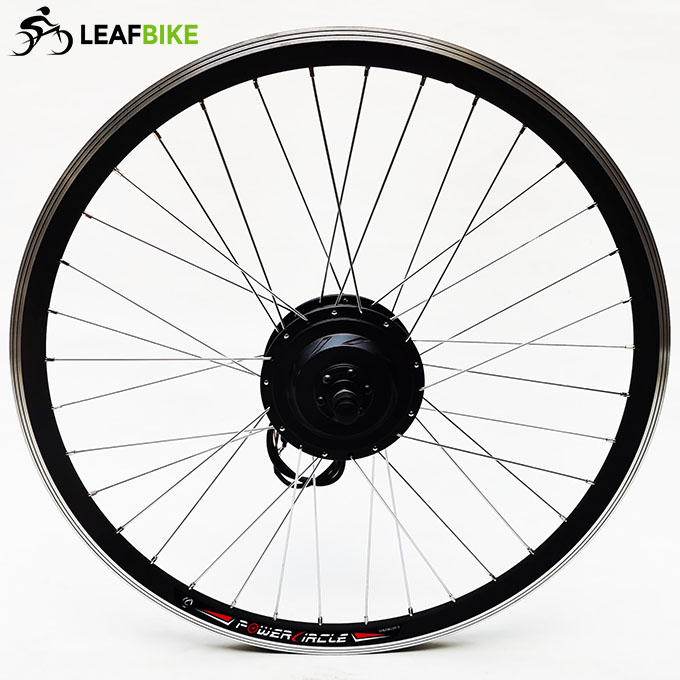

1 x 700c 24V 250W rear hub motor wheel
1 x 24V 250W 6-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle -- Cable length: 1500mm 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net weight: 5.85 kg / 12.9 lbs
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:
250W Rear Drw.
Performance Data:
