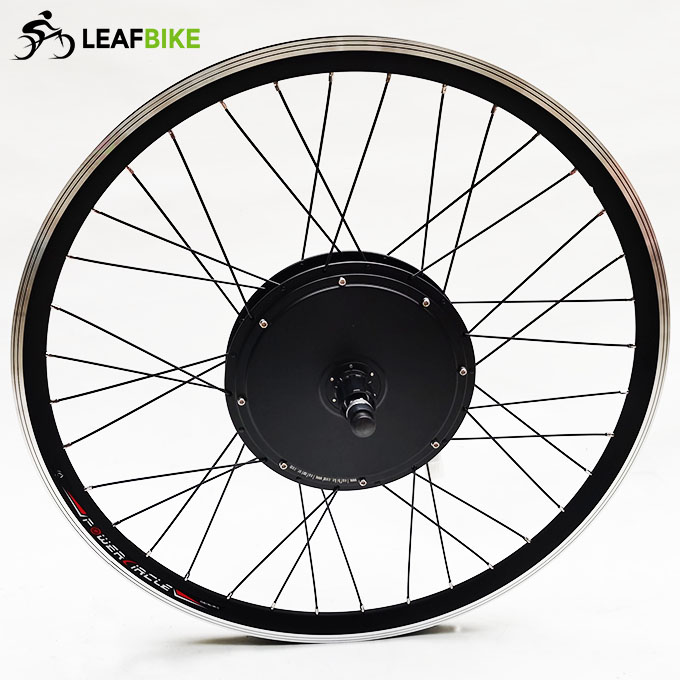

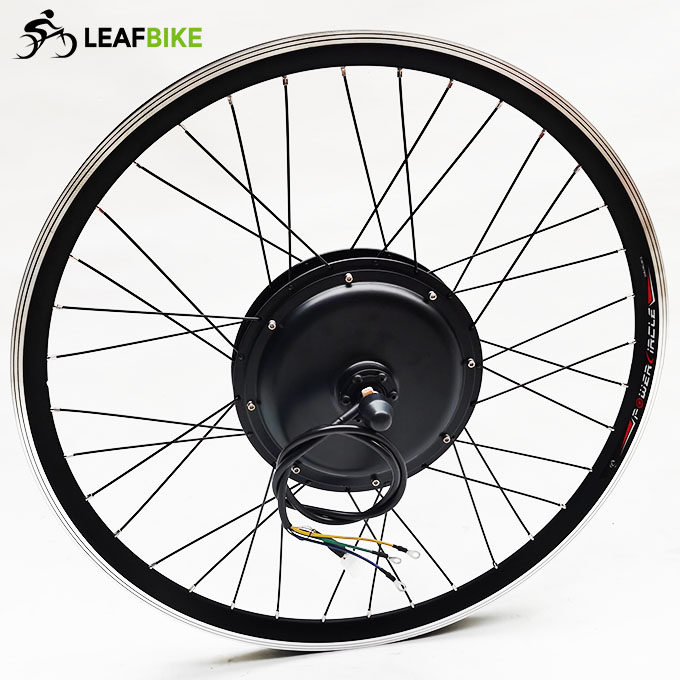

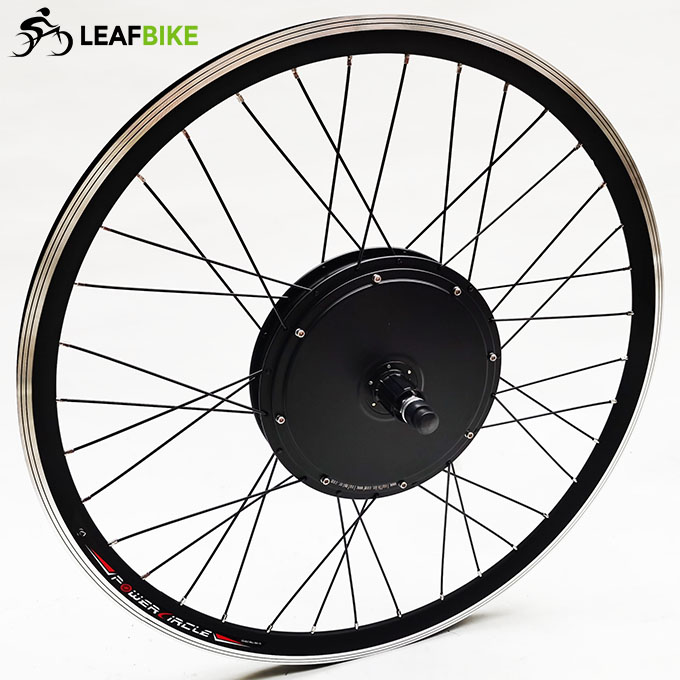

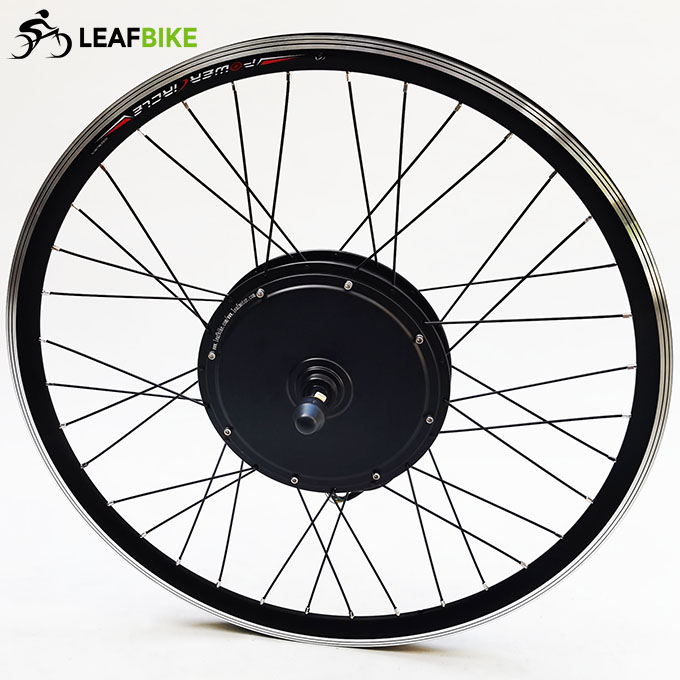

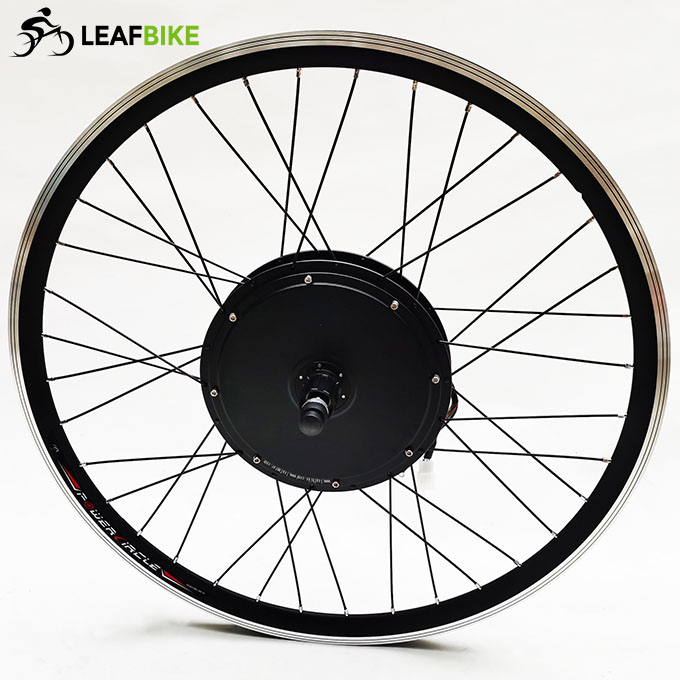

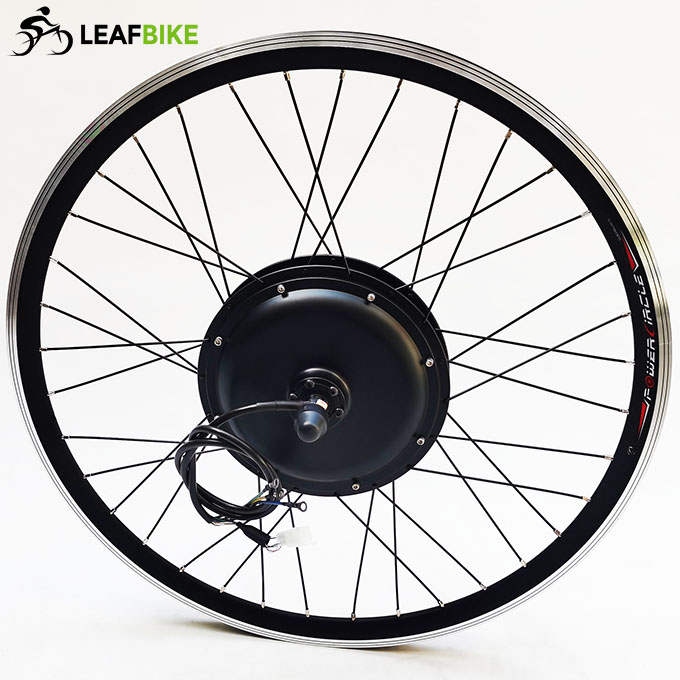

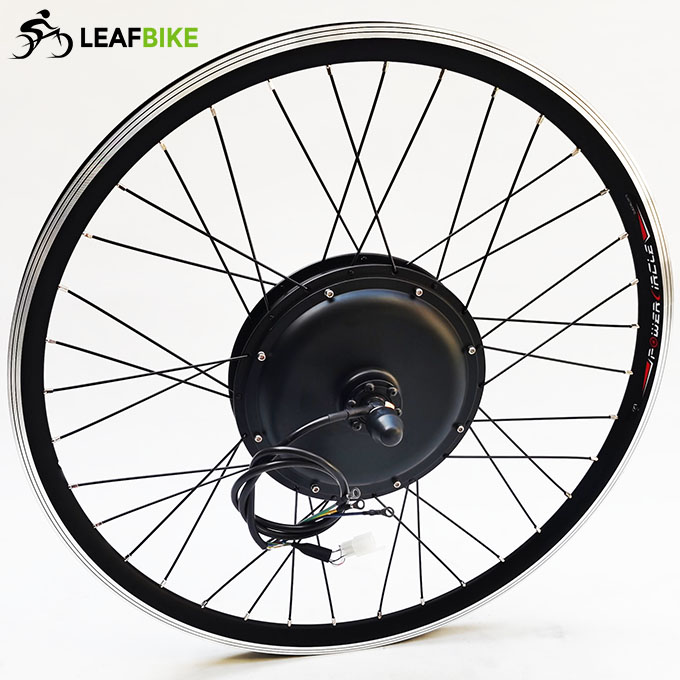

The 28 inch bike kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
This 28 inch bike conversion kit works with a 60V battery.
Main Features:

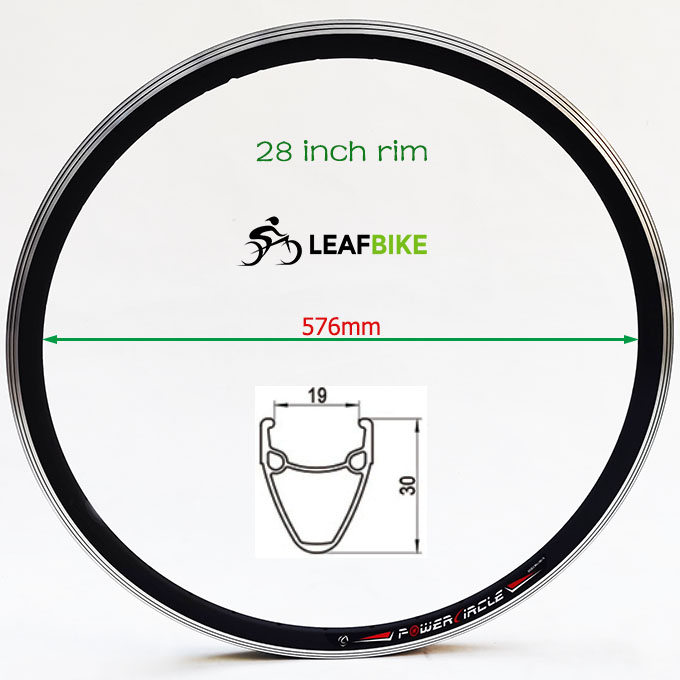

>. Rim: 28 inch double wall Alloy (Rim Fit For: 28 × 1 1/2" tire)
>. Spoke: 12 gauge / 184mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.
>. Engine : Bldc hub motor
>>. Voltage: 60V
>>. Power: 2000W
>>. Efficiency: 90.5%
>>. Max speed: 92.8 kmh -- 57.6 mph Default (Optional other speed: 40mph or 35mph,25mph,15mph...please leave message)
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>. Install: spacing of Min 135mm to Max 155mm fork
>>. Noise: < 60 db
>>. Surface: Black painted
>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 60 Volts
>>. Min. Voltage: DC 52.5 V
>>. Rated power: 2000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H
With LCD, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & Mid / forward -- "Right side / backward")
* Kmh / mph
* Throttle speeds ( 0 - 5 ) -- "0" is off throttle. "1" is the slowest. "5" is the fastest.
* Pedal assist speed ( 0 - 5 ) -- "0" is off pedal assist. "1 ~ 5" is the fastest. ONLY one max speed. If hope pedal with 5 kinds of max speeds, please choose the other controller of ours.
https://www.leafbike.com/products/diy-bike-conversion-kit/28-inch-60v-2000w-rear-hub-motor-kit-1467.html
* ...

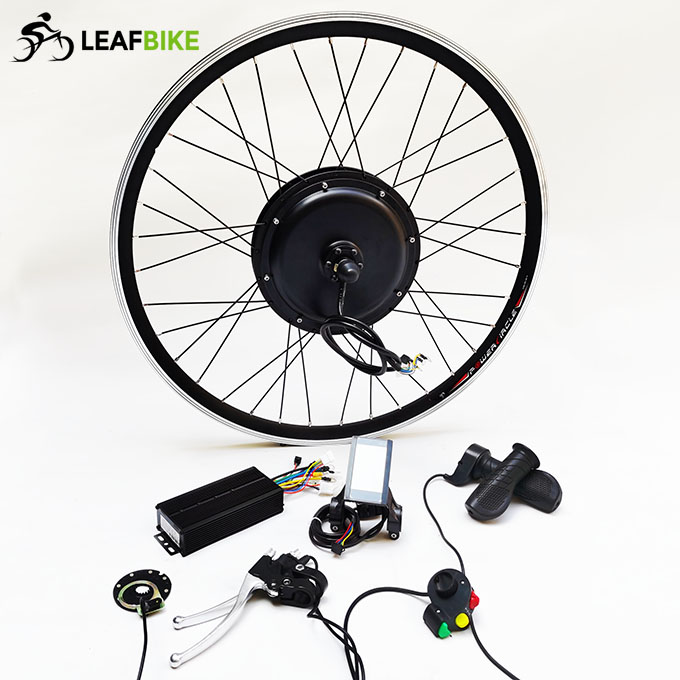

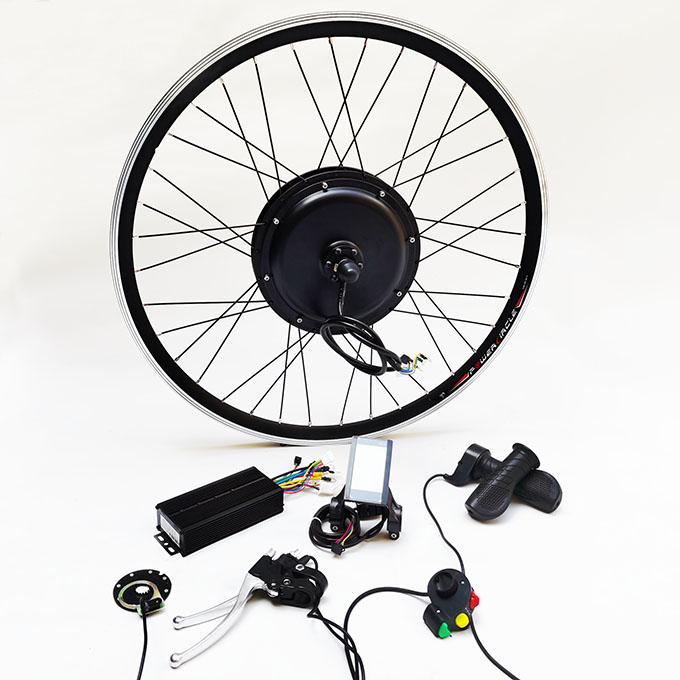

Package Content:

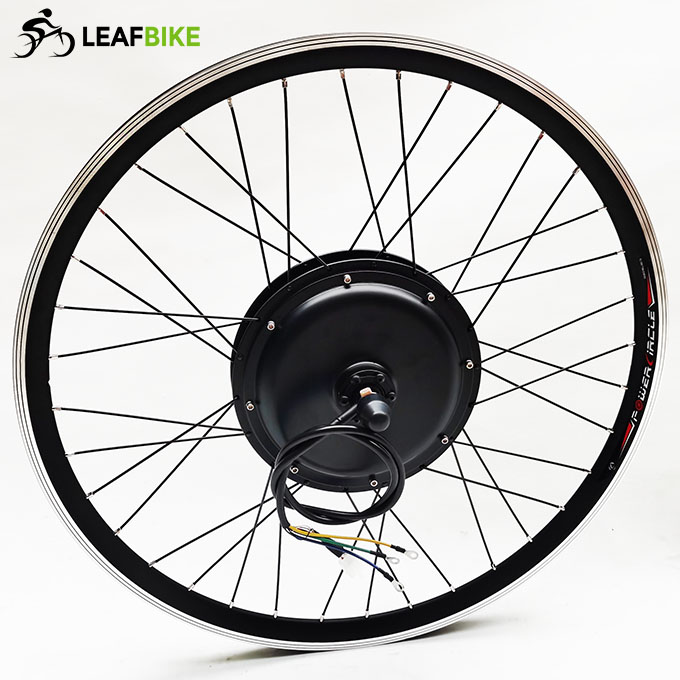

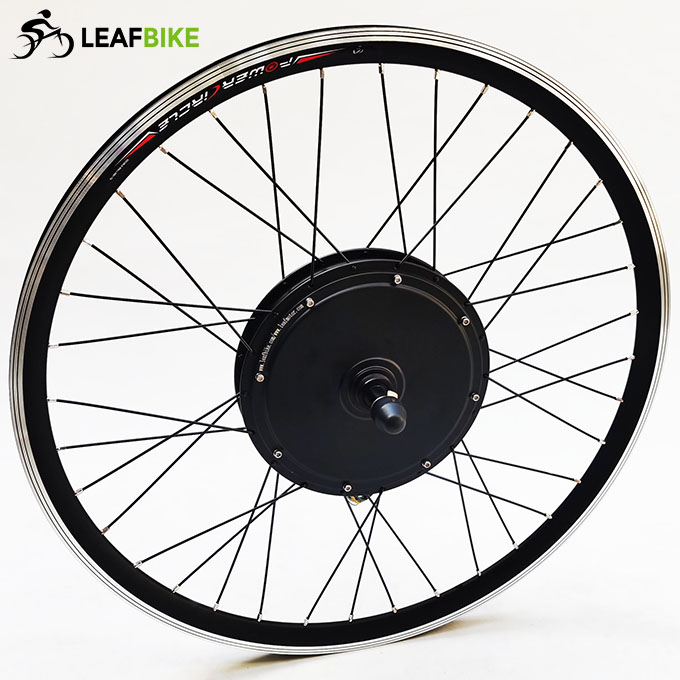

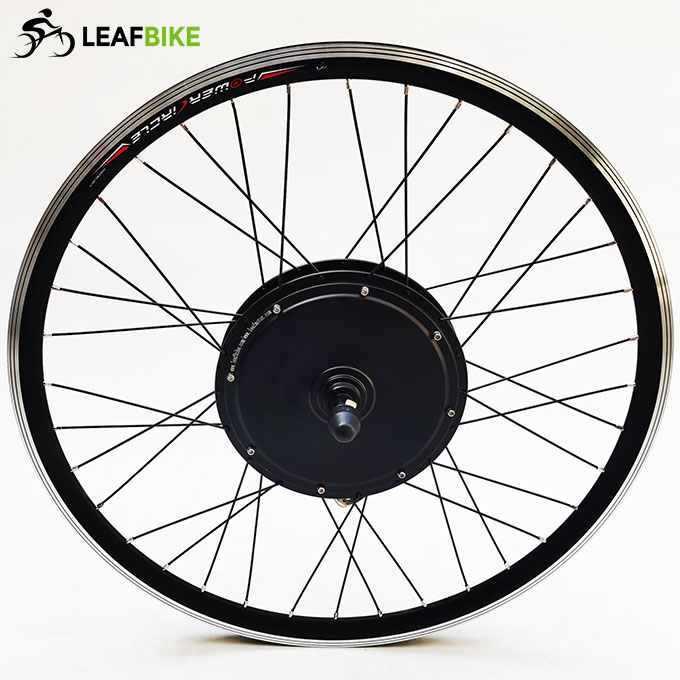

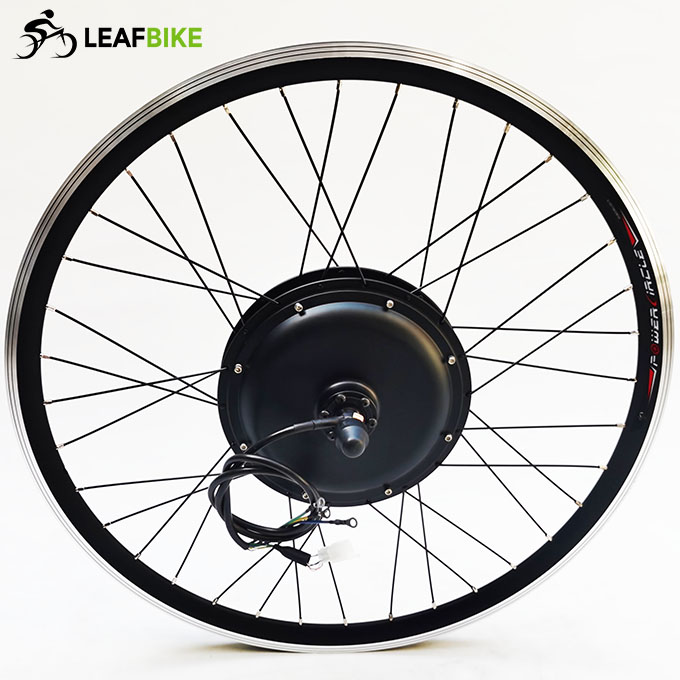

1 x 28 inch 60V 2000W rear hub motor wheel
1 x 60V 2000W 18-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise... ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm
Net Weight: 11.7 kg
Package Size: 66cm L x 66cm W x 25cm H
Package Type: Cardboard Box
Wire Diagram:
Rear Motor Drw.
Cassette Drw.
Why do you need this external brake sensor cable?
Brake sensor for either hydraulic or mechanical brakes where you would like to keep your existing brake levers.
For front or rear brakes. Very simple to install, very easy to use. Will allow you to cut off the electric system on your electric vehicle.
