27.5 inch 48V 1000W front hub motor kit

Name: 27.5 inch 48V 1000W front hub motor kit
Brand: Leaf Bike
SKU: LBCK275481000FNK
Price: 354 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK275481000FNK

$354.00 ~~$393.00~~

Maybe You Need These

Description

Please watch video for 27.5 inch 48V 1000W front hub motor 650b electric bike kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, max 32kmh, max 45kmh..

Share Video:

27.5 inch 48V 1000W front hub motor electric bike kit video

* This 27.5 inch 1000W hub motor kit combines the full E-bike technology: direct drive Brushless high torque Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

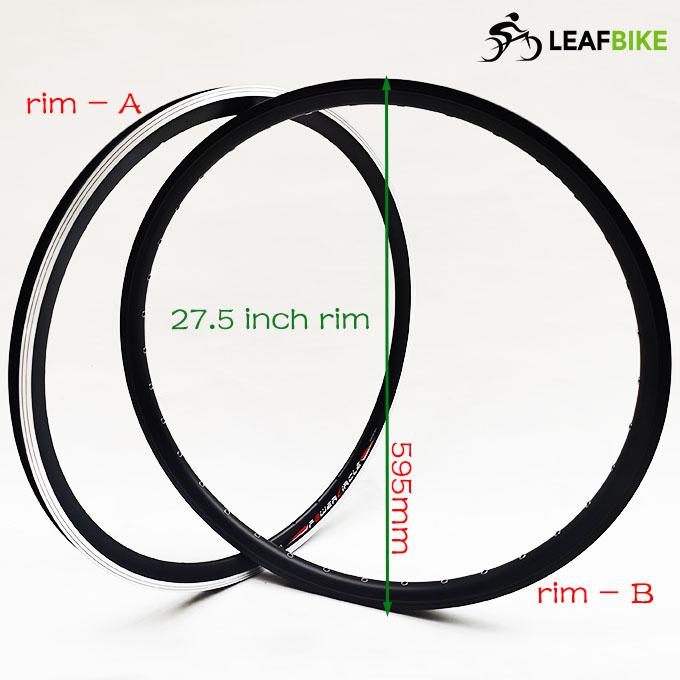

>. Rim A: 27.5 inch double wall Alloy (Rim Fit For: 27.5 × 1.5" / 1.75" tire)
>. Spoke: Silver 12 gauge / 165mm Length × 36 pcs

>. Rim B: 27.5 inch double wall Alloy (Rim Fit For: 27.5 × 1.95" / 2.0" ~ 2.5" tire)
>. Spoke: Black 12 gauge / 170mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V
>>. Power: 1000W
>>. Efficiency: 90.5%
>>. Max speed: 73.5 kmh -- 45.6 mph Default (Free customization other speeds: 35mph or 30mph, 25mph, 20mph, 15mph...please leave message)
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, LEFT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1000 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

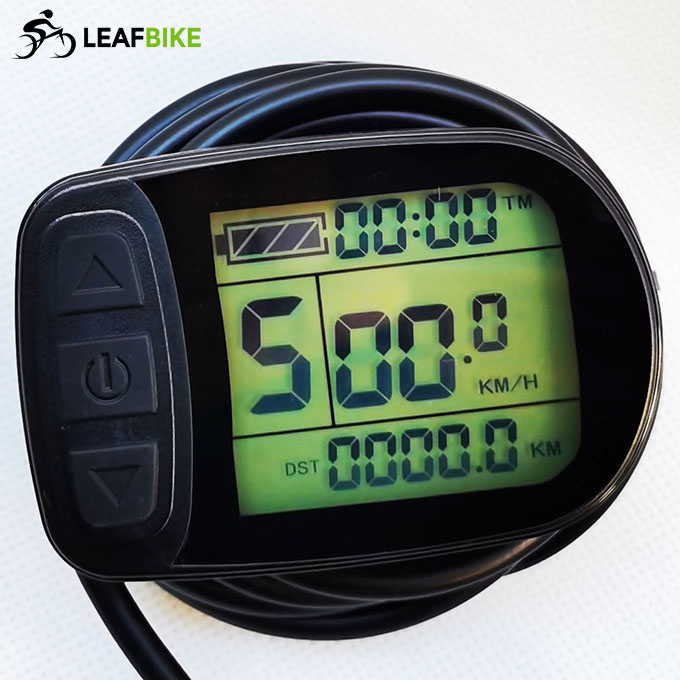

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Max speed ( 0 ~ 100 kmh / 60 mph )
* Speeds ( 0 - 5 ) - "0" is off. "1" is the slowest. "5" is the fastest.
* Battery gauge
* ...

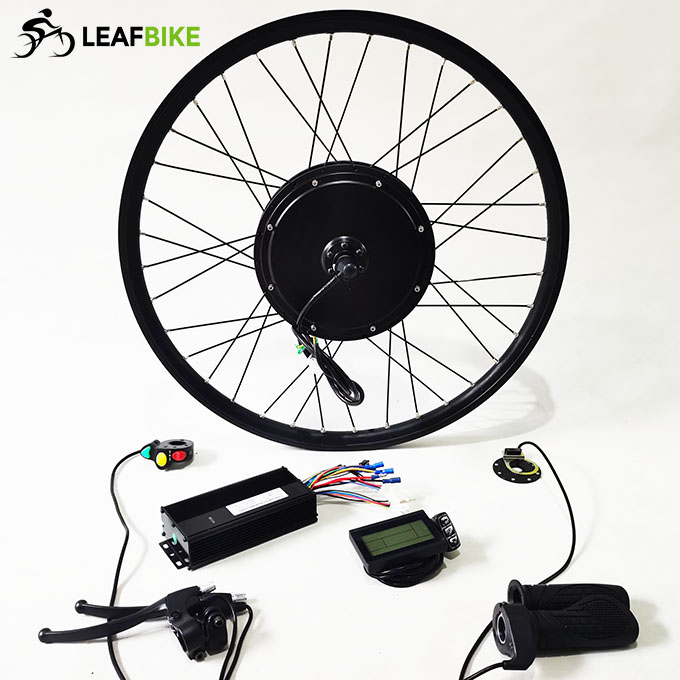

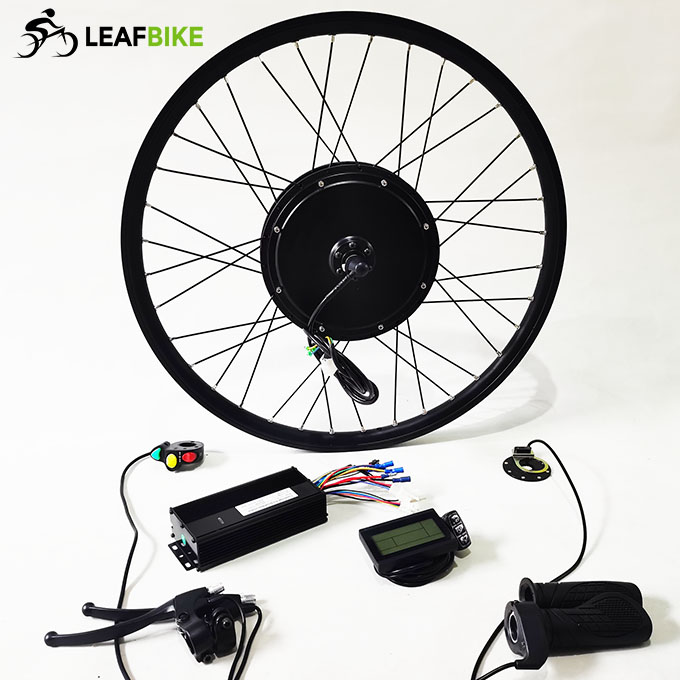

Package Content:

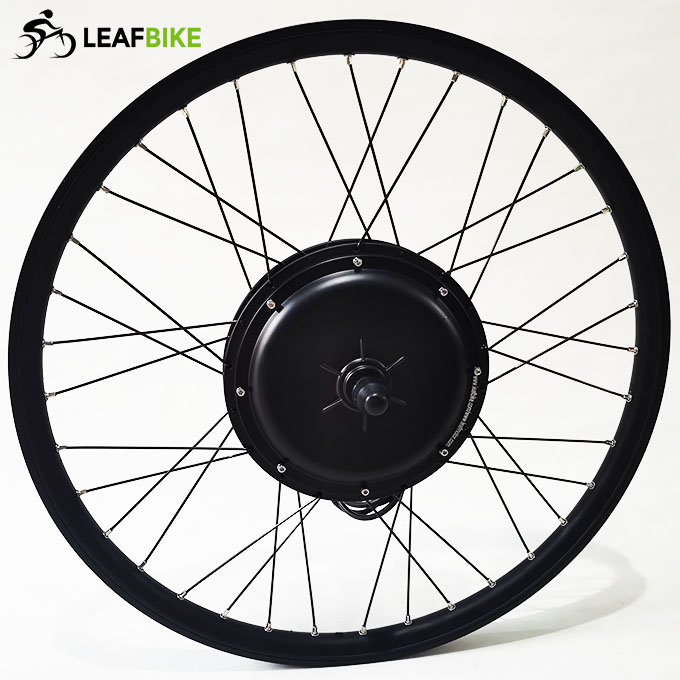

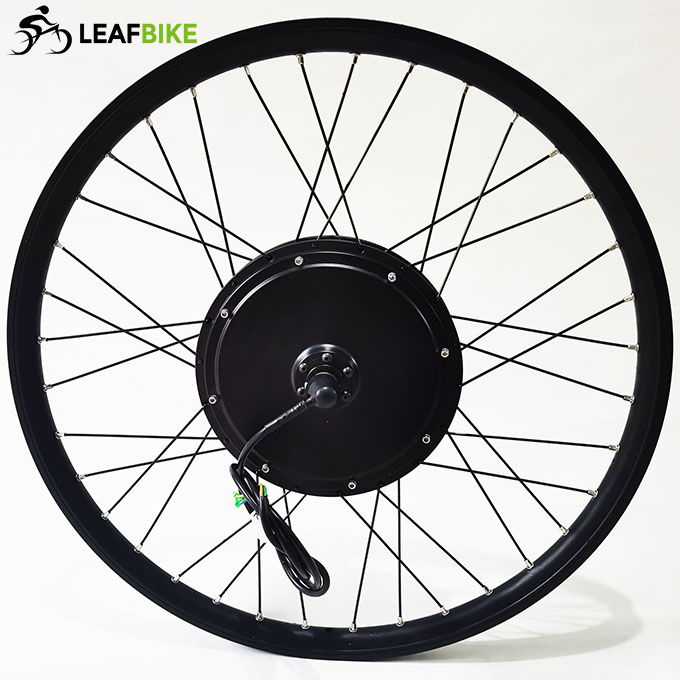

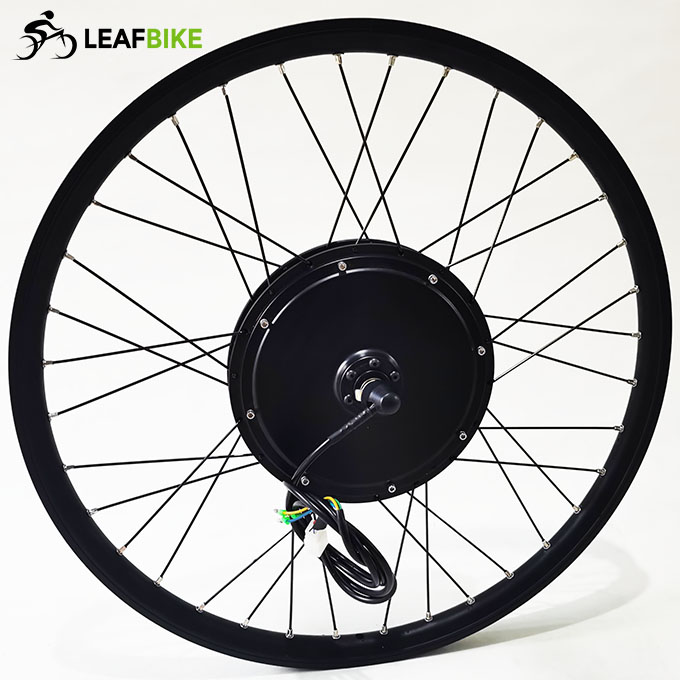

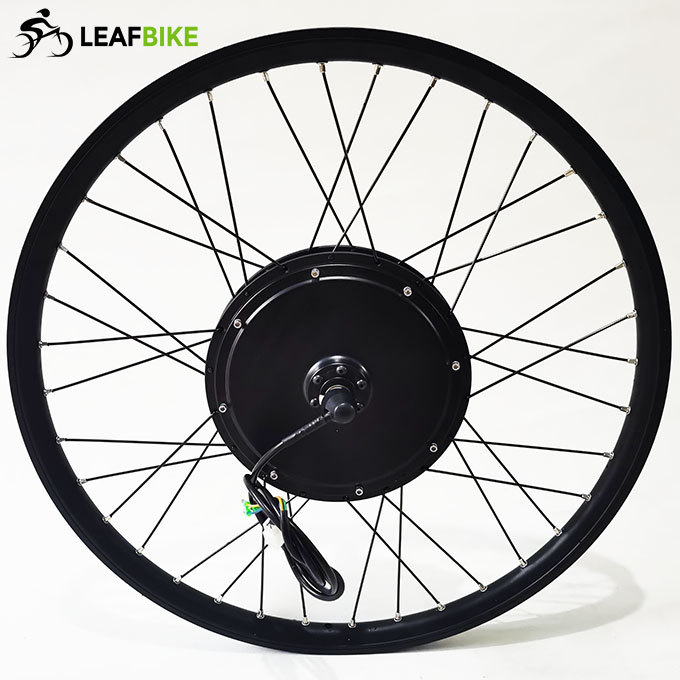

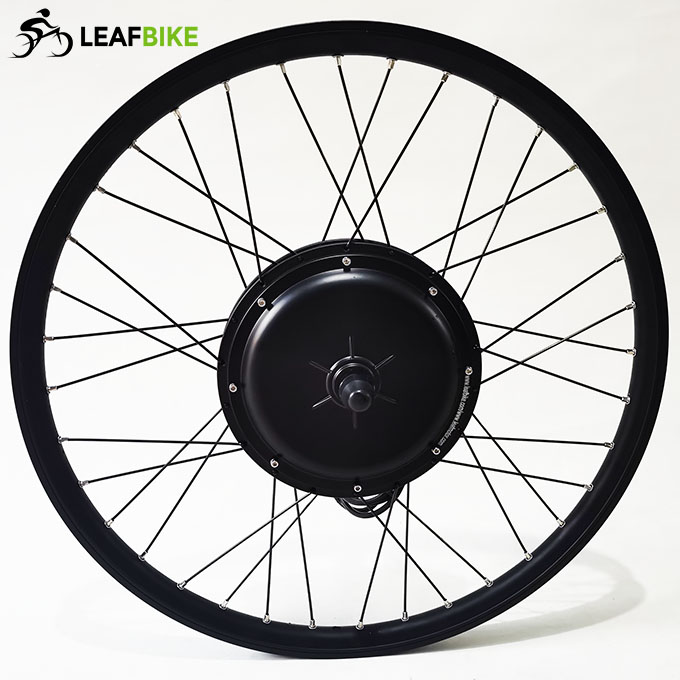

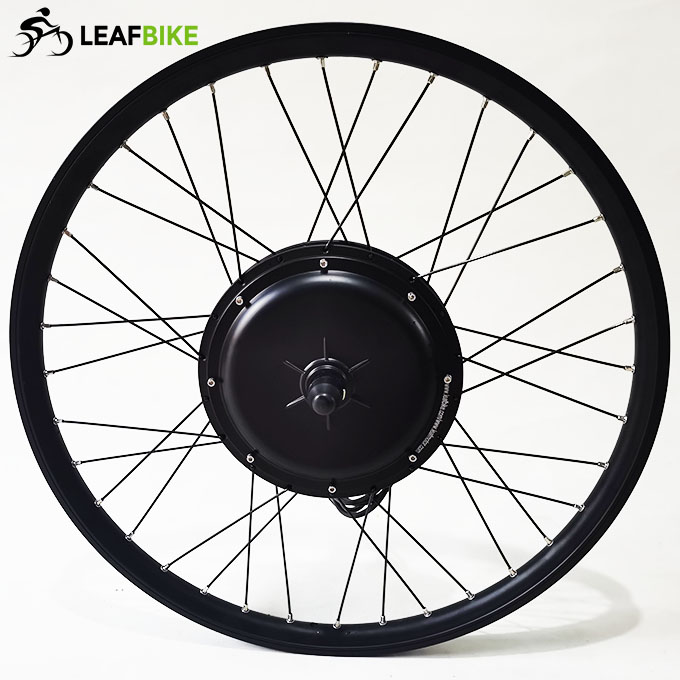

1 x 27.5 inch 48V 1000W front hub motor wheel
1 x 48V 1000W 12-MOSFET motor controller
1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise.. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 23.7 lbs
Package Size: 64cm L × 64cm W × 25cm H
Package Type: Cardboard Box

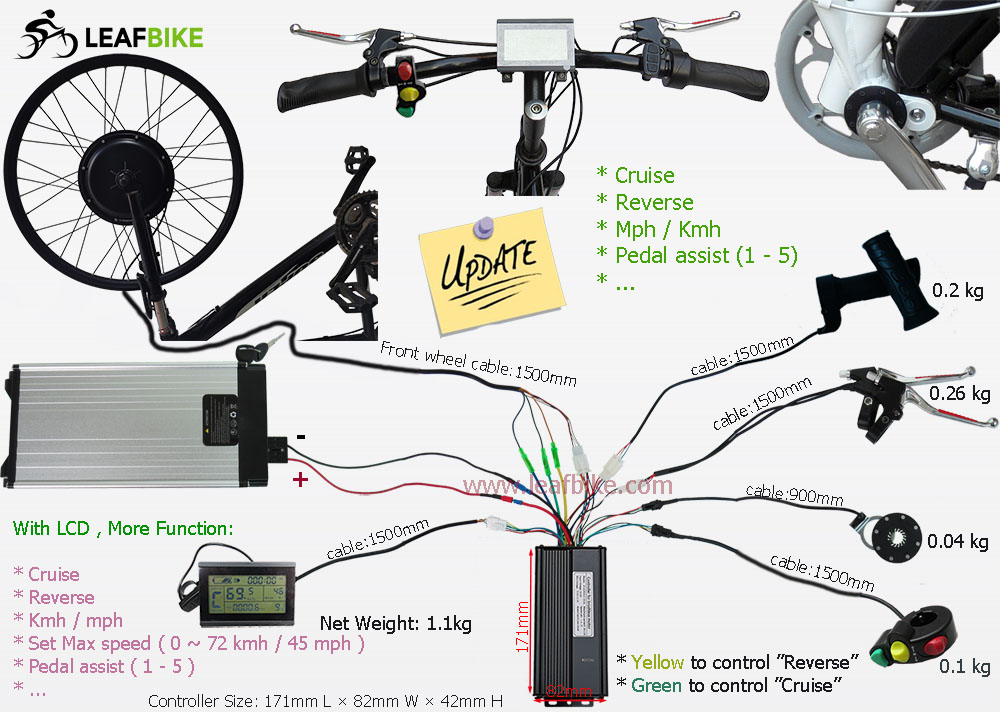

Wire Diagram:

Front Motor Drw.

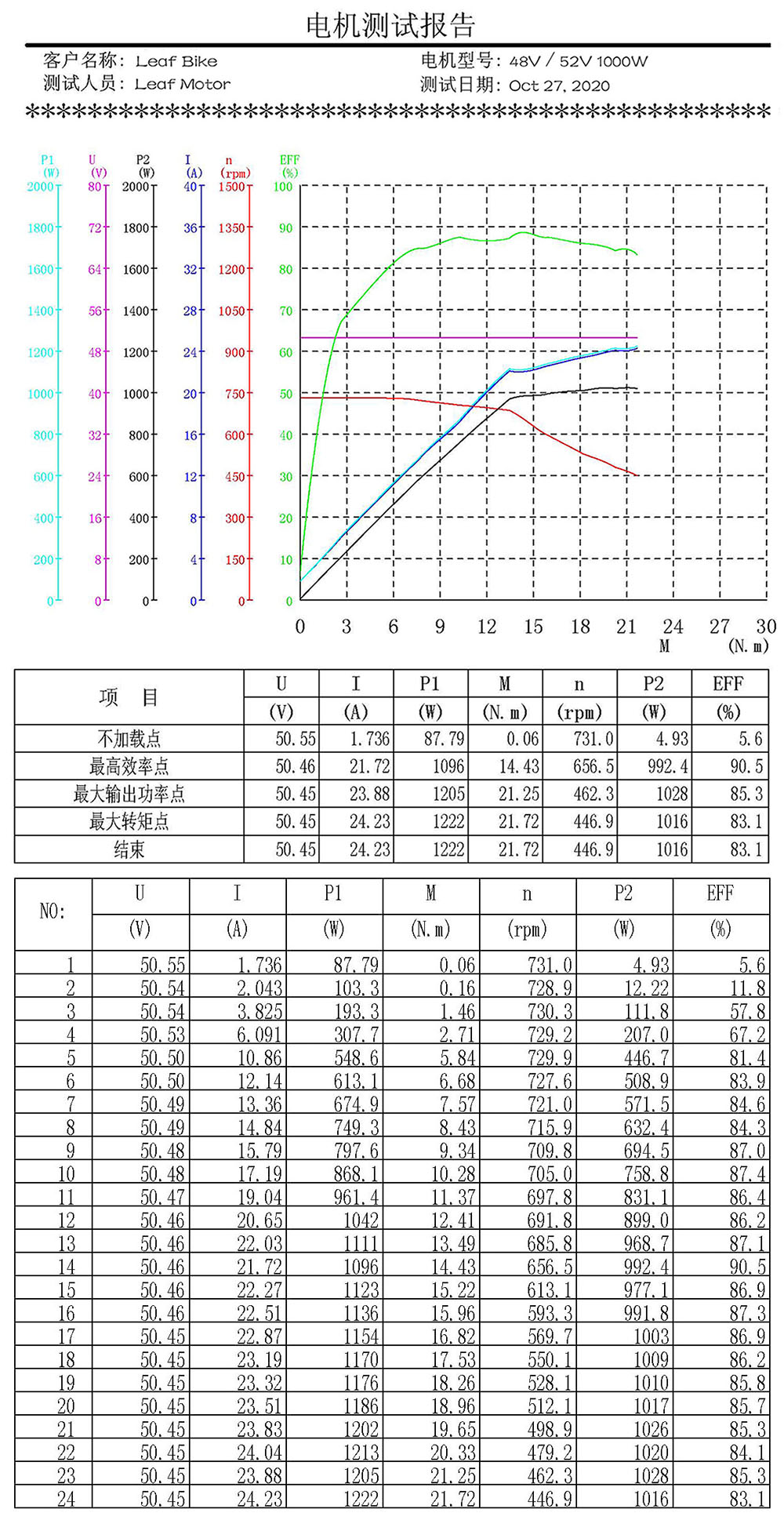

Performance Data:
