26 inch 36V 250W front hub motor - electric bike kit

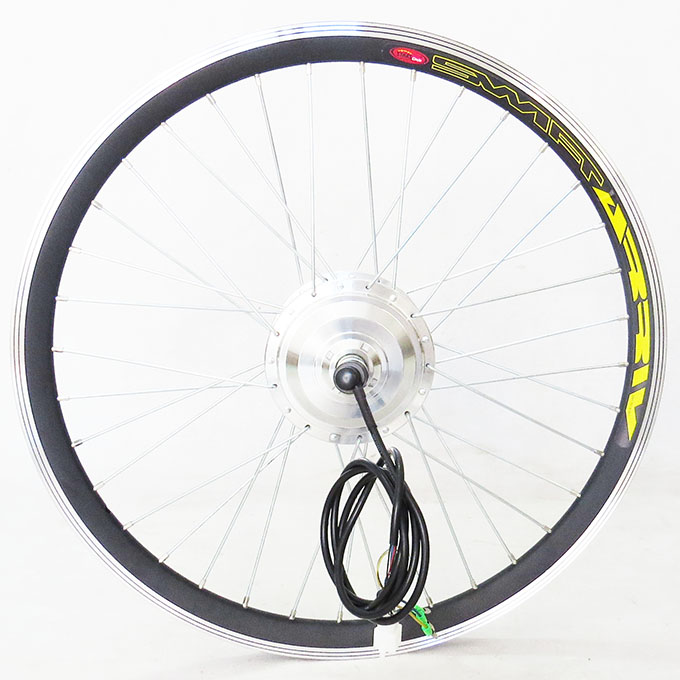

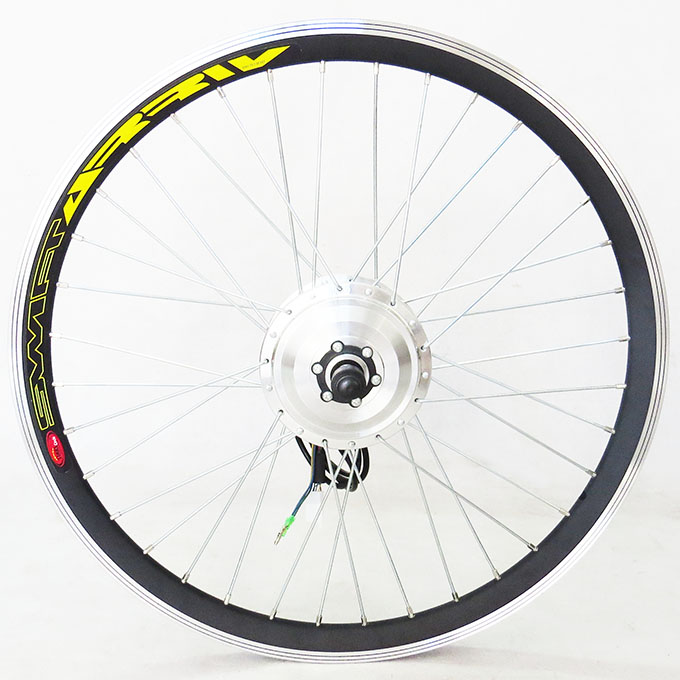

Name: 26 inch 36V 250W front hub motor - electric bike kit
Brand: Leaf Bike
SKU: LBCK2636250F
Price: 290 USD
Availability: InStock
Rating: 5 (2 reviews)

Item ID #LBCK2636250F

$290.00 ~~$370.00~~

Maybe You Need These

Description

Please watch video for 26 inch 36V 250W front hub motor electric bike conversion kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video:

26 inch front electric bike conversion kit

This 26 inch bike motor kit combines the full Electric bike technology: direct drive Brushless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:
>. Rim: 26 inch double wall Alloy (Rim Fit For: 26 × 1.5" / 1.75" tire)
>. Spoke: 12 gauge / 206 mm Length × 36 pcs
>. Engine: Bldc hub motor -- Brushless Geared
>>. Voltage: 36V
>>. Power: 250W
>>. Efficiency: 78%
>>. Max speed: 33.1 kmh -- 20.5 mph
>>. Mechanical brake: Disk or V
>>. Cable location: shaft end, RIGHT
>>. Cable length:150cm / 60"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Bright silver

>. Driver: brushless controller
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 250 Watts
>>. Casing material: aluminium
>>. Maximum Current: 16 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L × 61 mm W × 35 mm H

LCD-003 , More Function:
* Cruise
* ~~Reverse~~ (can't)
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

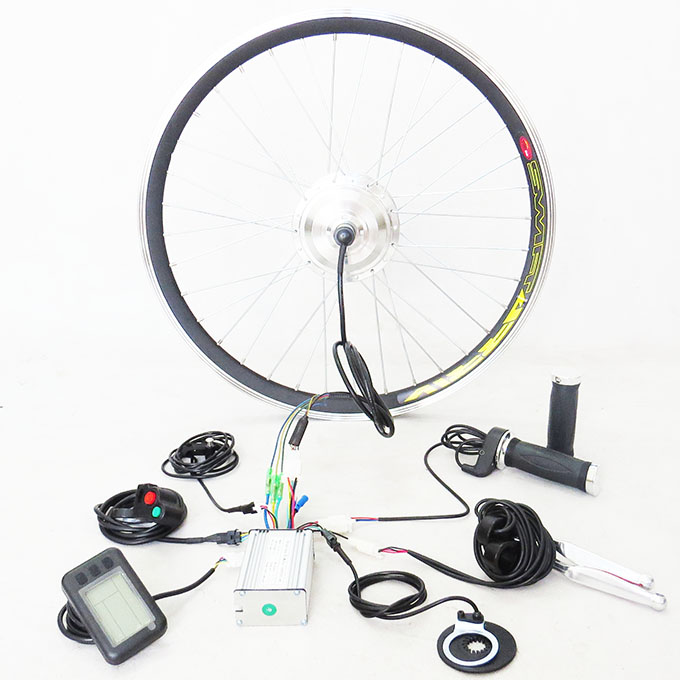

Package Content:
1 x 26 inch 36V 250W front bldc hub motor wheel
1 x 36V 250W 6-MOSFET motor controller
1 x LCD-003
1 x Twist throttle
1 x Brake lever
1 x Three button switches
1 x Pedal assist

Net Weight: 5.8 kg / 12.7 lbs
Package Size: 62cm L × 62cm W × 25cm H
Package Type: Cardboard Box

Wire Diagram:

36v 250w front geared brushless hub motor kit

250W Front Drw.

Performance Data:
