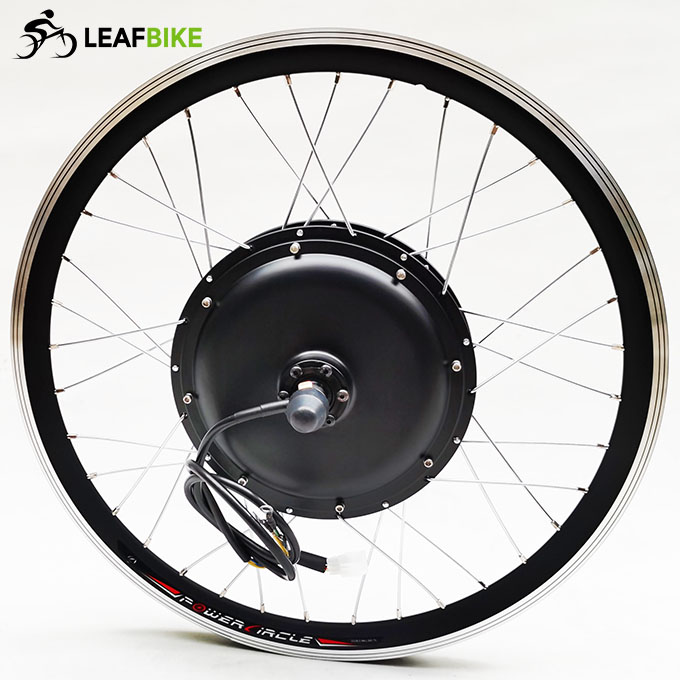

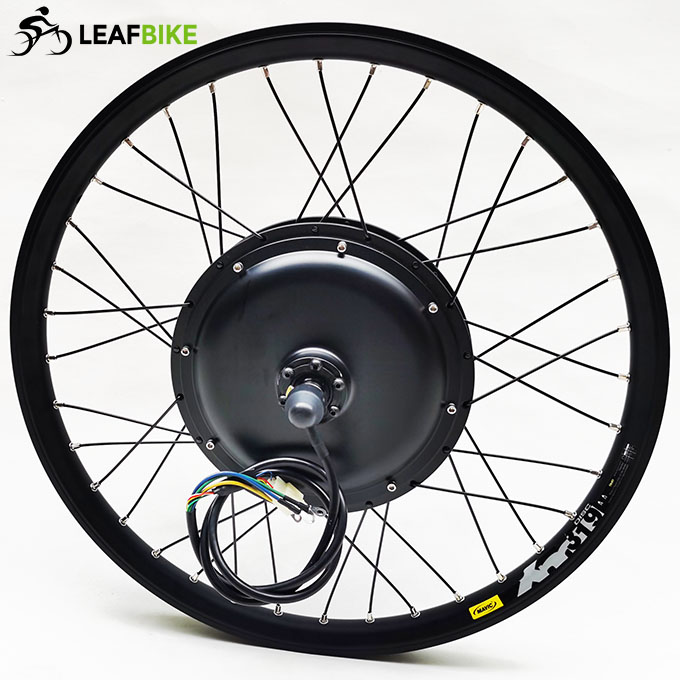

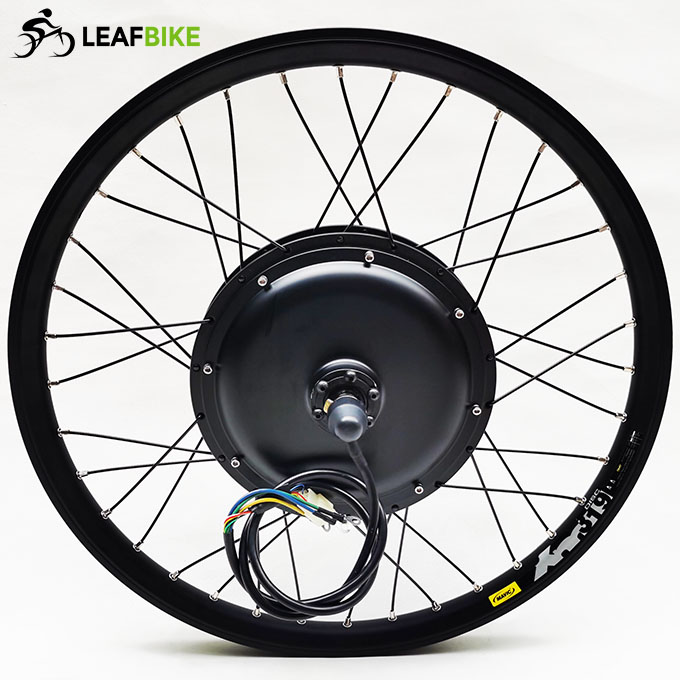

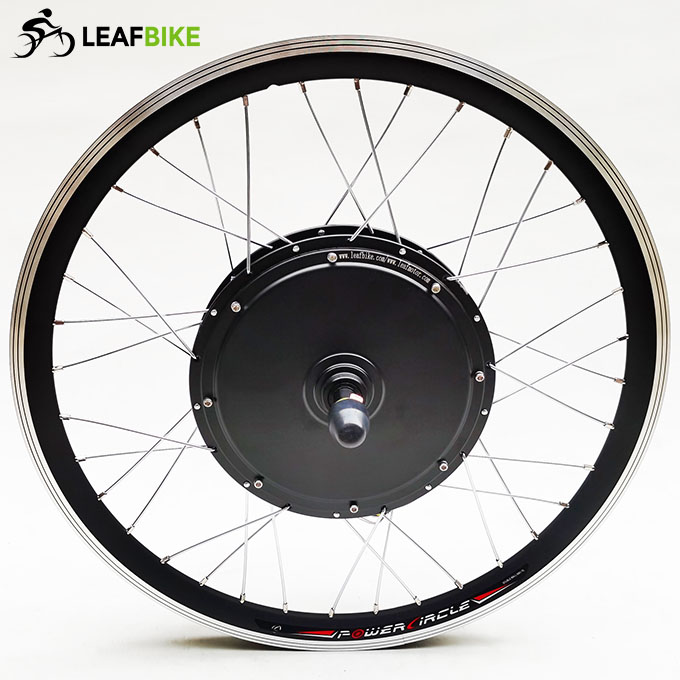

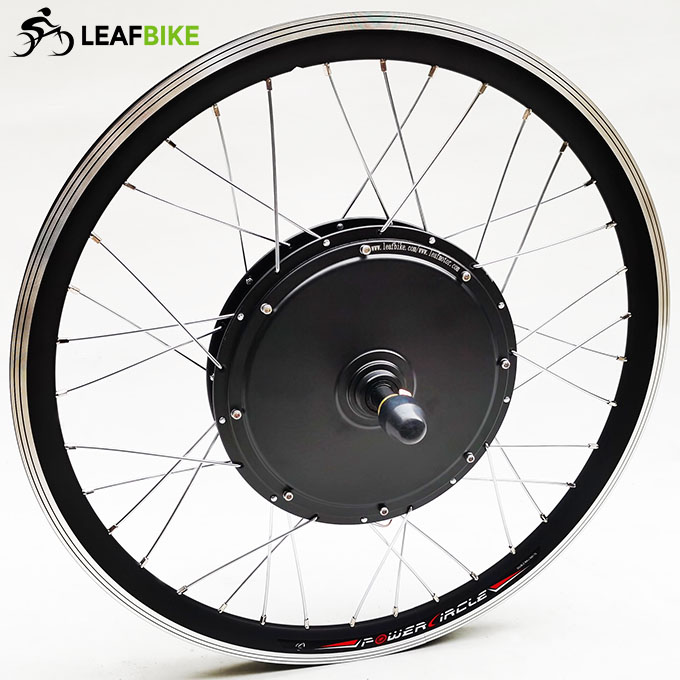

24 inch 48V / 52V 1500W rear hub motor - bike conversion kit

Item ID #LBCK24481500RN
$440.00 $478.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
* The 24 inch 1500w electric bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

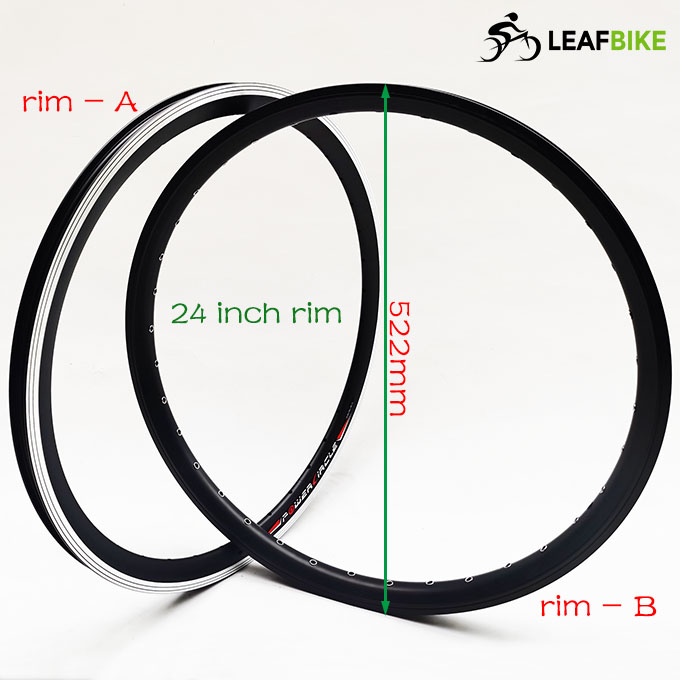

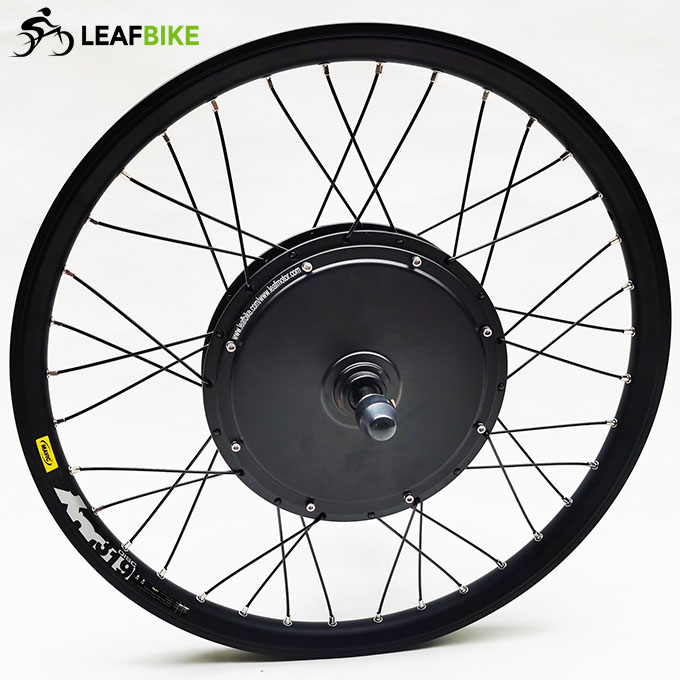

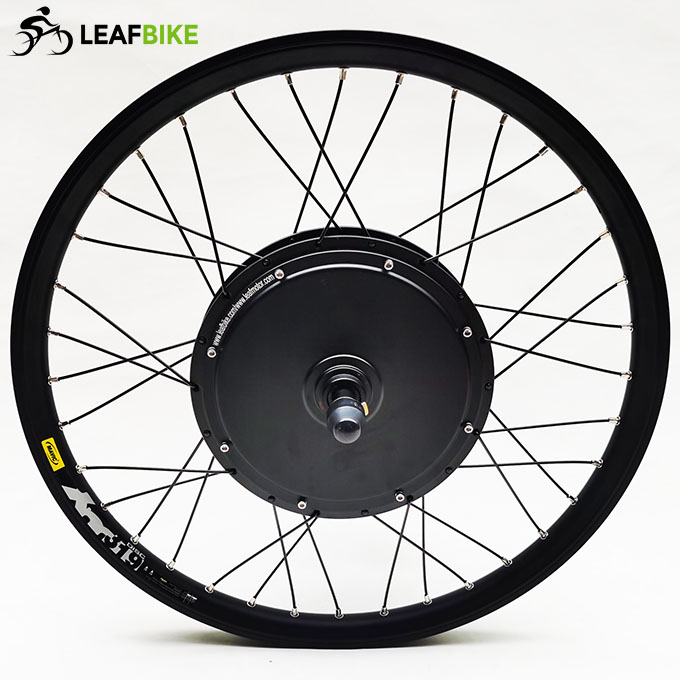

>. Rim: 24 inch double wall Alloy (Rim Fit For: 24 × 1.5" / 1.75" / 1.95" tire)
If the width of your tire / tyre is 2.1, 2.5 inch…(bigger than 1.95 inch)
Please note tire/tyre size when you place an order so that we can send a wider rim & fit for your wider tire/tyre.

>. Spoke: 12 gauge / 131mm Length × 36 pcs
>. Default: Silver spokes
>. Optional: Black spokes -- Please leave message.

>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 69.5 kmh -- 43.1mph Default (Optional other speed: 35mph or 25mph,15mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Freewheel / Cassette: space for single speed...6 speed or max 7 speed Default: Fit for Screw on Sprocket (If install Cassette Sprocket,please leave message)
>>.  Cable length:100cm / 40"  -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of Min 135mm to Max 155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 40 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

LCD-003 , More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Regen brake -- Red button Control ("Up / Regen ON -- Down / Regen off ")
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph ) --  If set be "32", Max speed will be 20mph / 32kmh
* Pedal assist ( 0 - 5 ) -- "0" is off PAS. "1-5" is on PAS. "5" is the strongest.
* ...

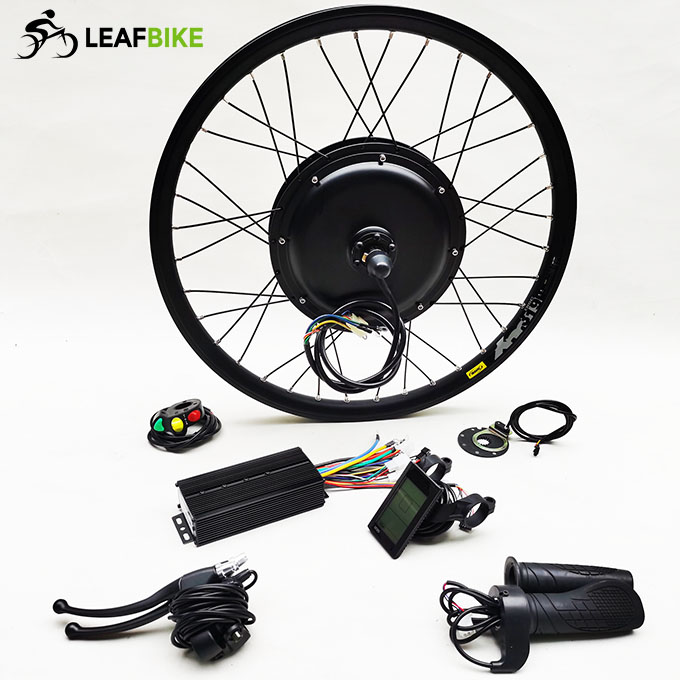

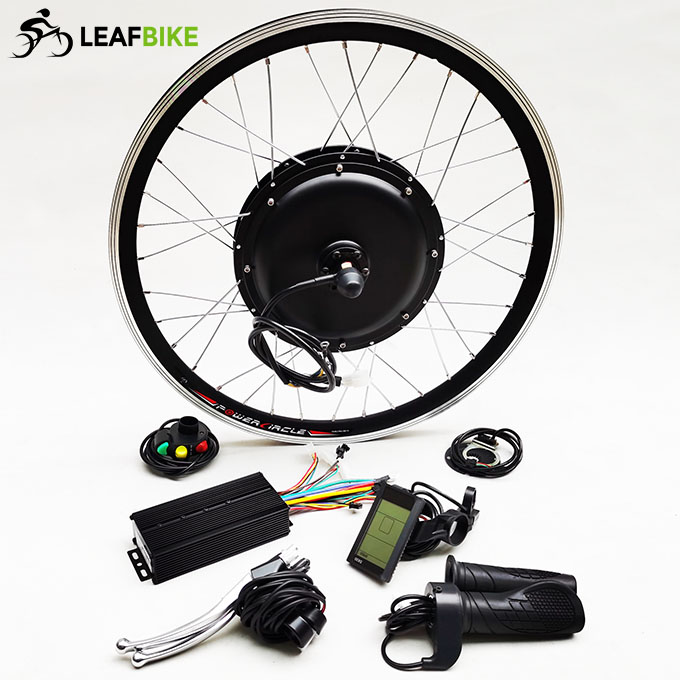

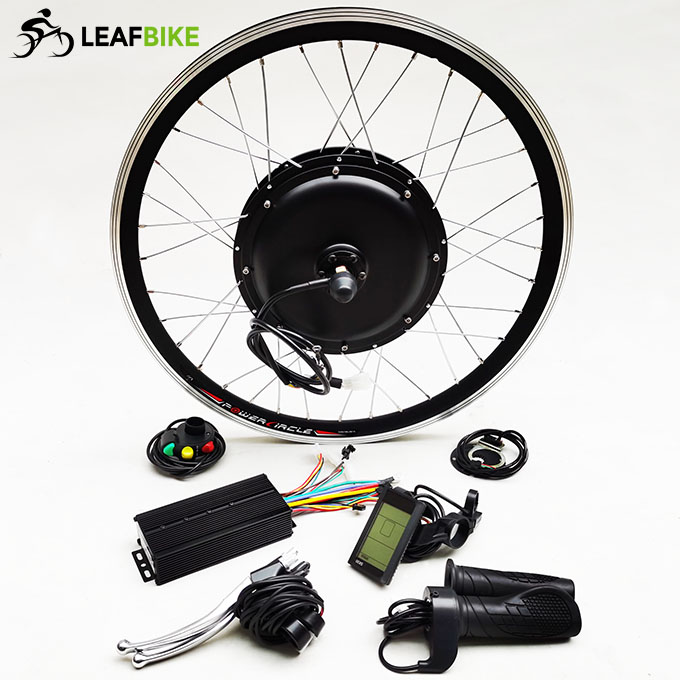

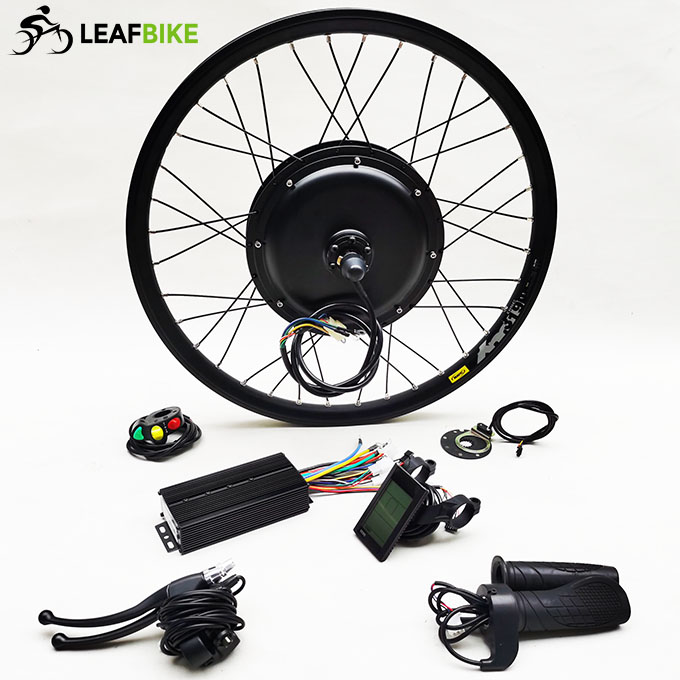

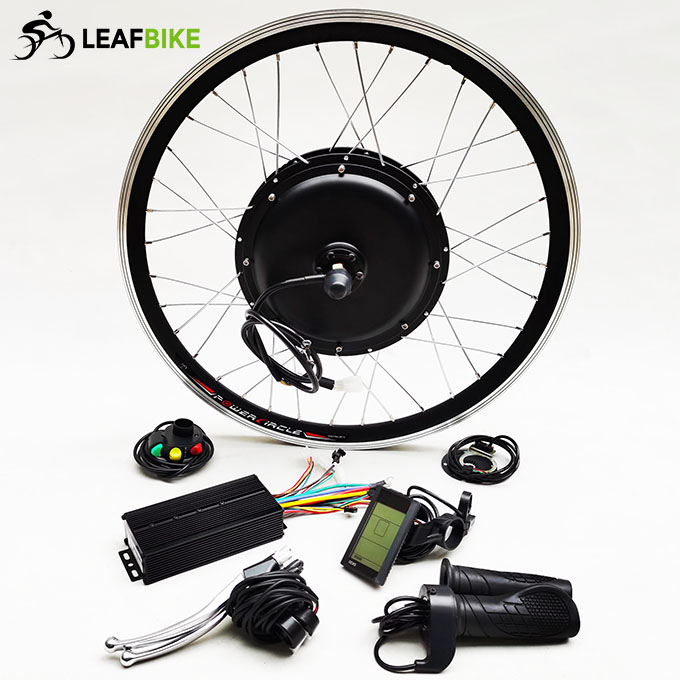

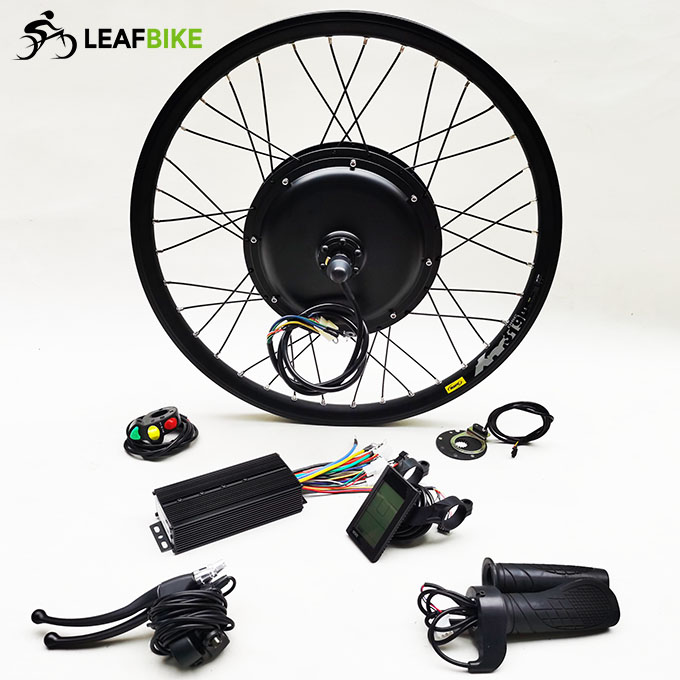

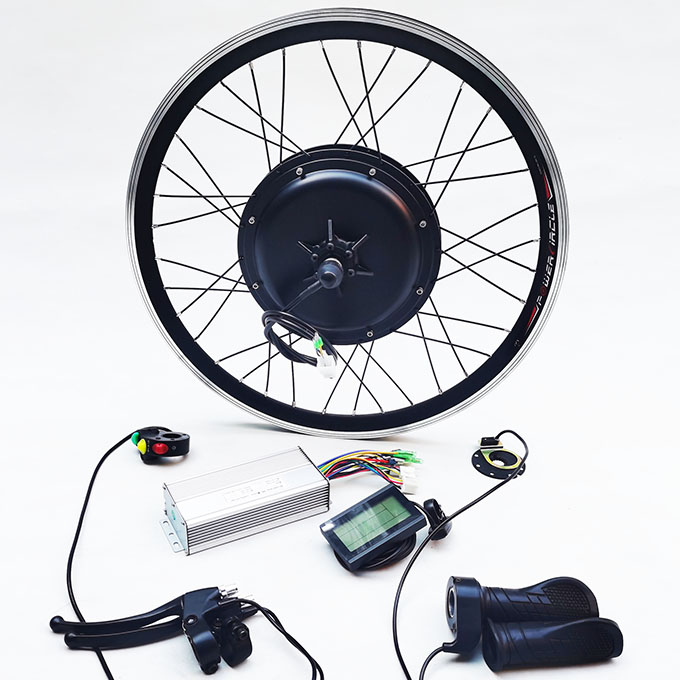

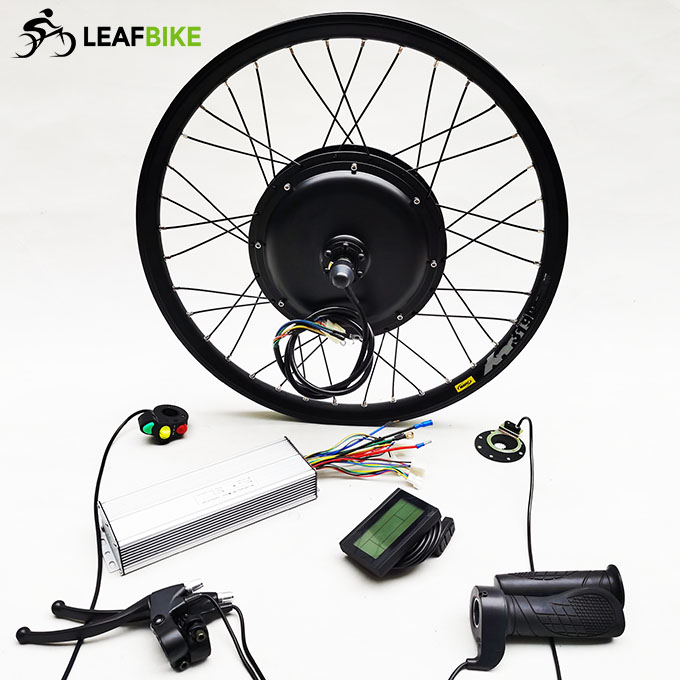

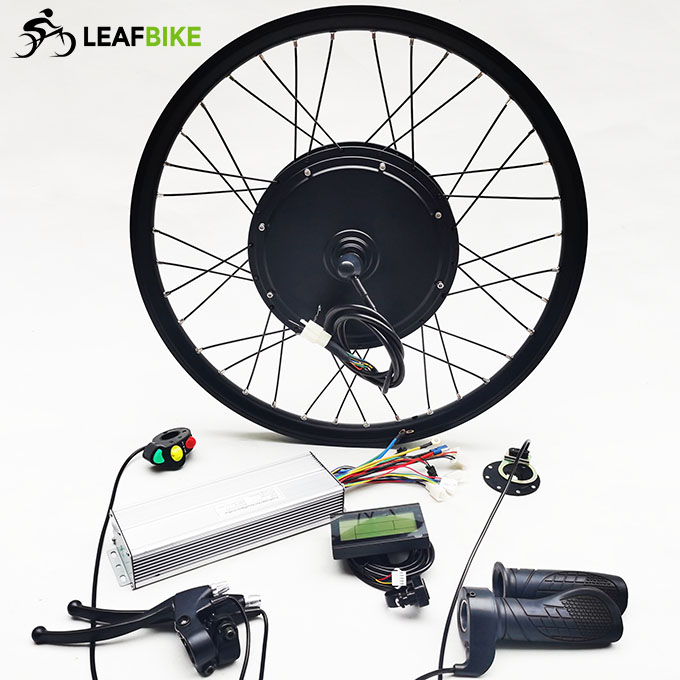

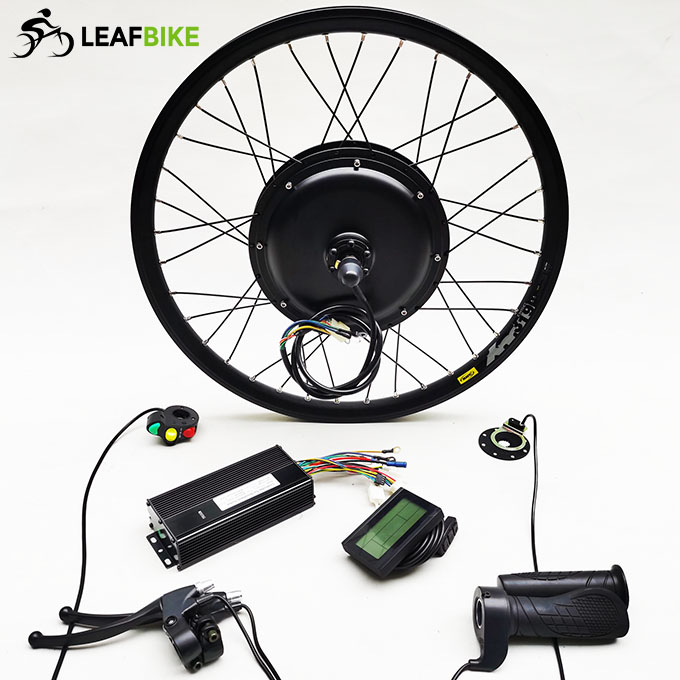

Package Content:

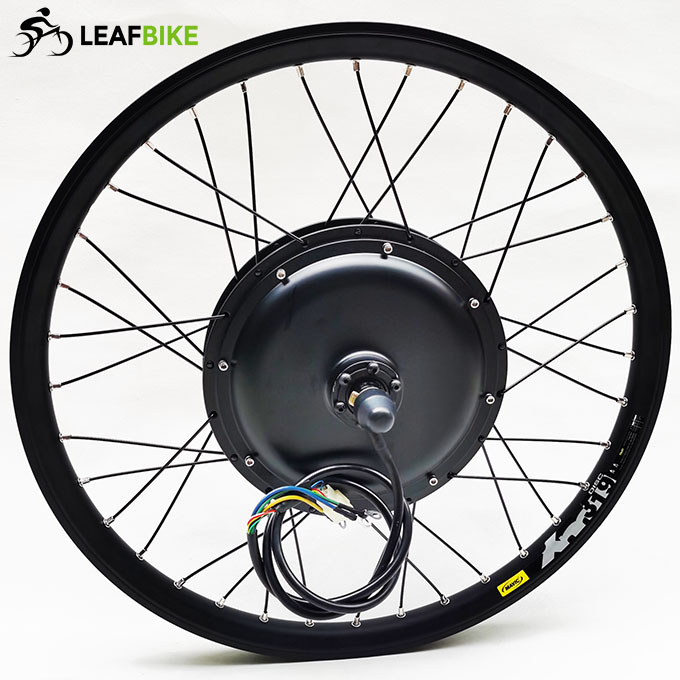

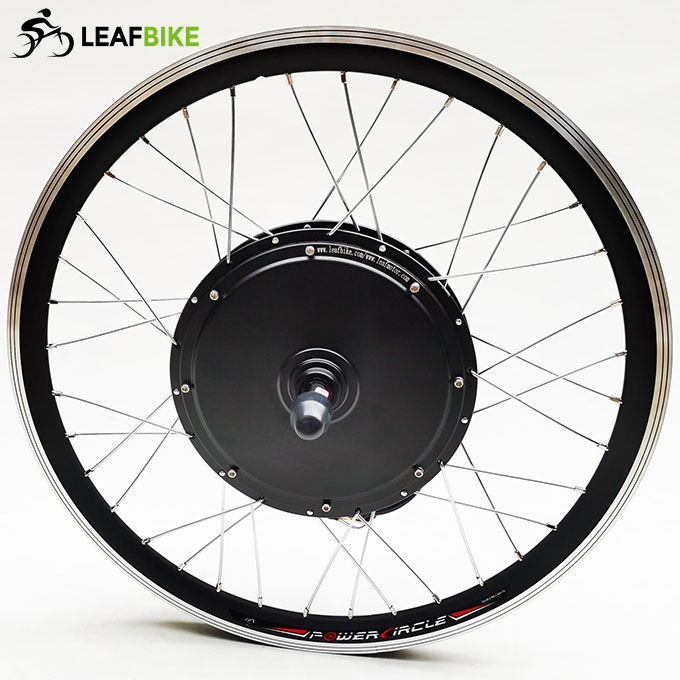

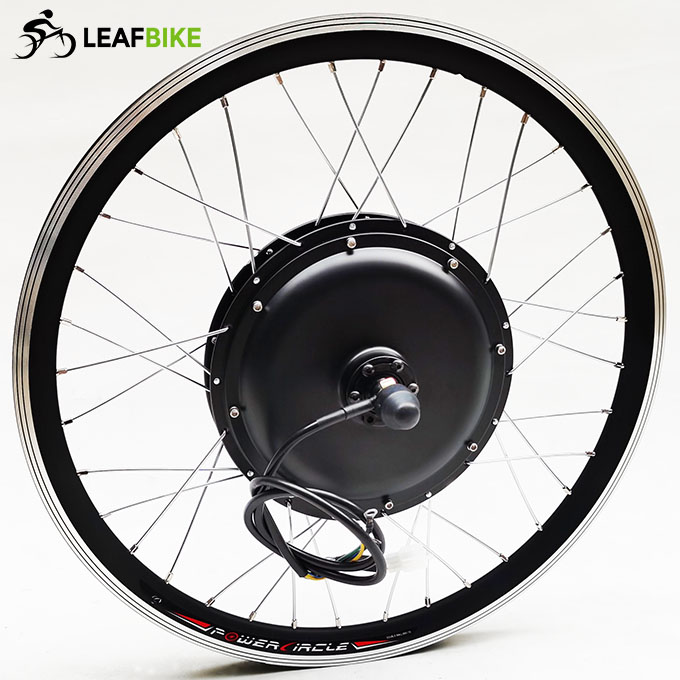

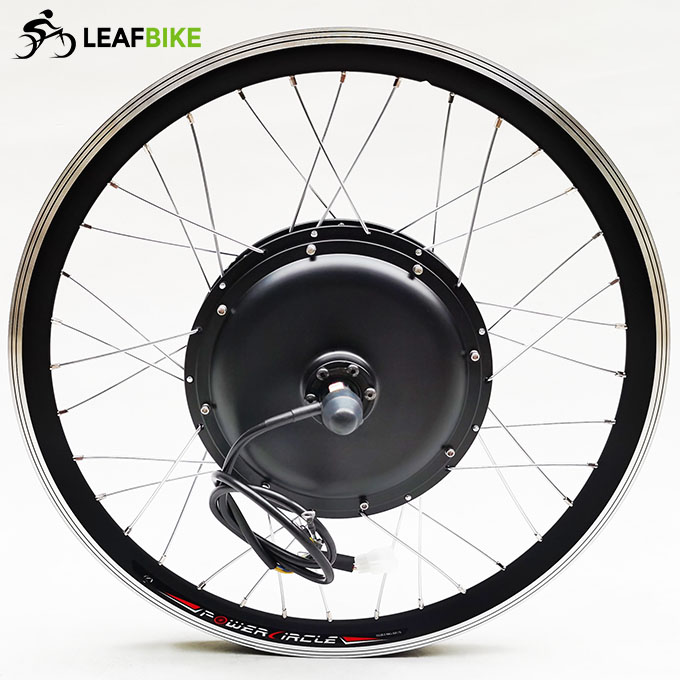

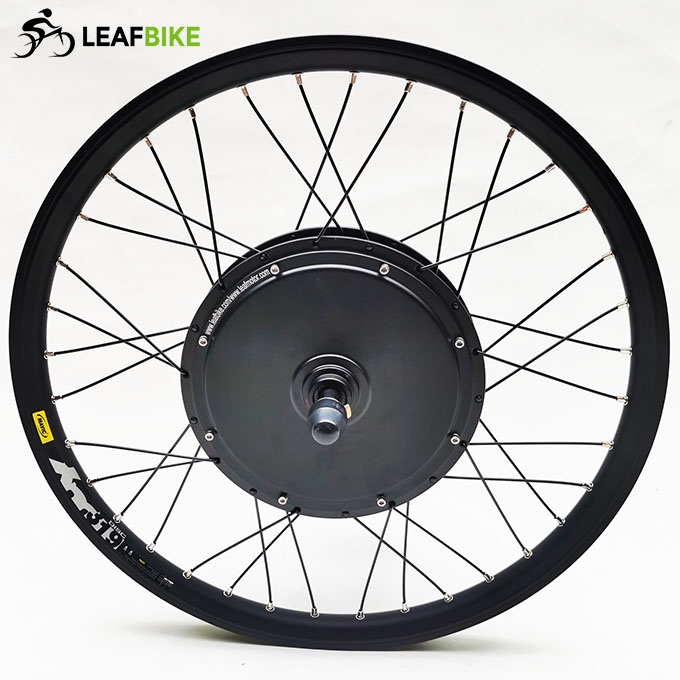

1 x 24 inch 48V / 52V 1500W rear hub motor wheel
1 x 48V / 52V 1500W 12-MOSFET motor controller
1 x LCD-003
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, regen brake, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 1500mm

Net Weight: 11.2 kg   /  24.6 lbs
Package Size: 58cm L x 24cm W x 58cm H  /  9.4"  L x " W x 22.8" H
Package Type: Cardboard Box
Share Video:
24 inch 48V 1500W rear hub motor - bike conversion kit

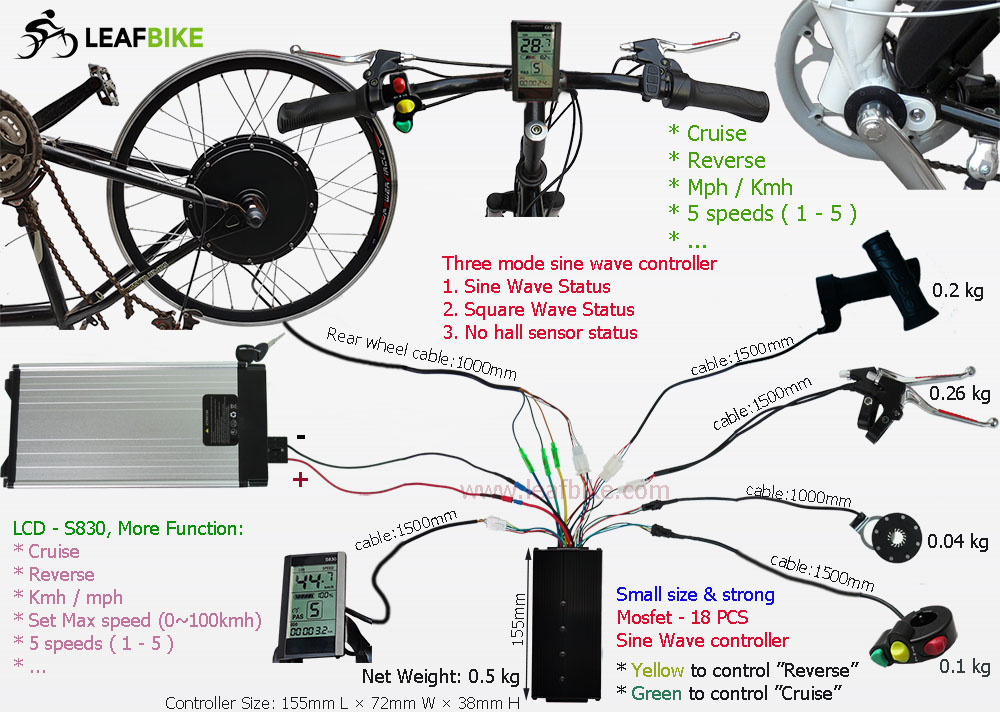

Wire Diagram:
rear electric hub motor - bike conversion kit - wire diagram
1500w rear Motor Drw.
1500w-rear-electric-bike-motor-drawing
Performance Data:
48v-1500w-hub-motor-curve

Recommended Products: Hydraulic Mechanical Brake Cut Off Sensor Switch Cable
Why do you need this external brake sensor cable?
Brake sensor for either hydraulic or mechanical brakes where you would like to keep your existing brake levers.
For front or rear brakes. Very simple to install, very easy to use. Will allow you to cut off the electric system on your electric vehicle.
Hydraulic Mechanical Brake Cut Off Sensor Switch Cable
