24 inch 36V 750W front hub motor - bike conversion kit

Item ID #LBCK2436750FN
$382.00 $478.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
This 24 inch hub motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

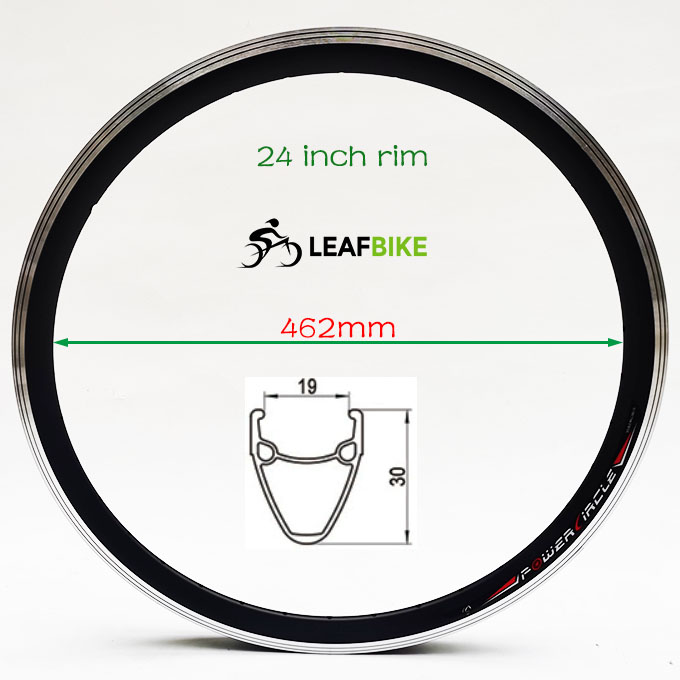

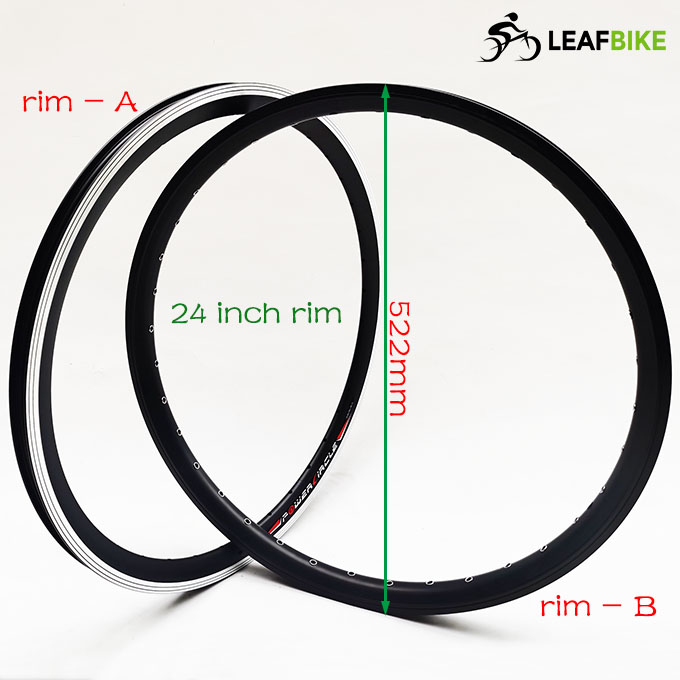

>. Rim: 24 / 507 double wall Alloy (Rim Fit For: 24 × 1.5" / 1.75" / 1.95" tire)
>. Spoke: 12 gauge / 131mm Length × 36 pcs
>. Default: Silver spokes
>. Optional: Black spokes -- Please leave message.

>. Engine: Bldc hub motor
>>. Voltage: 36V
>>. Power: 750W
>>. Efficiency: 87.5%
>>. Max speed: 65.5 kmh -- 40.6 mph
>>. Mechanical brake: Disk or  V
>>. Cable location: shaft end , LEFT
>>. Cable length:160cm / 63"
>>. Install: spacing of 100mm fork
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>. Rated power: 750 Watts
>>. Casing material: aluminium
>>. Maximum Current: 26 A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

LCD-003 , More Function:
* Cruise
* Forward & Rackward (Optional)
* Regen brake
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* ...

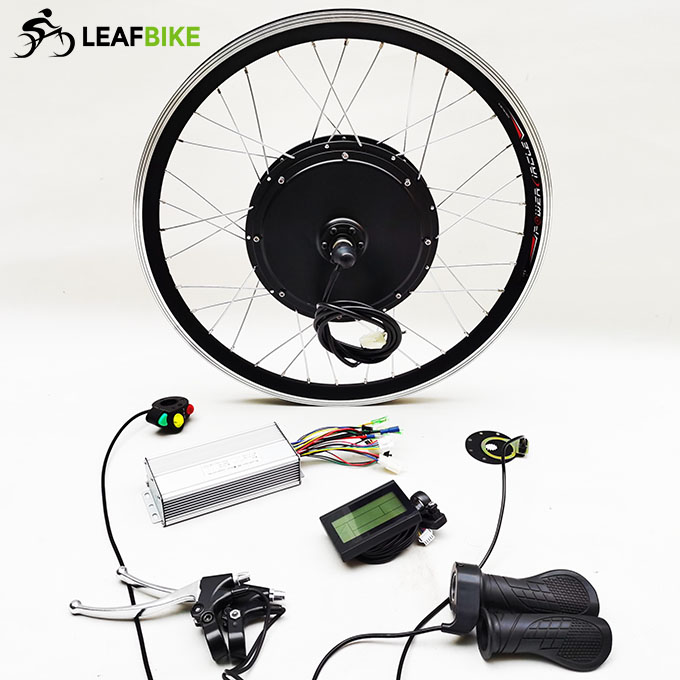

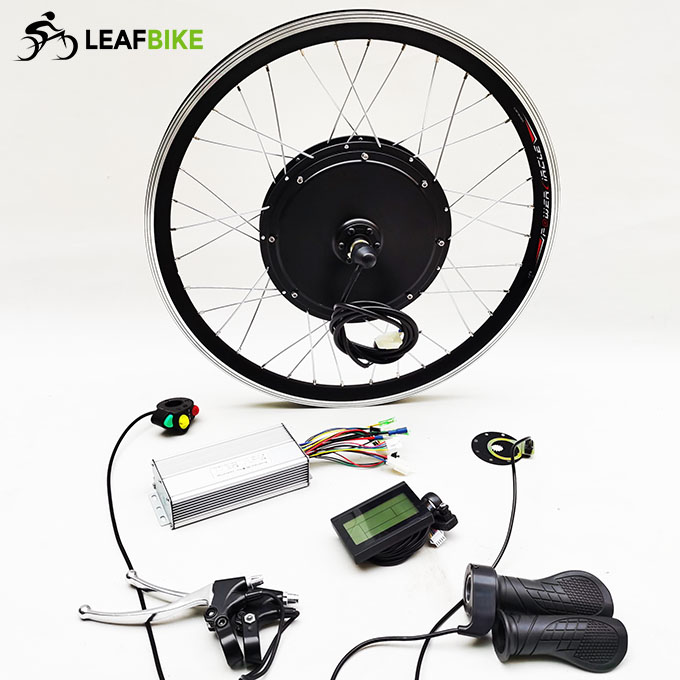

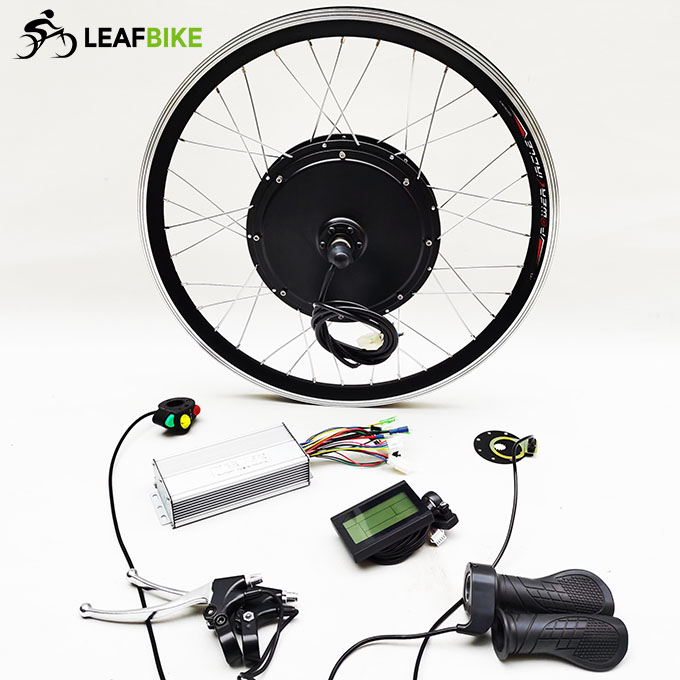

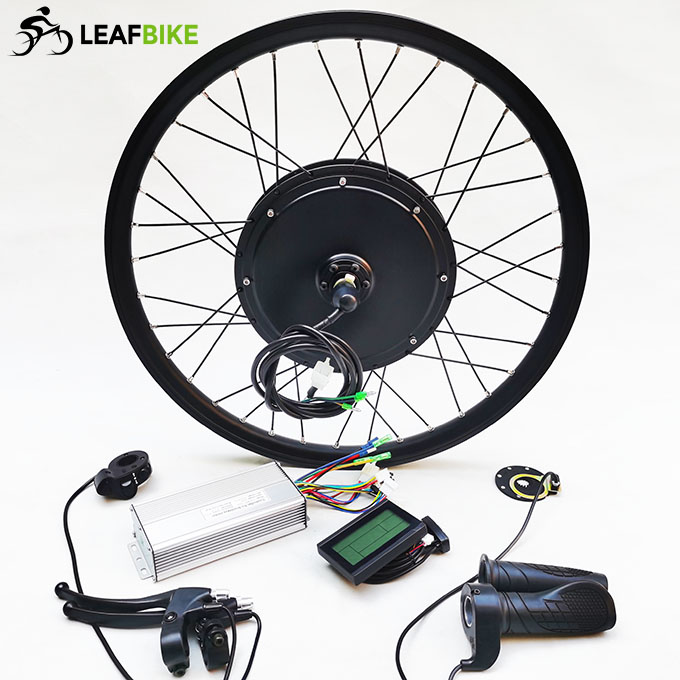

Package Content:

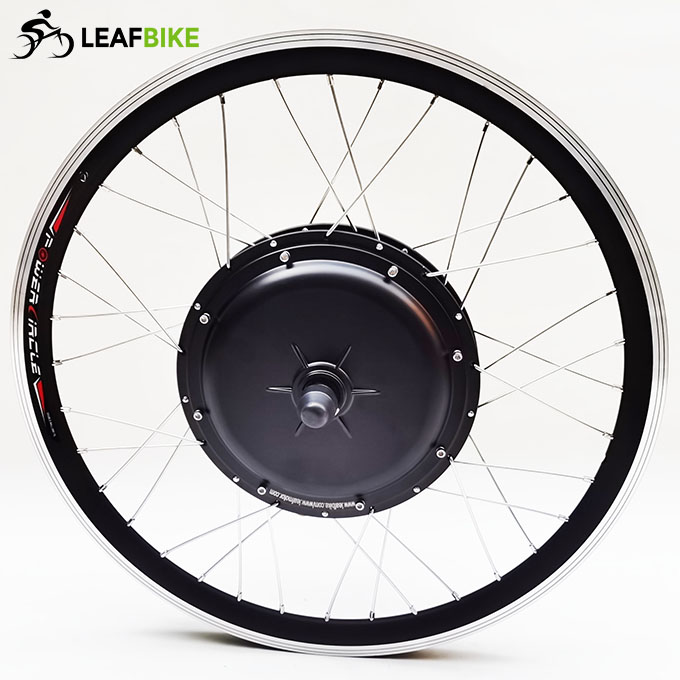

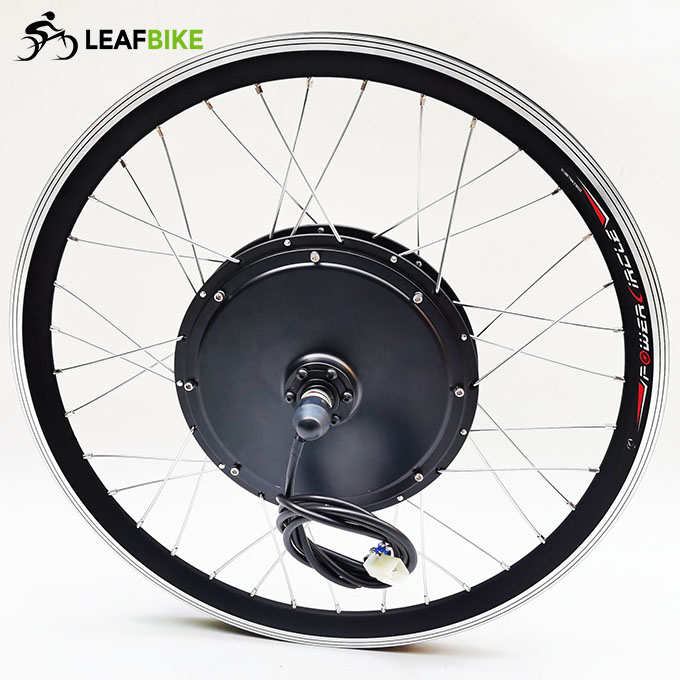

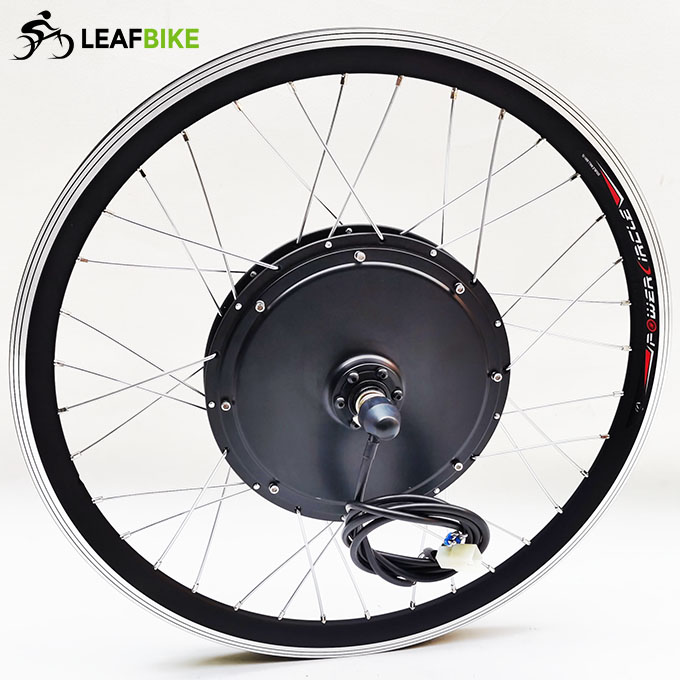

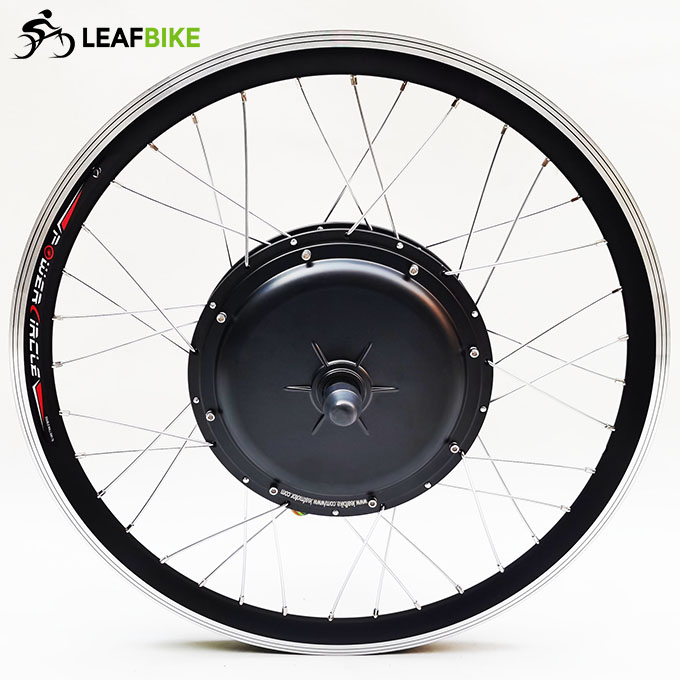

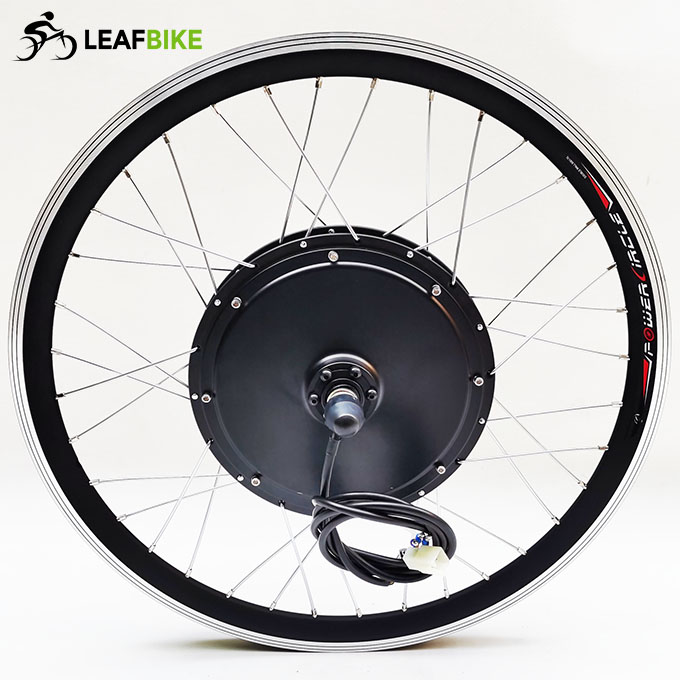

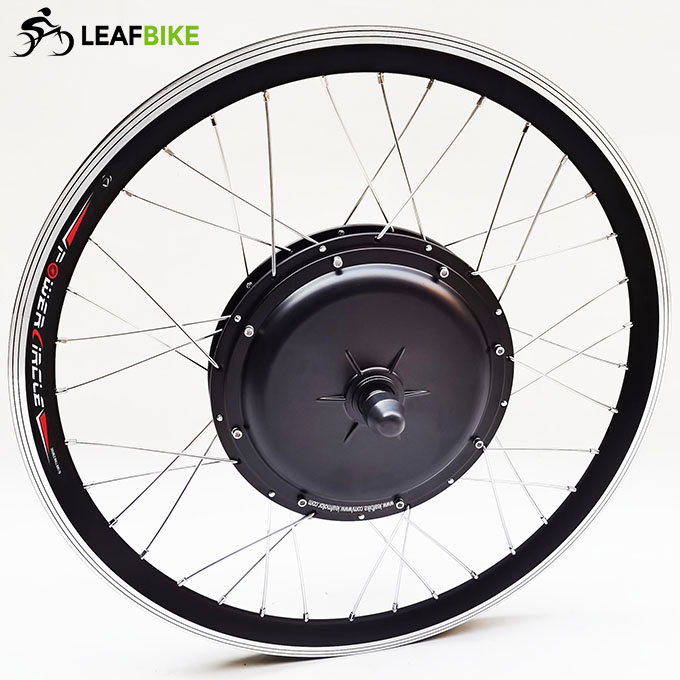

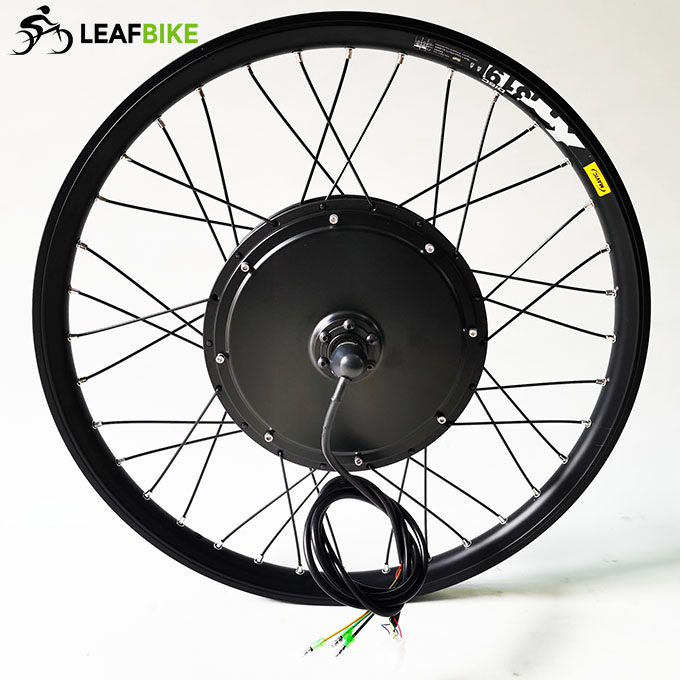

1 x 24 inch 36V 750W front hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD-003
1 x Twist throttle
1 x Brake levers
1 x Three button switches ( control cruise, regen brake, reverse .. )
1 x Pedal assist

Net weight: 10.5 kg   /  23 lbs
Package Size: 56cm L x 23cm W x 56cm H  /  22.0"  L x 9.0" W x 22.0" H
Package Type: Cardboard Box
Share Video:
24 inch 36v 750w front hub motor - bike conversion kit

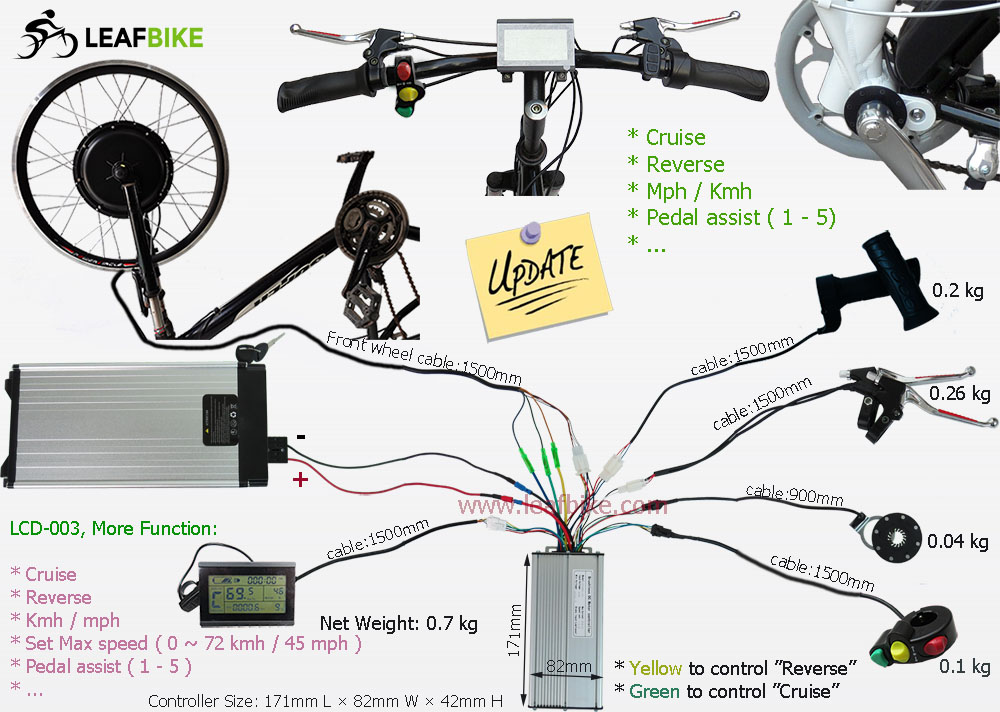

Wire Diagram:
20-24-26-27-28-29-inch-700c-front-hub-motor-eletric-bike-conversion-kit
750W Front Drw.
750w-front-electric-bike-motor-drawing
Performance Data:
750w-electric-hub-motor-performance-data-curve
Recommended Products: Torque Arm
Why do you need a torque arm? Because as hard as your tire is straining to go forwards,  your axle is straining to go backwards. Torque arms provide increased strength at the axle and are used to help prevent the axle from spinning out inside the drop outs. If the axle spins, then the electric wires that come out of the axle also spin and break or get stretched and pulled out of the motor.
torque arm
