Please watch video for 18 inch 36V 750W front scooter motor kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh ..
Share Video:
* This 18 inch scooter motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.
* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.
Main Features:
Hub: Ø372mm Casted Alloy (Hub Fit For: 18 × 2.125" / 2.5" scooter tire) - Not fit for 2.5 - 18 inch motorcycle tire
>. Engine: Bldc hub motor >>. Voltage: 36V >>. Power: 750W >>. Efficiency: 87.5% >>. Max speed: 47.7 kmh – 29.6 mph >>. Mechanical brake: Disk or V >>. Cable location: shaft end , Left >>. Cable length:100cm / 40" >>. Install: spacing of 100mm fork (Min.100mm ~ Max.115mm) >>. Noise: < 60 db >>. Surface: Black painted
>. Driver: brushless controller >>. MOSFET: 12 PCS >>. With LCD: YES >>. Rated Voltage: DC 36 Volts >>. Min. Voltage: DC 30 ± 0.5 V >>. Rated power: 750 Watts >>. Casing material: aluminium >>. Maximum Current: 26 A ± 1 Amps >>. Thermal: aluminum shell and the substrate >>. 3 phase 120° brushless motor >>. Operating Conditions: -20~45 °C >>. Waterproof design >>. Size: 171 mm L × 82 mm W × 42 mm H
LCD-008HUP With USB Port & Color screen, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Set Max speed ( 0 ~ 72 kmh / 45 mph )
* Pedal assist ( 1 - 5 )
* Temperature
* Motor power
* Timer
* Battery gauge
* ...

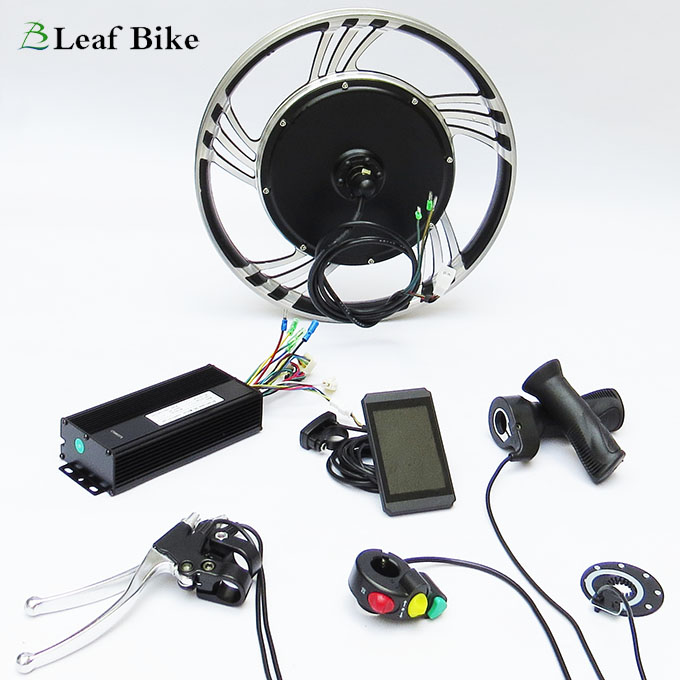

Package Content:
1 x 18 inch 36V 750W front hub motor wheel
1 x 36V 750W 12-MOSFET motor controller
1 x LCD-008HUP With USB Port & Color screen
1 x Twist throttle
1 x Brake lever
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist
Net Weight: 9.05 kg / Gross Weight: 10.25 kg
Package Size: 46cm L x 46cm W x 31cm H Package Type: Cardboard Box

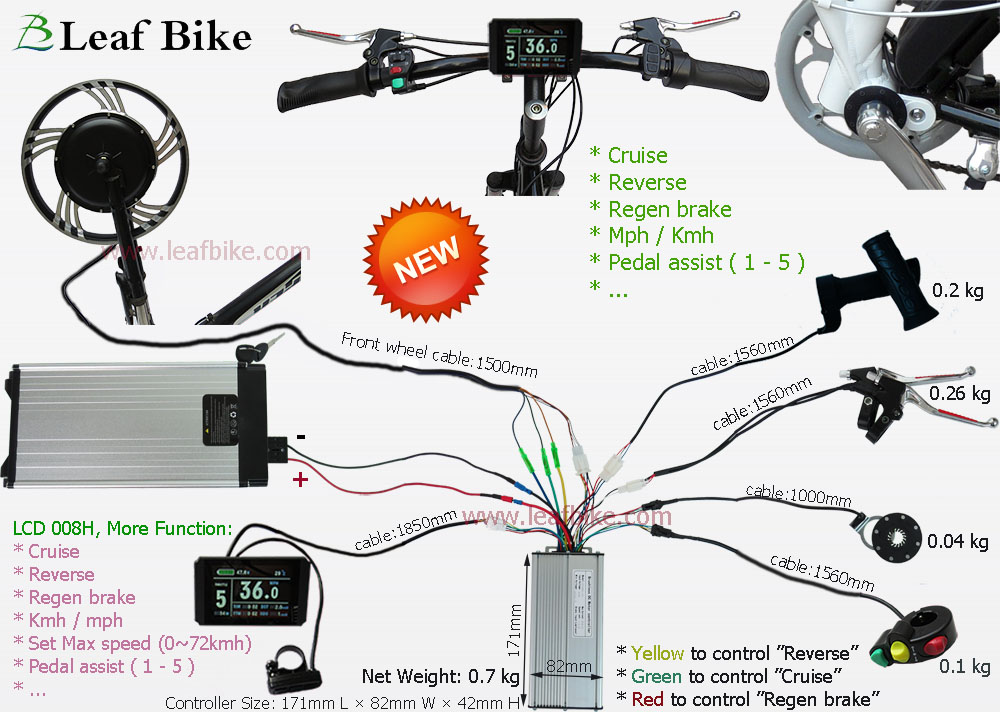

Wire Diagram:

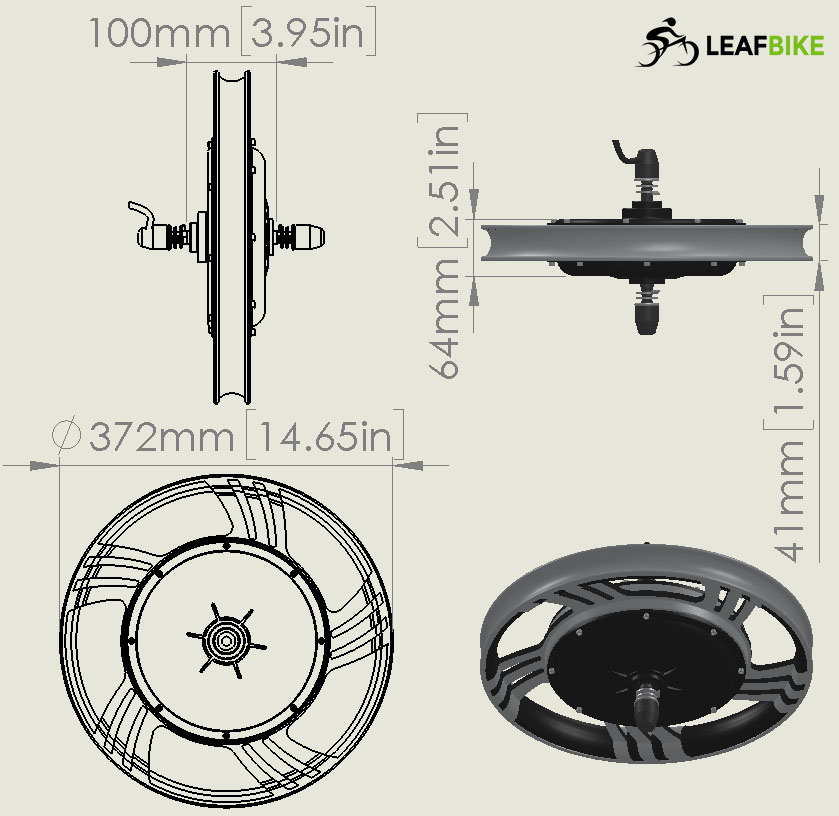

18 inch Front Drw.
Performance Data:
