12 inch 24V 250W electric scooter kit - rear hub motor wheel

Name: 12 inch 24V 250W electric scooter kit - rear hub motor wheel
Brand: Leaf Bike
SKU: LBCK1224250RM
Price: 280 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Item ID #LBCK1224250RM

$280.00 ~~$350.00~~

Maybe You Need These

Description

Please watch video for 12 inch 24V 250W electric scooter kit rear hub motor wheel that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video:

12 inch 24v 250w rear hub motor - electric bike conversion kit

This 12 inch electric scooter motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every scooter into a personal electric scooter. Save energy, protect environment and save money with a lot of fun.

Main Features:
Hub: Ø218mm Casted Alloy (Hub Fit For: 12 × 2.125" / 2.5" tire)
Motor Type: electric scooter motor
Controller: LCD display
Max speed: 16.1 kmh / 10.0mph
Mechanical brake: V or Disk / Drum
Install: spacing of 135mm fork

LCD-003 , More Function:
* Cruise
* Kmh / mph
* Set Max speed
* Pedal assist ( 1 - 5 )
* ...

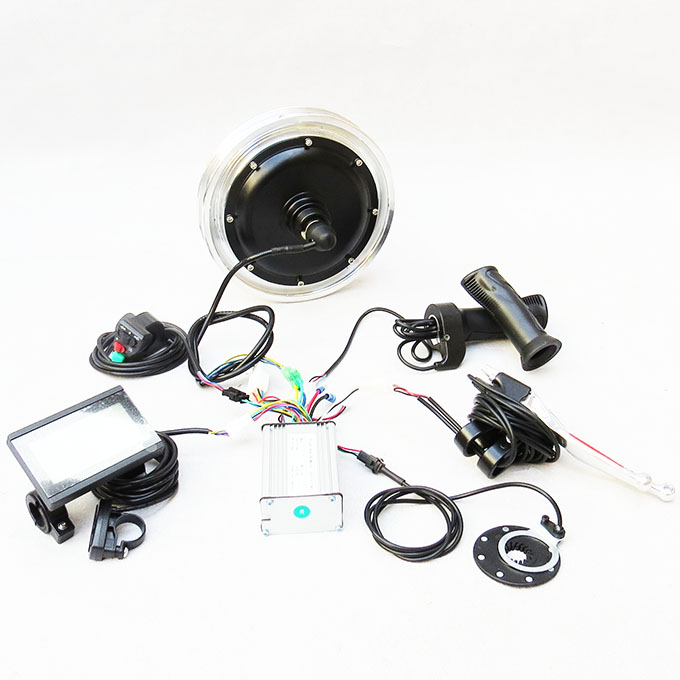

Package Content:

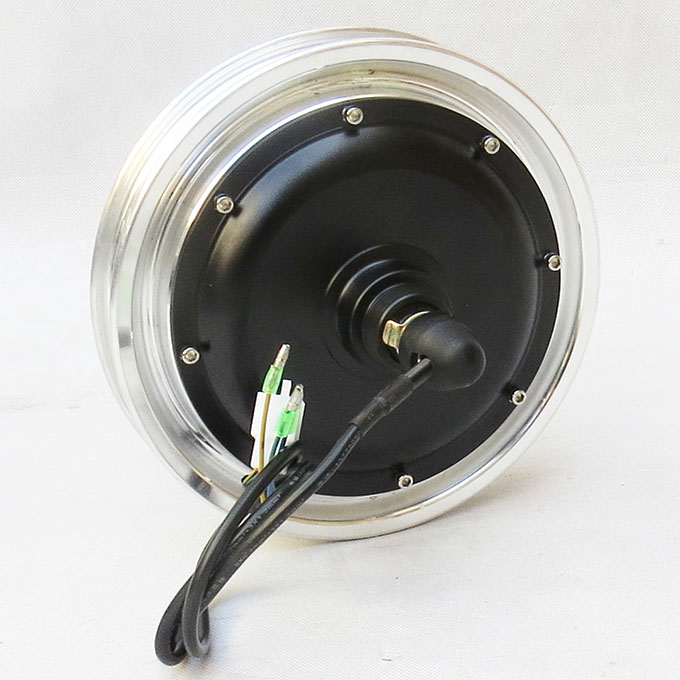

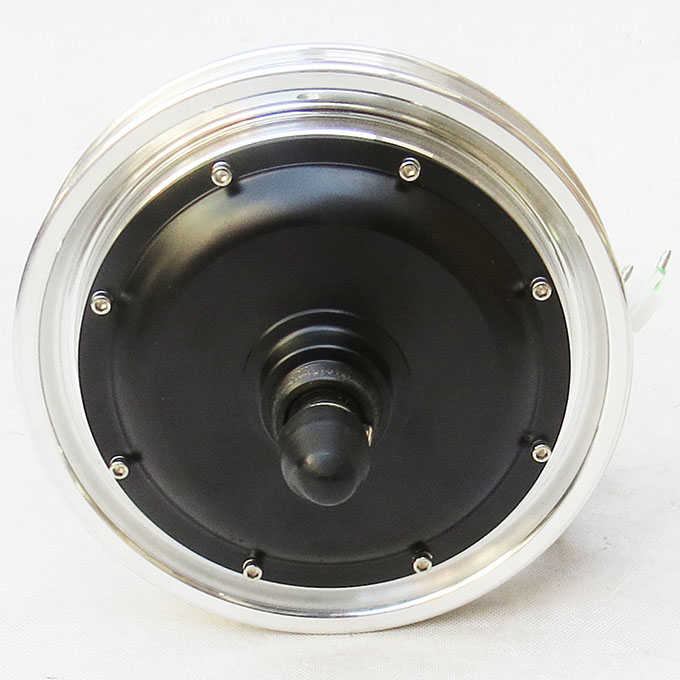

1 x 12 inch 24V 250W rear electric scooter motor wheel
1 x 24V 250W 6-MOSFET motor controller
1 x LCD-003 ( display speed, mileage, battery gauge.. )
1 x Twist throttle
1 x Brake lever
1 x Three button switches ( control cruise, reverse .. )
1 x Pedal assist

Net Weight: 6.8 kg / 15 lbs
Package Size: 28mm L x 25mm W x 30mm H
Package Type: Cardboard Box

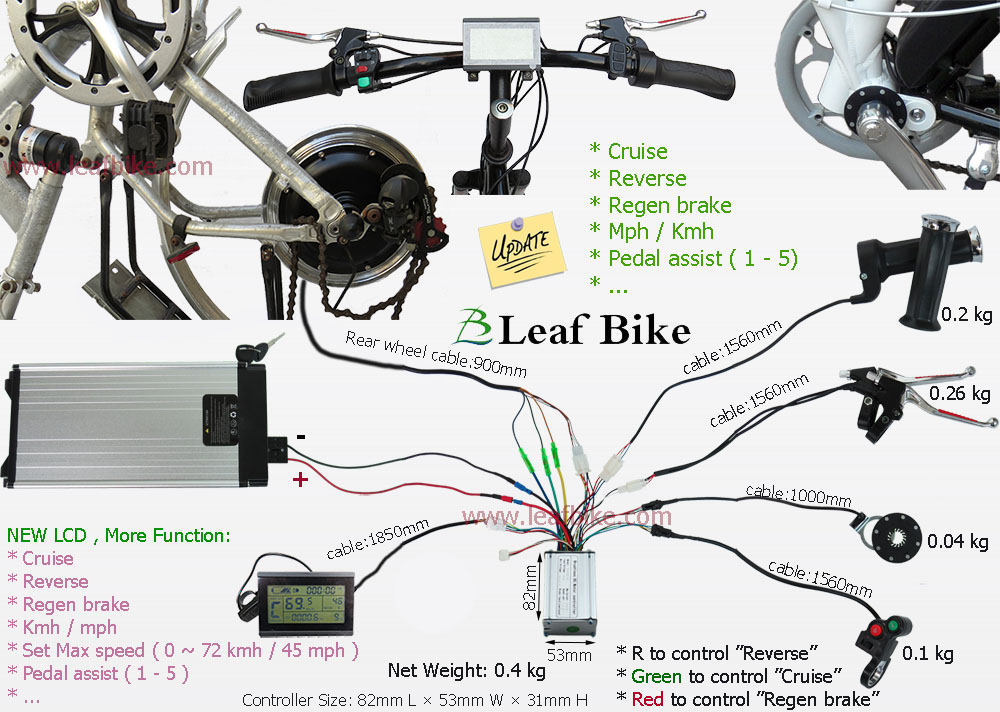

Wire Diagram:

12 inch rear hub motor - electric bike conversion kit

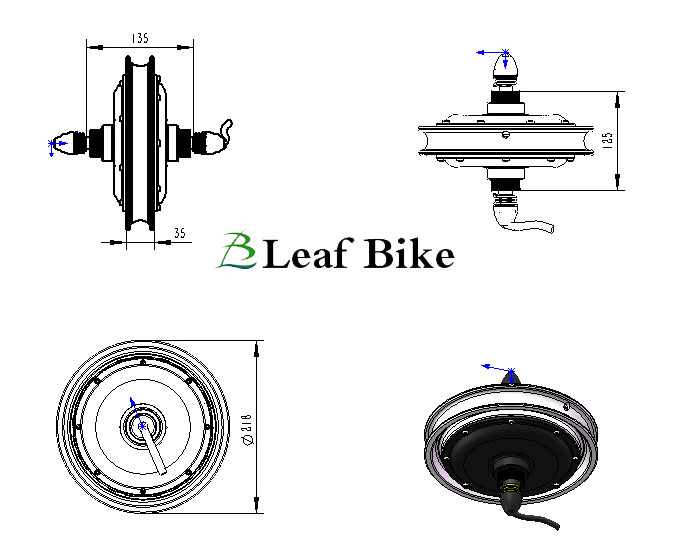

12 inch Rear Drw.

12 inch rear electric hub motor - bike conversion kit

Performance Data:
