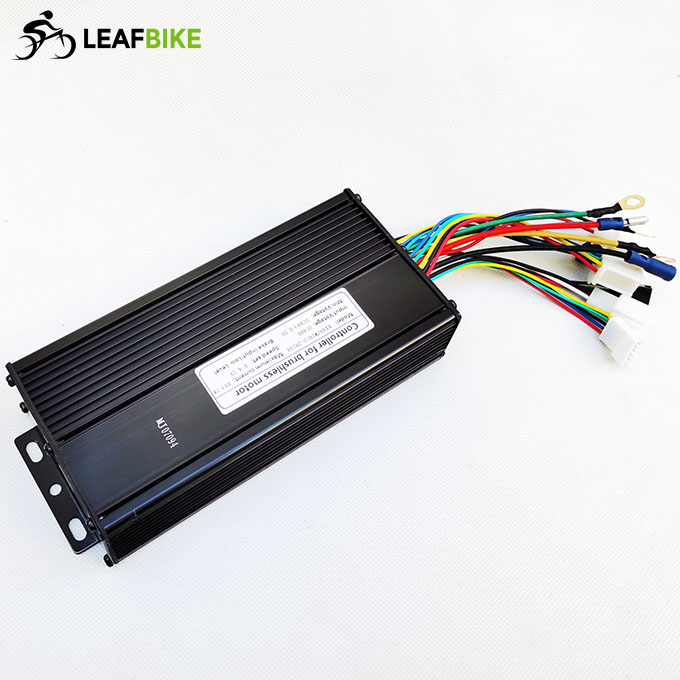

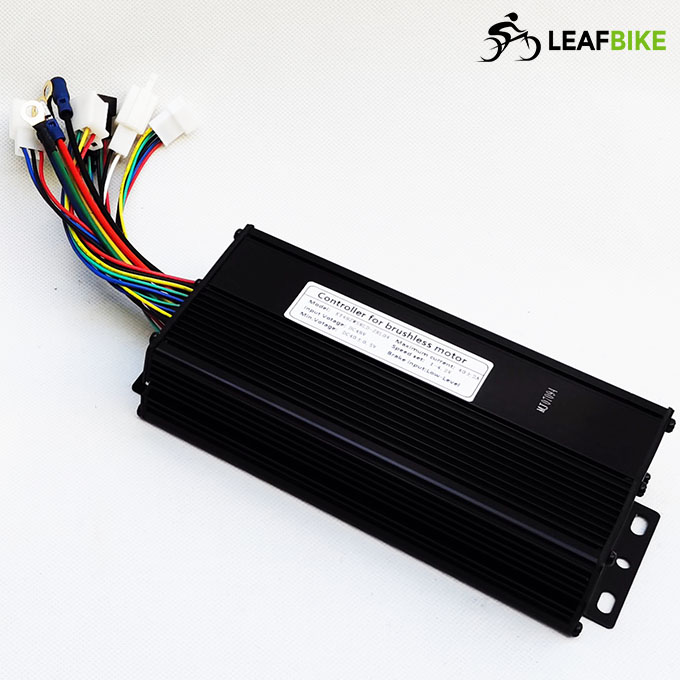

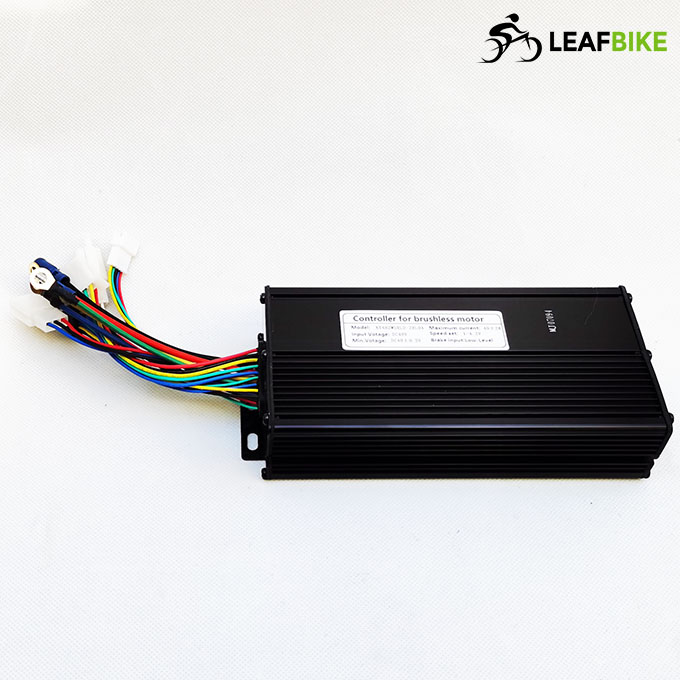

48V 1000W Electric Bicycle Brushless Motor Controller For E-bike & Scooter -- 12-MOSFET It's fit to drive 48V / 52V 1000W ~ 1500W brushless with hall sensor hub motor.
Features:
Suitable for Electric for electric bike & scooter
Rated Voltage: DC 48 Volts
Min. Voltage: DC 40 ± 0.5 V
Power: 1000 Watts
Casing material: aluminium
Maximum Current: 40 A ± 1 Amps
Thermal: aluminum shell and the substrate
3 phase 120° brushless motor
Operating Conditions: -20~45 °C
Waterproof design
Size: 171 mm L × 82 mm W × 42 mm H
Weight: 0.36 kg
No LCD
Functions:
Mute when start
Speed limit
Power cut brake
Blockage protection
Current limit protection
E-ABS brake
Short circuit protection
Avoid out of control
1:1 pedal assist function
Undervoltage protection
