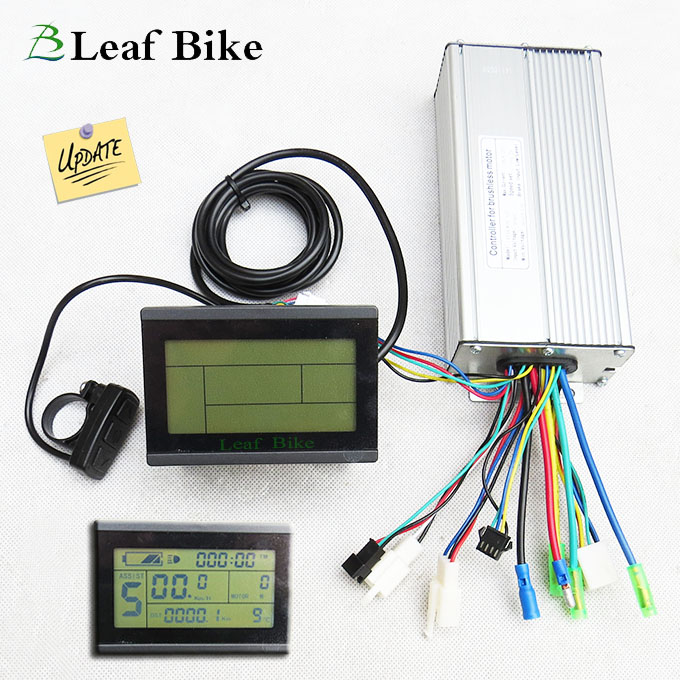

36V 750W electric bike motor controller

Item ID #LBC36750M
$98.00 $98.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
36V 750W Electric Bicycle Brushless Motor Controller For E-bike & Scooter -- 12-MOSFET
It's fit to drive 36V 450 ~ 800W brushless with hall sensor hub motor.


Features:
Suitable for Electric for electric bike & scooter
Rated Voltage: DC 36 Volts
Min. Voltage: DC 30 ± 0.5 V
Rated power: 750 Watts
Casing material: aluminium
Maximum Current: 26 A ± 1 Amps
Thermal: aluminum shell and the substrate

3 phase 120° brushless motor
Operating Conditions: -20~45 °C
Waterproof design
Size: 171 mm L × 82 mm W × 42 mm H
Weight: 0.66 kg

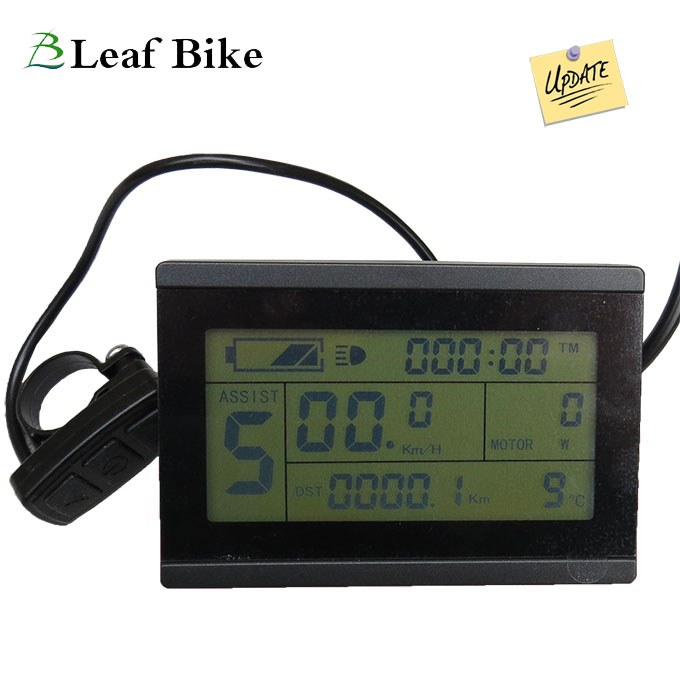

Working with LCD-003
Display: speed, mileage, battery gauge...

Functions:
Mute when start
Speed limit
Power cut brake
Blockage protection
Current limit protection
E-ABS brake
Short circuit protection
Avoid out of control
1:1 pedal assist function
Undervoltage protection

Additional features:
* Cruise
* Reverse
* Regen brake
* Pedal assit ( 1 - 5 )
* Mph / kmh
* ....
Share Video:
26 inch 36v 750w rear brushless hub motor - electric bike conversion kit
Wire Diagram:
1000w hub motor electric bike conversion kit wire diagram
