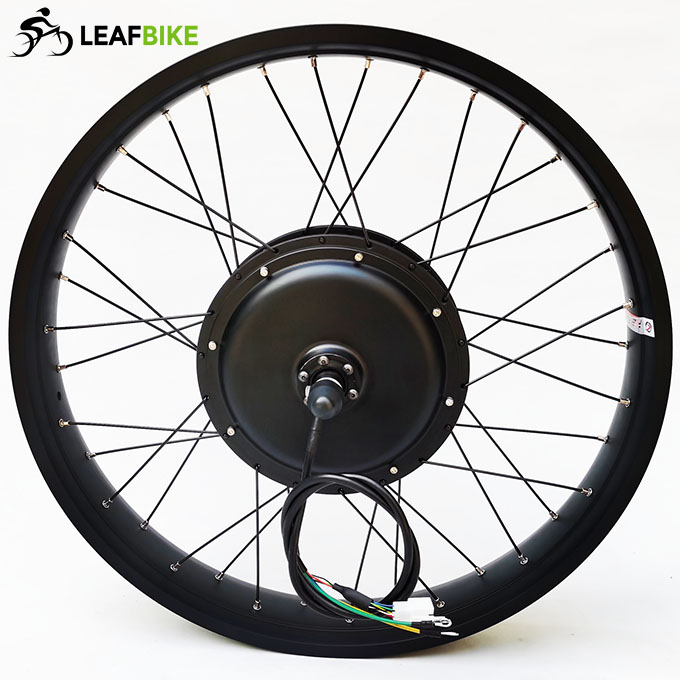

24 inch 48V 52V 1500W rear beach snow fat bike motor wheel

Name: 24 inch 48V 52V 1500W rear beach snow fat bike motor wheel
Brand: Leaf Bike
SKU: LBM24481500RS
Price: 308 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBM24481500RS

$308.00 ~~$337.00~~

Maybe You Need These

Description

Please watch video for 24 inch 48V 52V 1500W rear beach snow fat bike motor wheel that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..

Share Video:

24 inch 48v 1000w rear beach snow hub motor - electric bike conversion kit

* This 24 inch fat bike motor combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

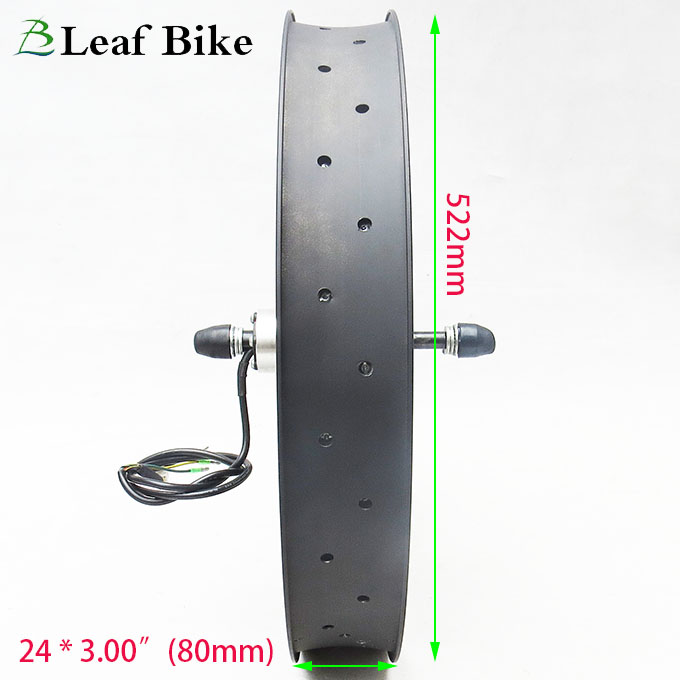

>. Rim: 24 × 3 inch double wall Alloy (Rim Fit For: 24 × 4.00" tire)
>. Spoke: 12 gauge / 135mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48 / 52V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 71.6 kmh -- 44.4 mph Default (Optional other speed: 35mph or 25mph,15mph...)
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end , LEFT
>>. Cable length:100cm / 40"
>>. Rear frame fork / Install: spacing of 170mm ~ 200mm (170mm version Default or 190mm version optional)
>>. Noise: < 60 db
>>. Surface: Black painted

Package Content:

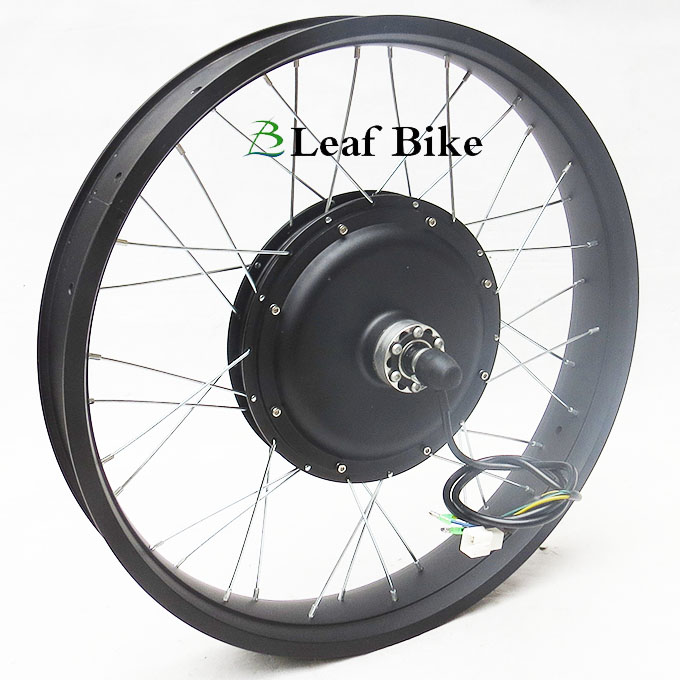

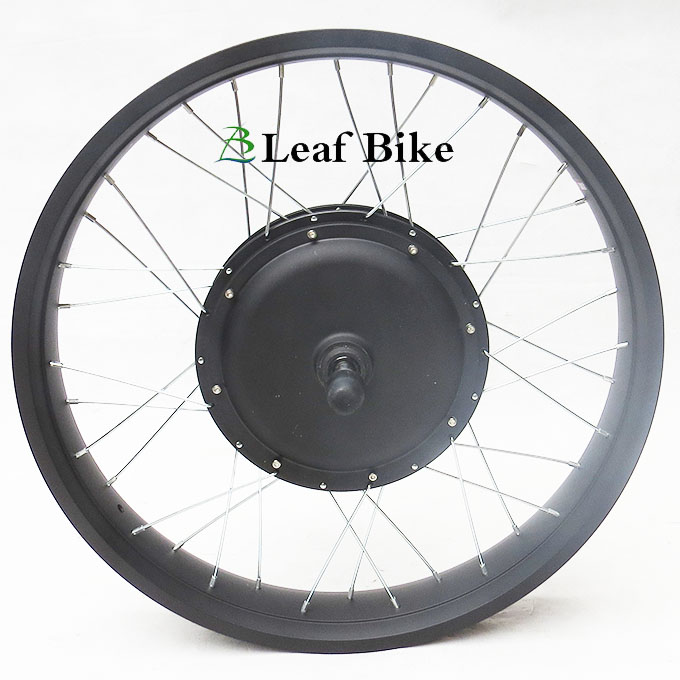

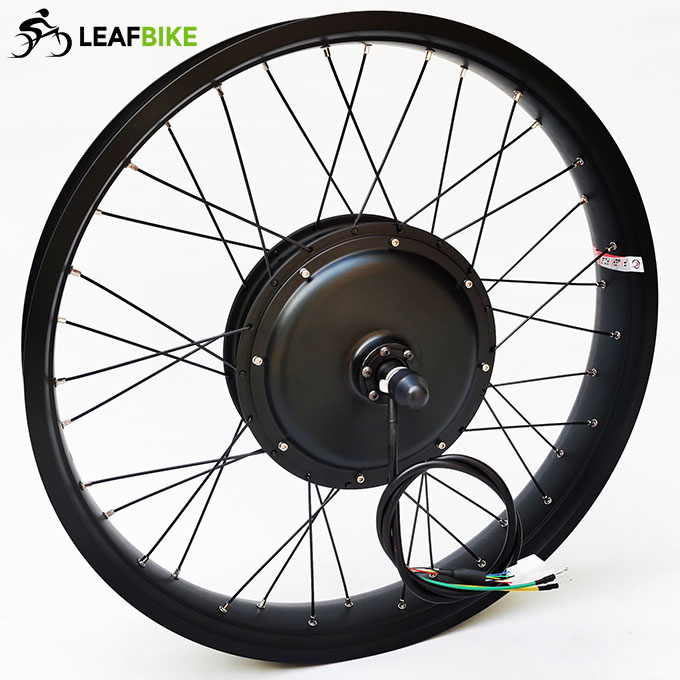

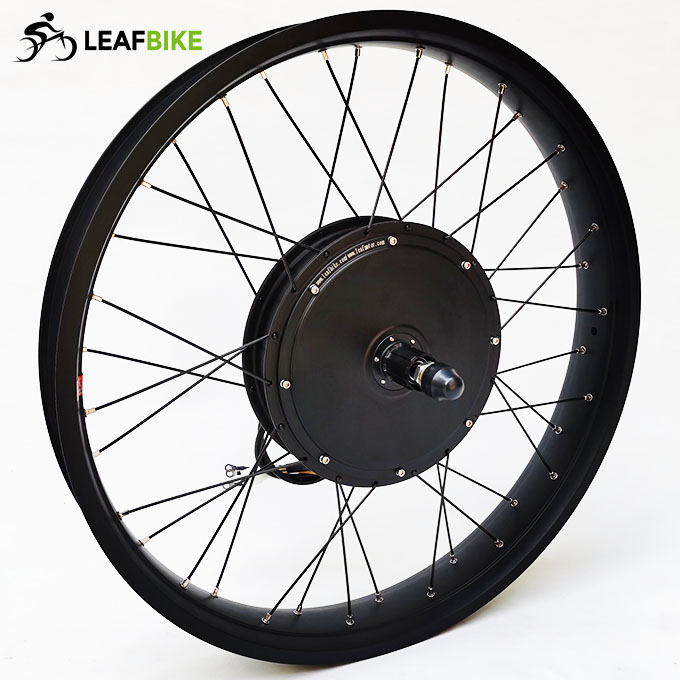

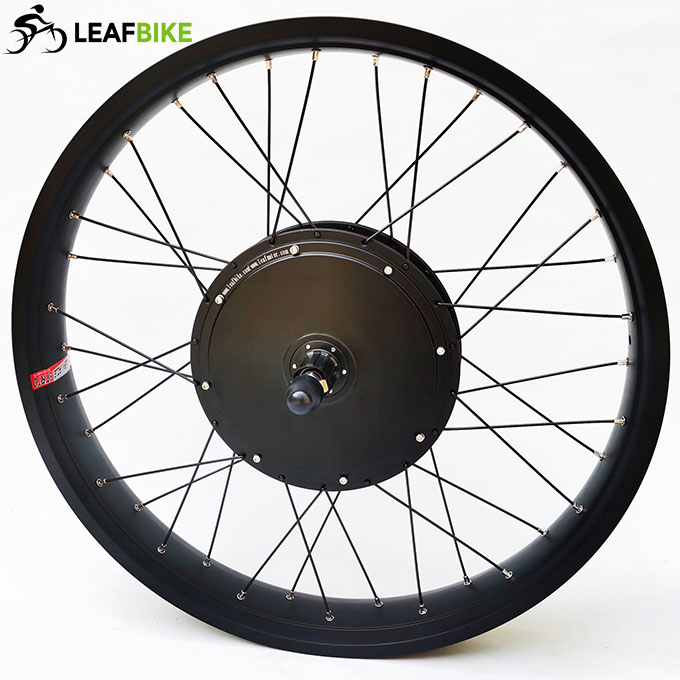

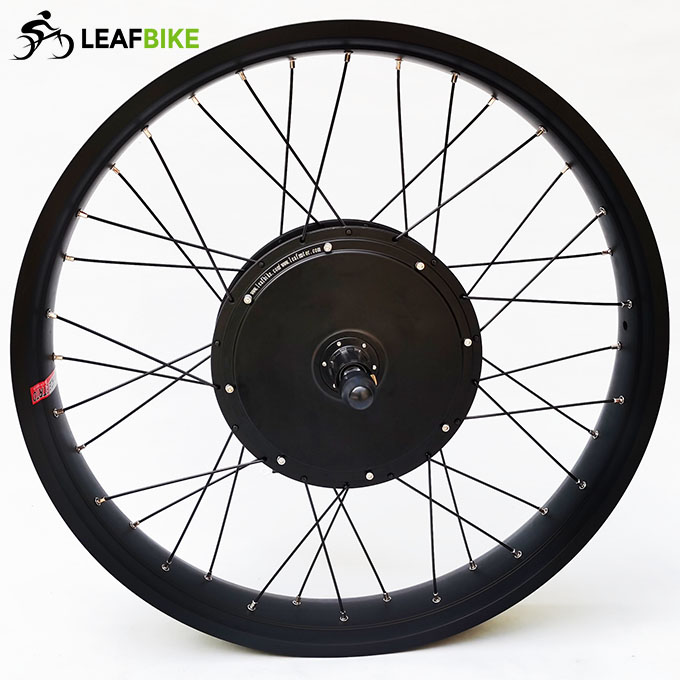

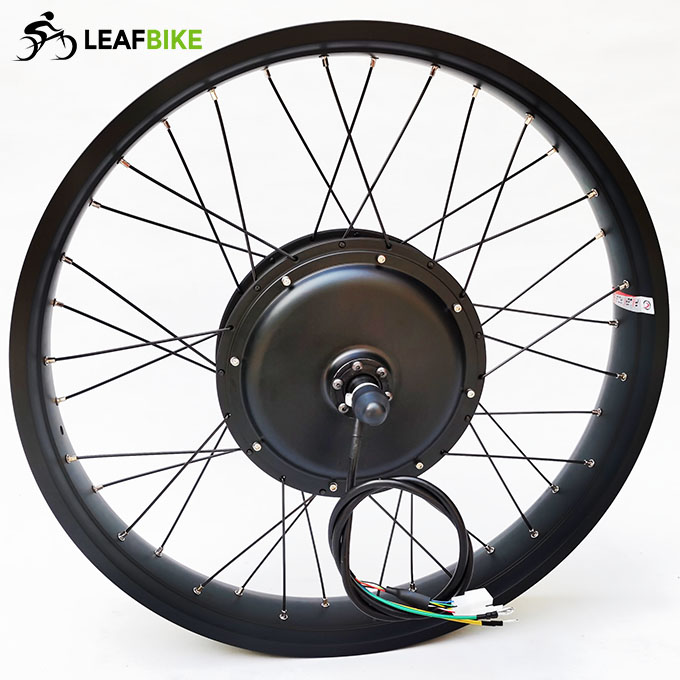

1 x 24 inch 48V / 52V 1500W rear hub motor wheel - 24 * 4.00 fat tire / snow / beach

Net Weight: 11kg
Package Size: 56cm L x 56cm W x 28cm H
Package Type: Cardboard Box

170mm Freewheel:

170mm Cassette:

Performance Data:

190mm dropout Drw.

190mm dropout beach snow fat bike motor drawing
