20 inch 48V 52V 1500W rear hub motor - Beach Snow Fat Tire bike conversion kit

Name: 20 inch 48V 52V 1500W rear hub motor - Beach Snow Fat Tire bike conversion kit
Brand: Leaf Bike
SKU: LBCK20481500RS
Price: 399 USD
Availability: InStock
Rating: 5 (1 reviews)

Item ID #LBCK20481500RS

$399.00 ~~$448.00~~

Quantity :

Maybe You Need These

Description

This 20 inch fat bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun. Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:
>. Rim: 20 × 3 inch double wall Alloy (Rim Fit For: 20 × 4.00" tire)
>. Spoke: 12 gauge / 72mm Length × 36 pcs

>. Engine: Bldc hub motor
>>. Voltage: 48V / 52V
>>. Power: 1500W
>>. Efficiency: 90.5%
>>. Max speed: 52.6 kmh -- 32.6 mph Default (Optional other speed: 25mph, 20mph...)
>>. Mechanical brake: Disk or V
>>. Sprocket: Freewheel or Cassette
>>. Cable location: shaft end, LEFT
>>. Cable length:100cm / 40"
>>. Rear frame fork / Install: spacing of 170mm ~ 200mm (170mm version Default or 190mm version optional)
>>. Noise: < 60 db
>>. Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 18 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>. Rated power: 1500 Watts
>>. Casing material: aluminium
>>. Maximum Current: 40A ± 1 Amps
>>. Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 155 mm L × 72 mm W × 38 mm H

With LCD, More Function:
* Cruise
* Forward & Backward (Optional)
* Kmh & mph (Optional)
* Throttle speeds ( 0 - 5 ) -- "0" is off throttle. "1" is the slowest. "5" is the fastest.
* Pedal assist speed ( 0 - 5 ) -- "0" is off pedal assist. "1 ~ 5" is the fastest. ONLY one max speed. If hope pedal with 5 kinds of max speeds, please choose the other controller of ours. Please click below link:
https://www.leafbike.com/products/beach-snow-fat-bike-kit/20-inch-48v-1500w-rear-hub-motor-fat-bike-conversion-kit-1476.html
* ...

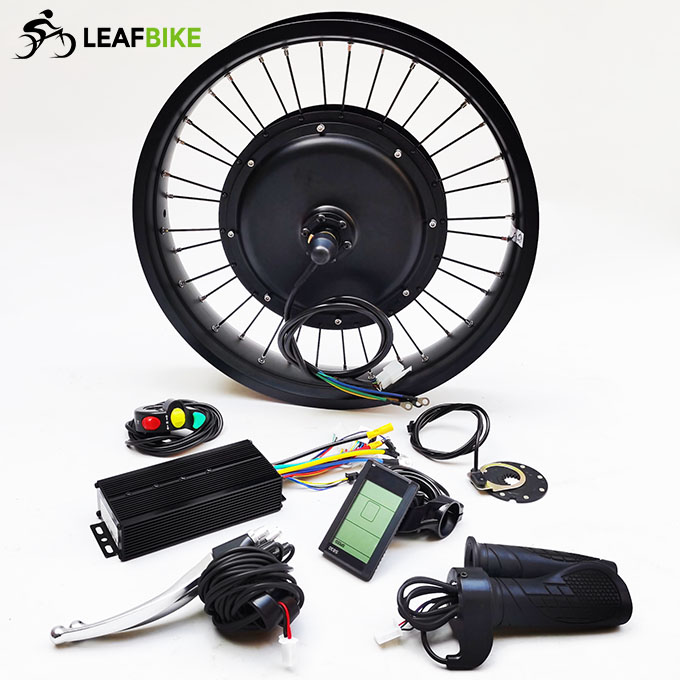

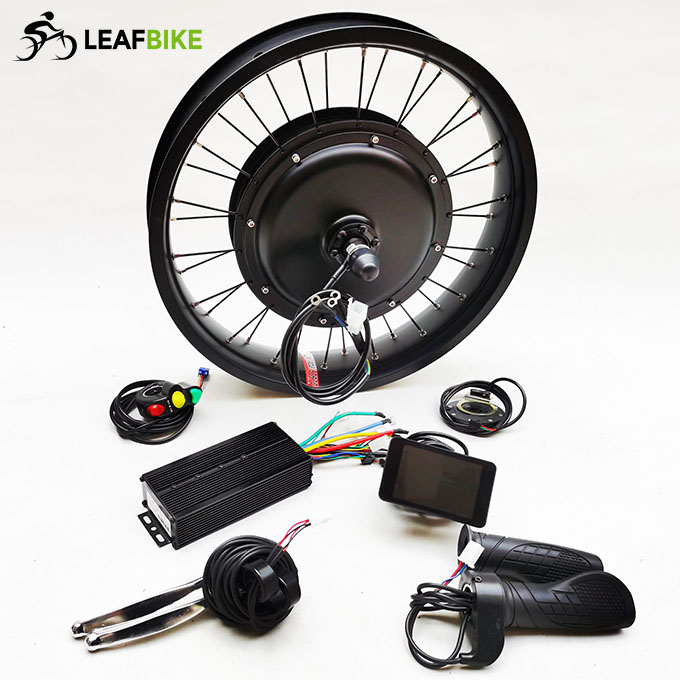

Package Content:

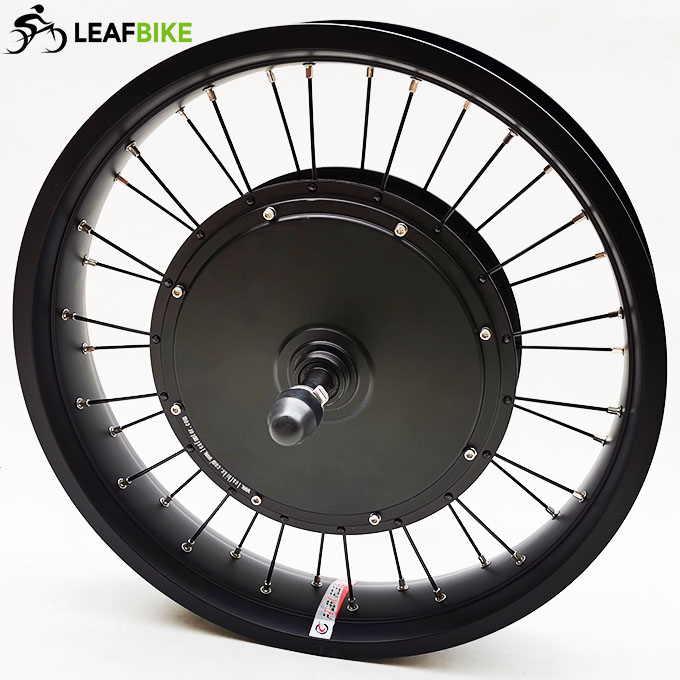

1 x 20 inch 48V 52V 1500W rear hub motor wheel - 20 * 4.00 fat tire / snow / beach
1 x 48V 52V 1500W motor controller

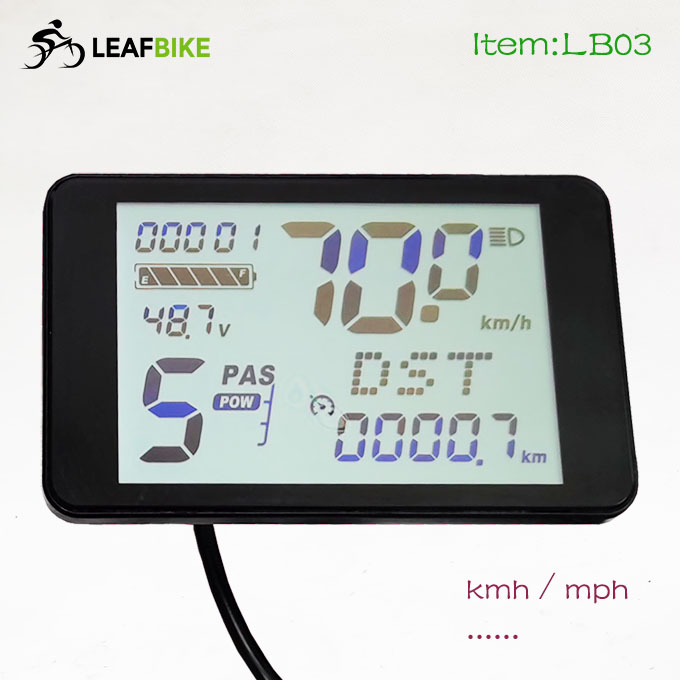

1 x LCD
1 x Twist throttle -- Cable length: 1500mm
1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise... ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 12.0 kg
Package Size: 50cm L x 50cm W x 28cm H
Package Type: Cardboard Box

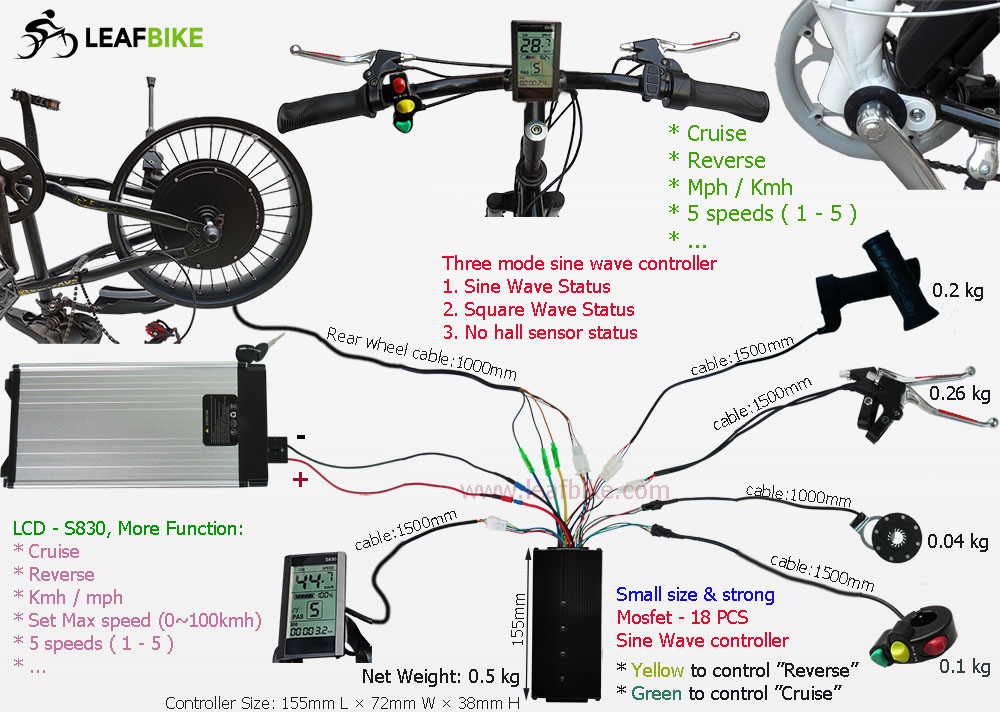

Wire Diagram:

20 inch rear beach snow fat bike conversion kit

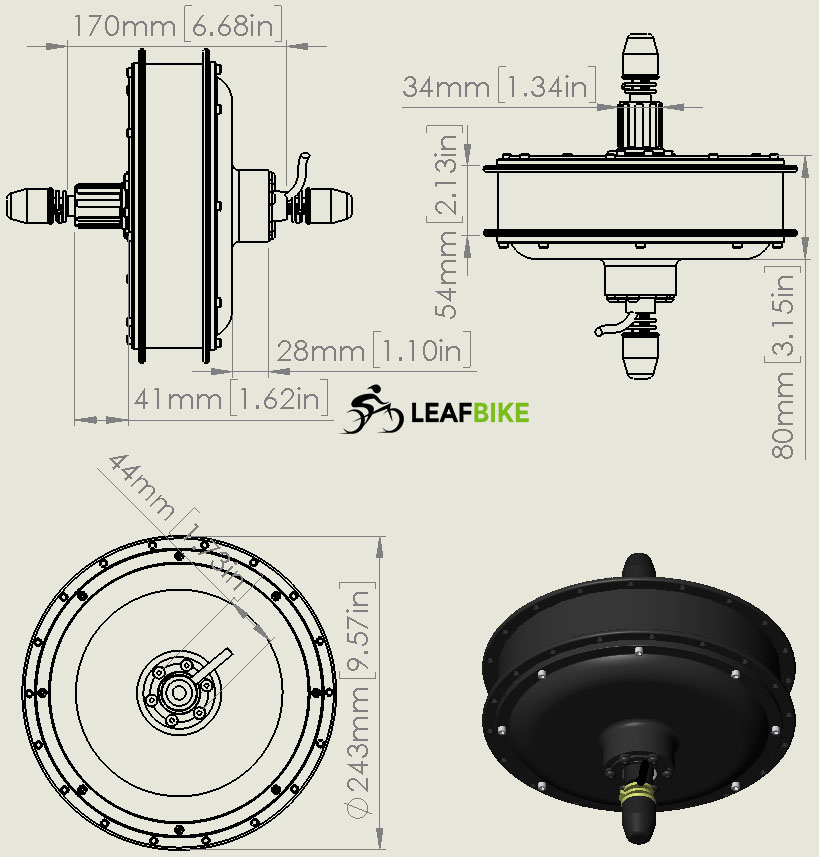

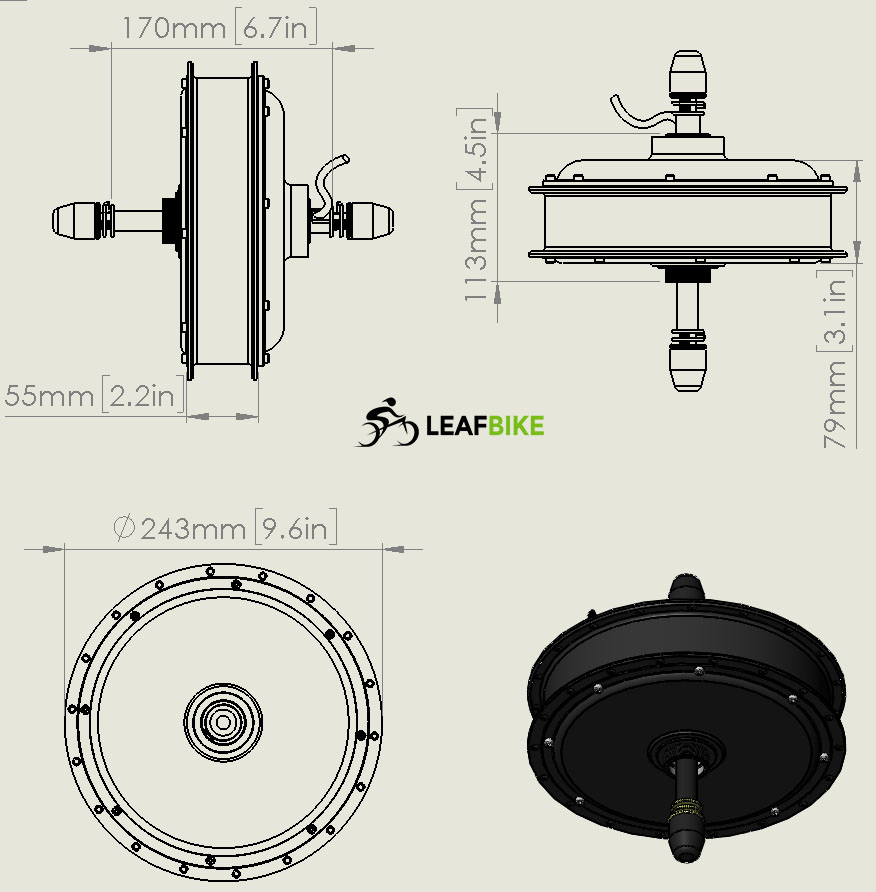

170mm Freewheel:

170mm Cassette:

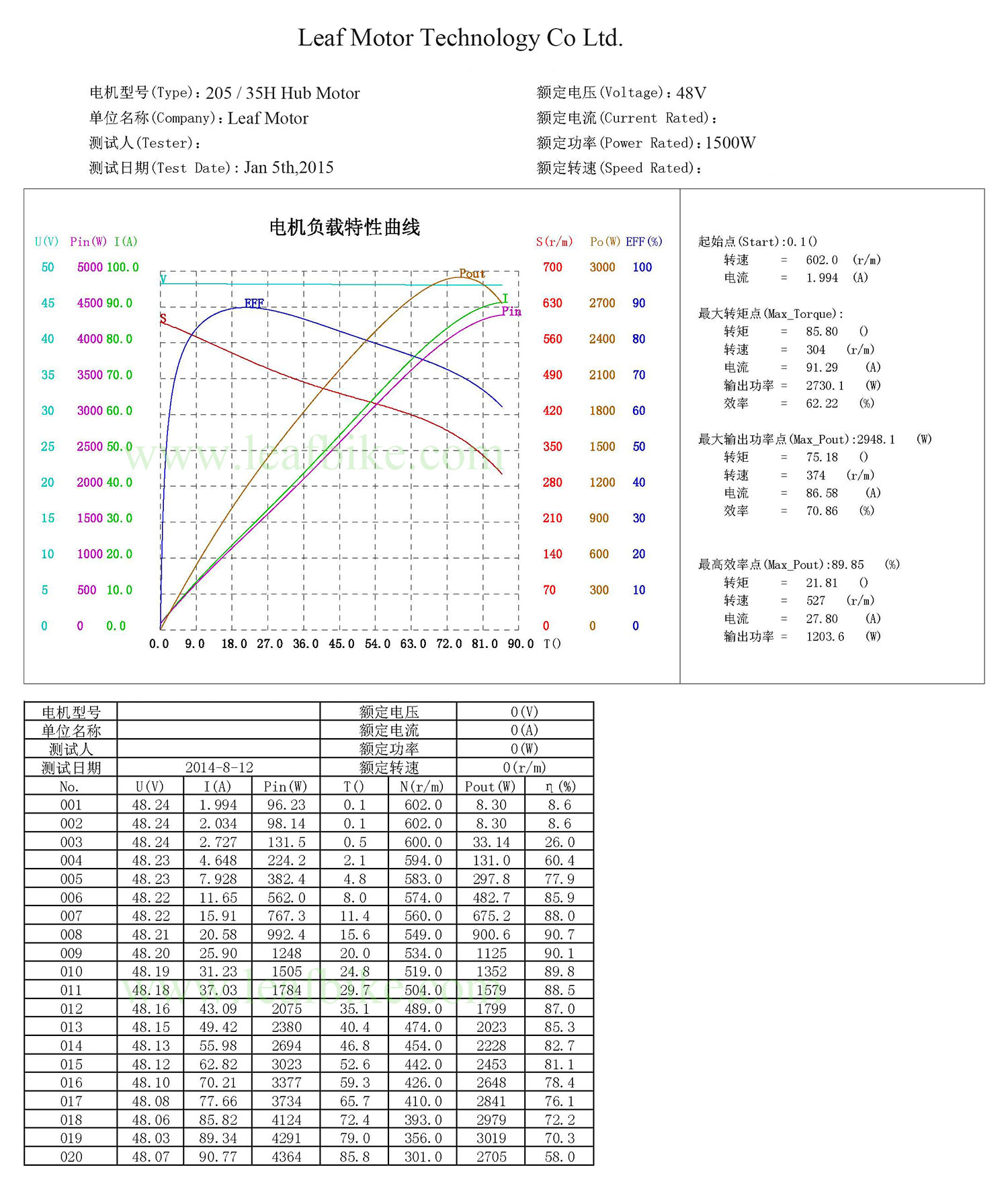

Performance Data:

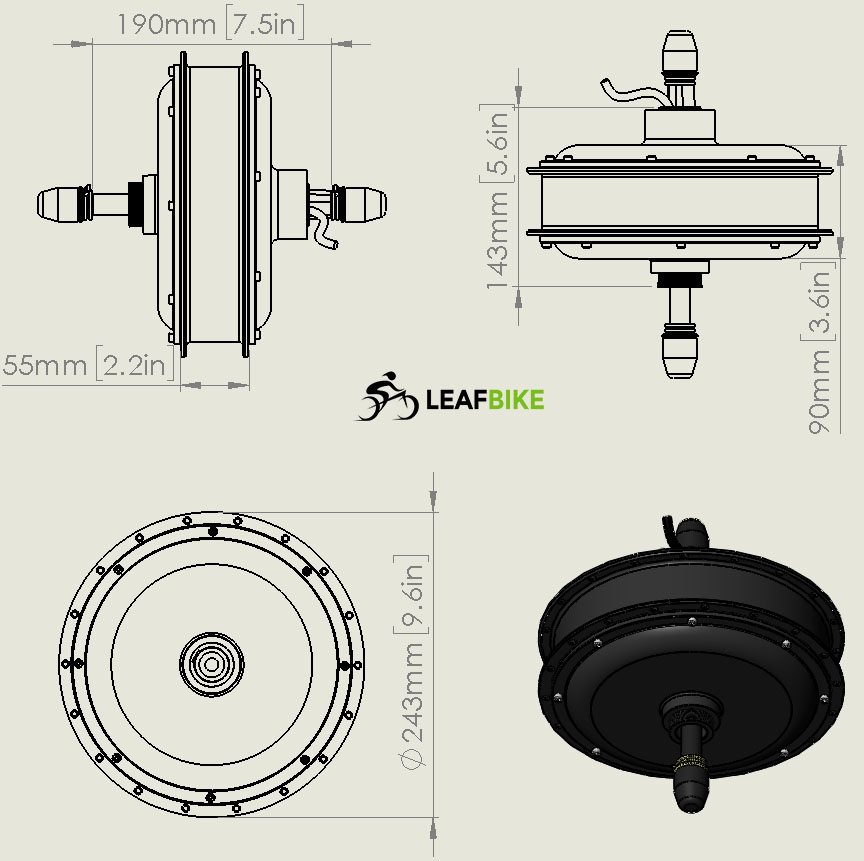

190mm Dropout Motor:

190mm dropout beach snow fat bike motor drawing
