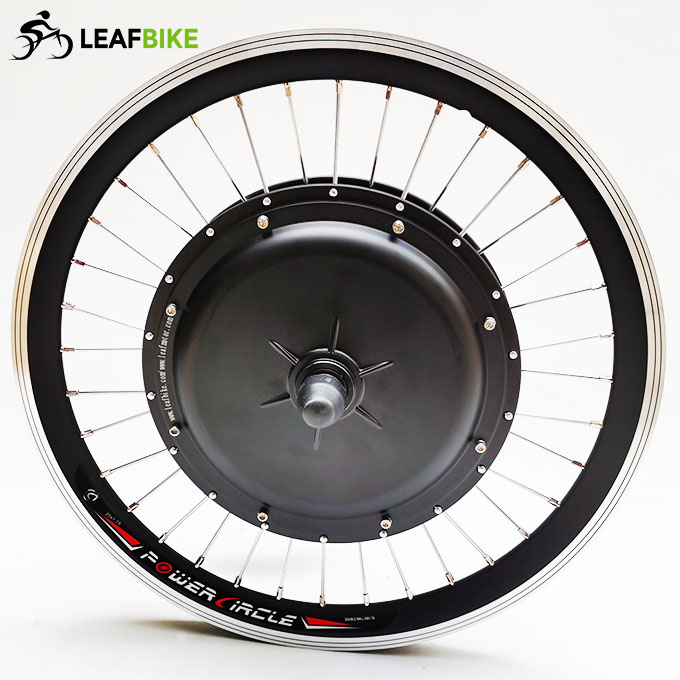

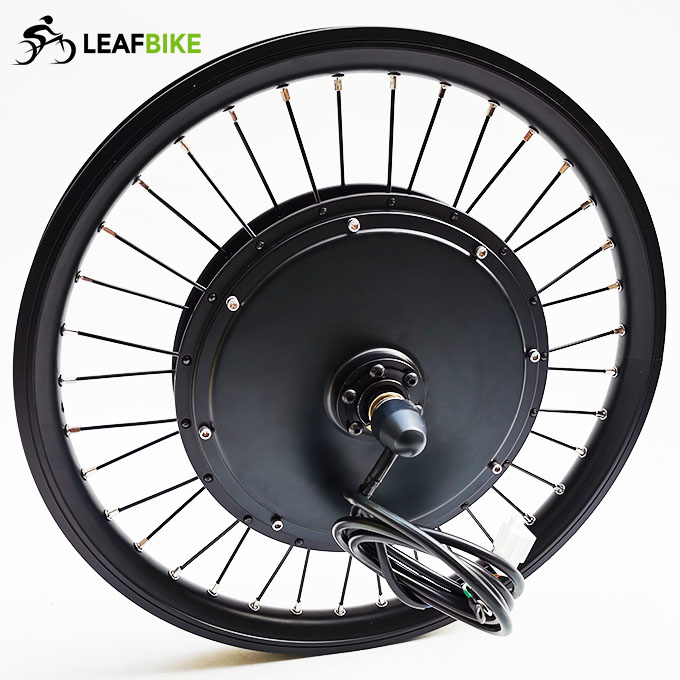

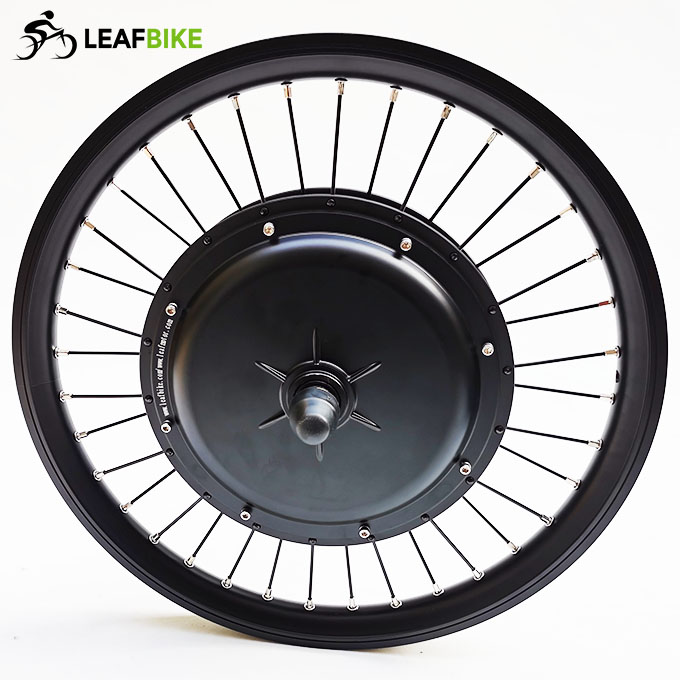

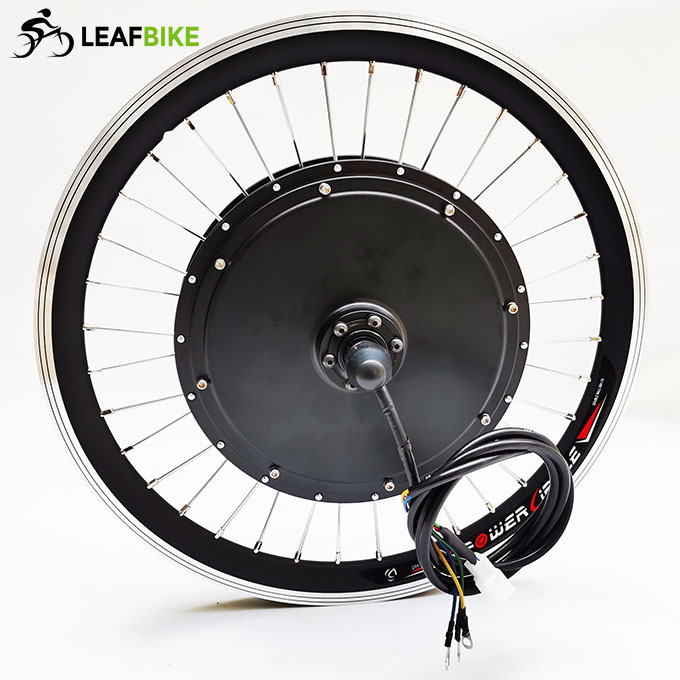

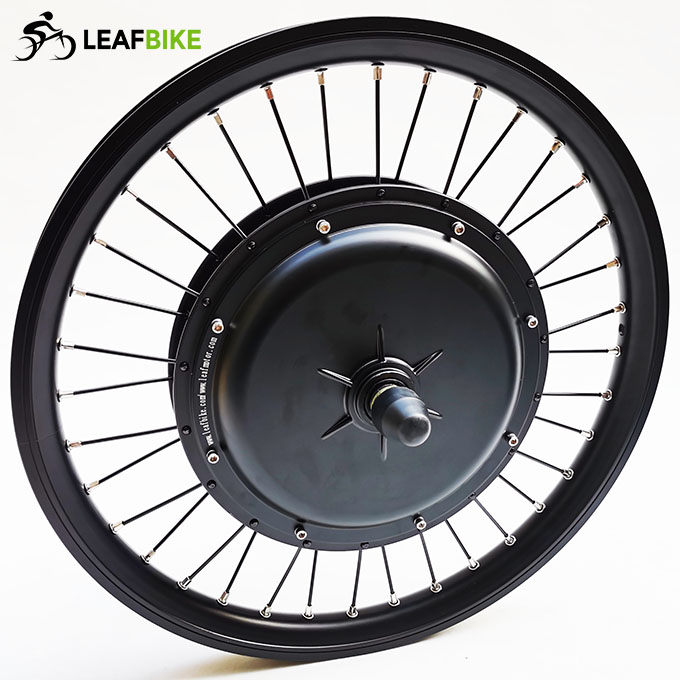

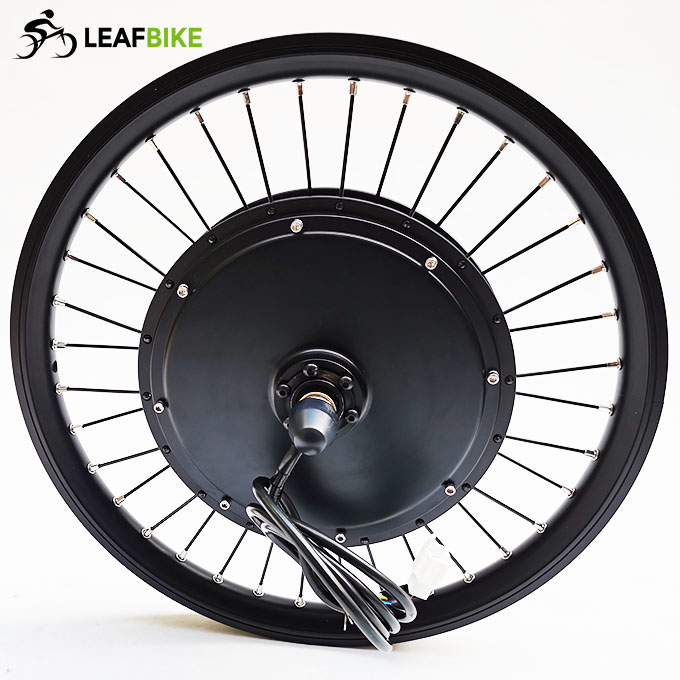

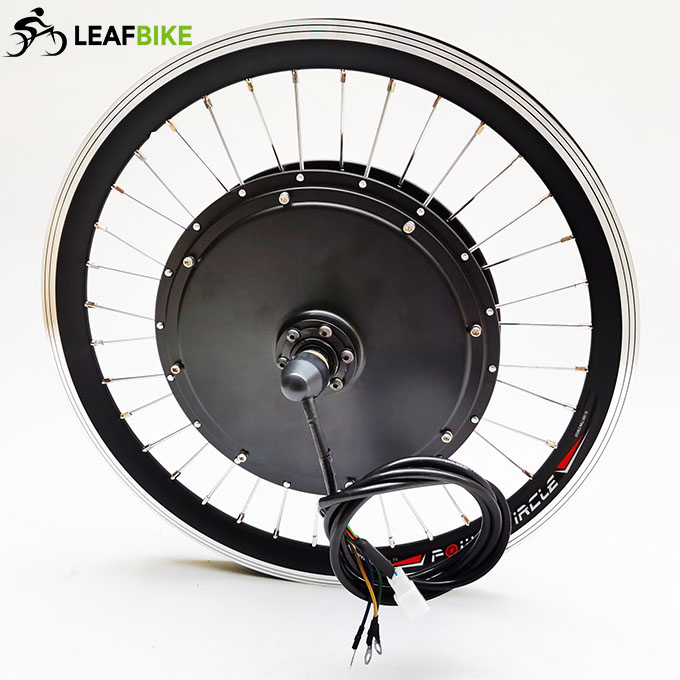

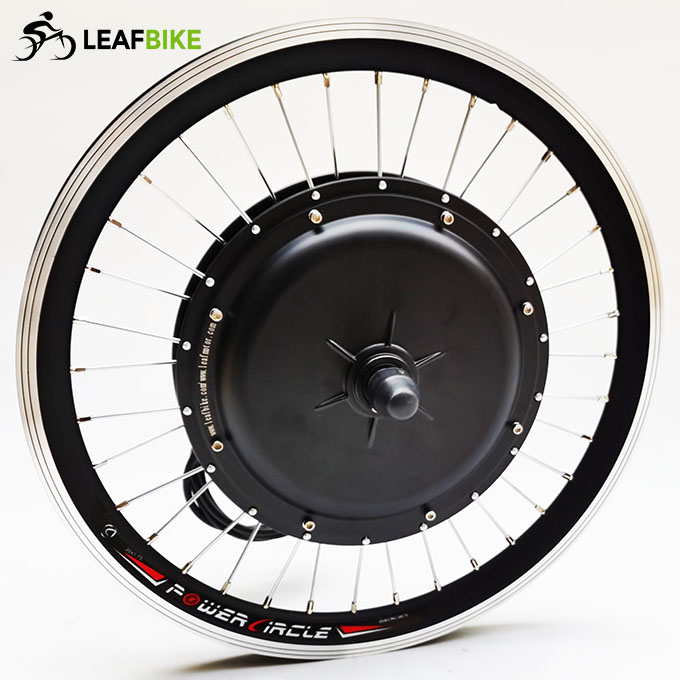

20 inch 48V 1500W front hub motor wheel
Item ID #LBM20481500FN
List Price: $256.00€256.00£217.60AU$384.00CA$384.00S$384.00
Price: $210.00€210.00£178.50AU$315.00CA$315.00S$315.00
Quantity: Unit(s)
Description:
* BRAND NEWEST LEAF BIKE 2016 Version Black Lightning Brushless, Gearless hub motor!
New ULTRA powerful and efficient Gearless motor custom made with higher grade laminations, wider magnet stack, high speed bearings, Honey well hall sensors, more copper fill, and all out higher performance. We went through all the stops to make this motor the absolute best hub motor on the market.

This motor has the more acceleration at low end, better mid range, and more top end. Also offer this wheel professionally laced into our double wall aluminum rims with 12g spokes.  Message us for details. 20", 24", 26", 27"(650B), 700c , 28" & 29" sizes are available.

* Saving 10% of electricity, Improve the efficiency of 8% With The Newest Materials Steel Rotor.

Main Features:

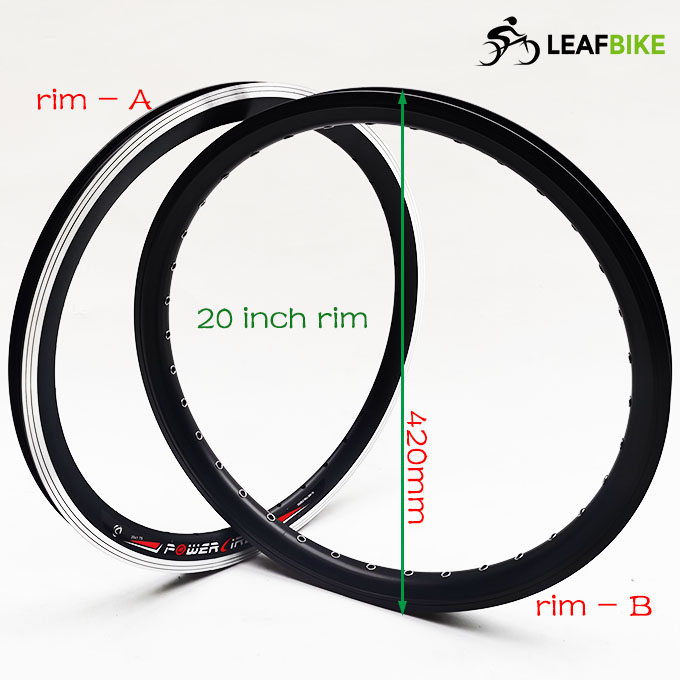

>. Rim: 20" double wall Alloy ( tire: 20 × 1.5" / 1.75" / 1.95" / 2.1" / 2.5" / 3.0"... )
If the width of your tire / tyre is 2.1, 2.5, 3.0, ...
Please note tire/tyre size when you place an order so that we can send a wider rim & fit for your wider tire/tyre.
>. Spoke: 12 gauge / 72mm Length × 36 pcs

>. Engine : Bldc hub motor
>>. Voltage: 48V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 60.9 kmh -- 37.8mph ( 16 * 4T winding rotor )

If you like slower,we also can make it from max 680rpm to  min Min.80rpm.ONLY Note: Max speed when you place an order.Then we can customize it as your order.
For example:   9 * 7T - 380RPM 10 * 6T - 480RPM 13 * 5T - 580RPM 16 * 4T - 680RPM

>>.  Mechanical brake: V
>>.  Cable location: shaft middle, LEFT
>>.  Cable length:150cm / 60" -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of 100mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

Package Content:
1 x 20 inch 48V 1500W front hub motor wheel

Net Weight: 8.5 kg   /  18.7 lbs
Package Size: 50cm L x 23cm W x 50cm H  /  19.7"  L x 8.7" W x 19.7" H
Package Type: Cardboard Box

Share Video: Wire Diagram:
20 inch 48V 1500W front hub motor - bike conversion kit electric-hub-motor-conversion-kit-wire-drawing

48V 1500W front hub motor Drw. Performance Data:
48v-1500w-front-electric-bike-motor 48v-1500w-curve
