24 inch 48V 52V 1500W rear bike motor kit

Item ID #LBCK24481500RNL
$370.00 $428.00
    Please select the information you wantX
Quantity :
-
+
Maybe You Need These
Maybe You Need These
Description
Please watch video for 24 inch 48V 1500W rear bike motor kit that show one kind of default speed. We also can customize this motor with different speed versions for free. For example: max 25kmh, 32kmh, 45kmh ..
Share Video:
24 inch 48v 1500w rear electric bike motor kit

* This 24 inch bike motor kit combines the full E-bike technology: direct drive Brushless Gearless high torque hub Motor to change almost every bicycle into a personal electric bike. Save energy, protect environment and save money with a lot of fun.

Main Features:

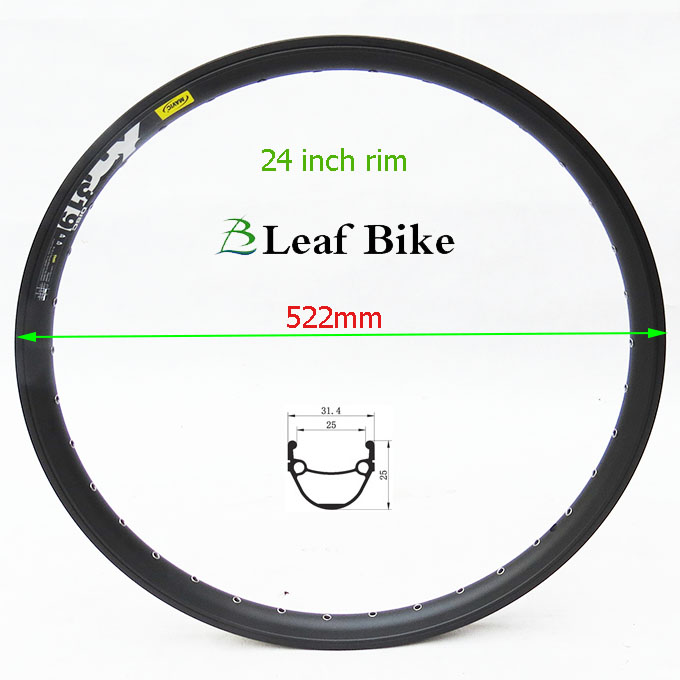

>. Rim: 24 inch double wall Alloy (Rim Fit For 1.95" ~ 2.5" tire)
If the width of your tire / tyre is 1.75, 1.5 inch…(smaller than 1.95 inch)
Please note tire/tyre size when you place an order so that we can send a wider rim & fit for your wider tire/tyre.

>. Spoke: 12 gauge / 135mm Length × 36 pcs
>. Default: Black spokes
>. Optional: Silver spokes -- Please leave message.

>. Engine : Bldc hub motor
>>. Voltage: 48V / 52V
>>.  Power: 1500W
>>.  Efficiency: 90.5%
>>.  Max speed: 55.9 kmh -- 34.3mph Default (Optional other speed: 30mph or 25mph...please leave message)
>>. Mechanical brake: Disk or  V
>>. Freewheel: space for single speed... 6 speed or max 7 speed
>>.  Cable length:100cm / 40" -- Update “3mm phase wires” & "Newest version hub"
>>.  Install: spacing of Min 135mm to Max 155mm fork
>>.  Noise: < 60 db
>>.  Surface: Black painted

>. Driver: brushless controller
>>. MOSFET: 12 PCS
>>. With LCD: YES
>>. Rated Voltage: DC 48 / 52 Volts
>>. Min. Voltage: DC 40 ± 0.5 V
>>.  Rated power: 1500 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 40 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 171 mm L × 82 mm W × 42 mm H

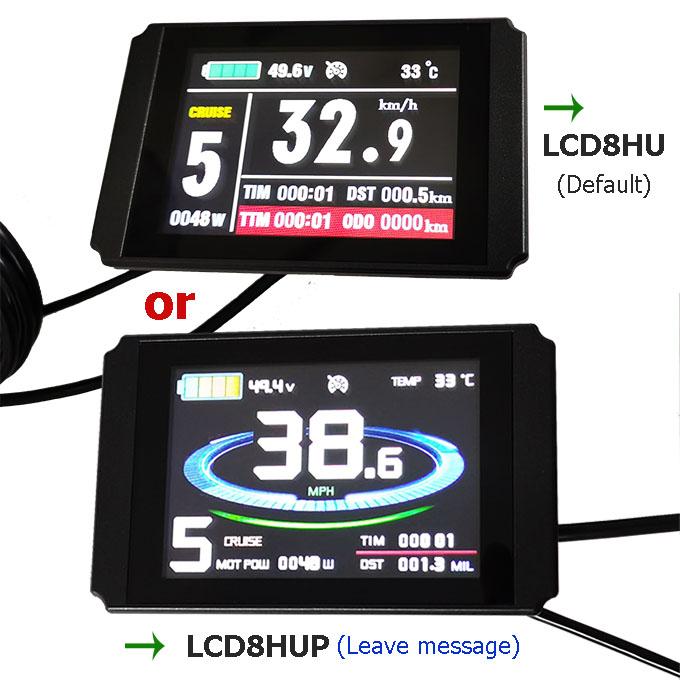

LCD-008HU With USB Port & Color screen, More Function:
* Cruise -- Green button Control (While motor is working,press green button one time,it will be "CRUISE" - running as the same speed)
* Reverse -- Yellow button Control ("Left side & mid / forward -- "Right side / backward")
* Kmh / mph
* Set Max speed ( 0 ~ 72 kmh / 45 mph ) --  If set be "32", Max speed will be 20mph / 32kmh
* Pedal assist ( 0 - 5 ) -- "0" is off PAS. "1-5" is on PAS. "5" is the strongest.
* ...

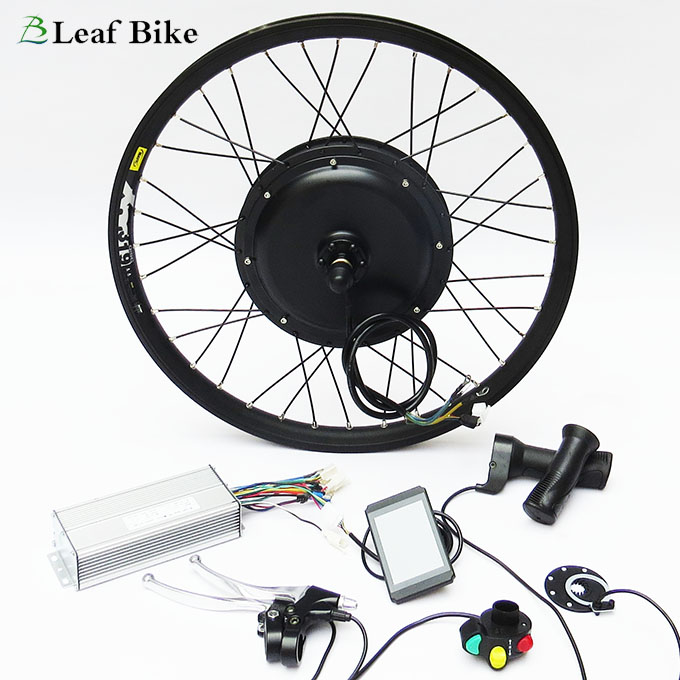

Package Content:

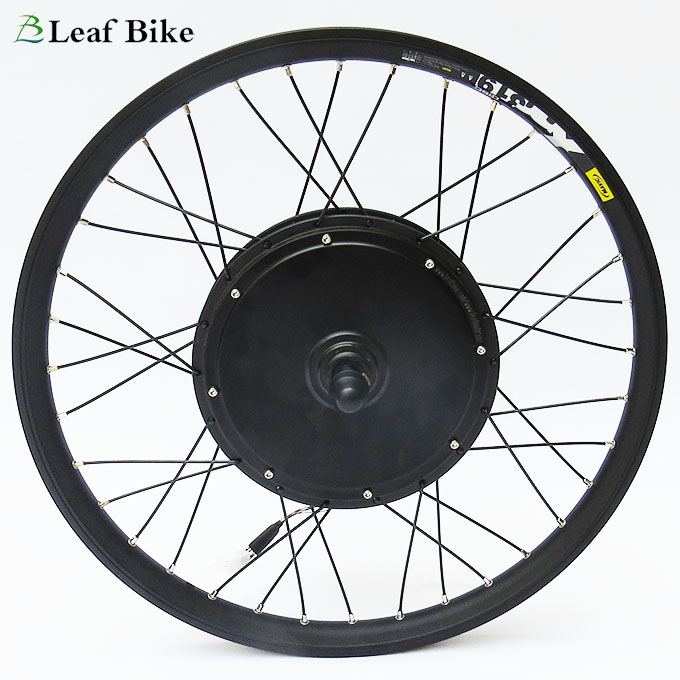

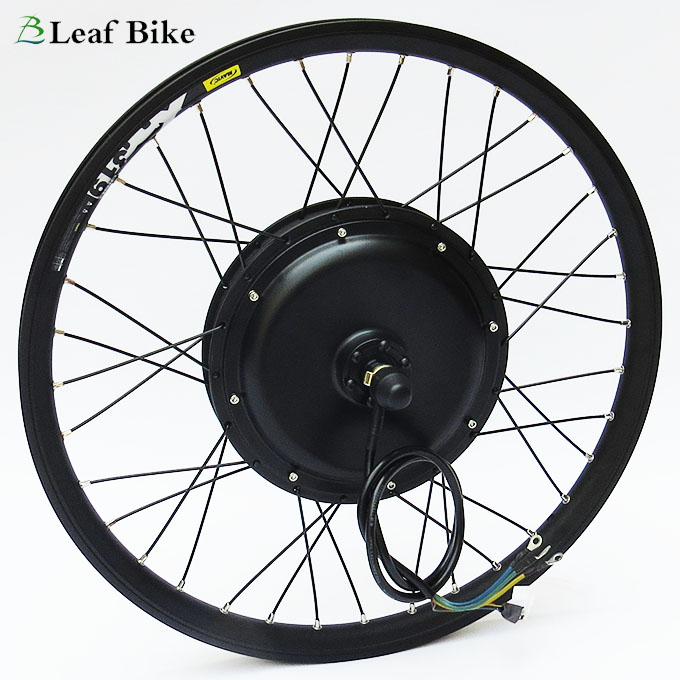

1 x 24 inch 48V / 52V 1500W rear bike motor wheel
1 x 48V / 52V 1500W 12-MOSFET motor controller
1 x LCD-008HU With USB Port & Color screen
1 x Twist throttle -- Cable length: 1500mm
 1 x Brake levers -- Cable length: 1500mm
1 x Three button switches ( control cruise, reverse .. ) -- Cable length: 1500mm
1 x Pedal assist -- Cable length: 900mm

Net Weight: 11.2 kg   /  24.6 lbs
Package Size: 56cm L x 56cm W x 25cm H
Package Type: Cardboard Box

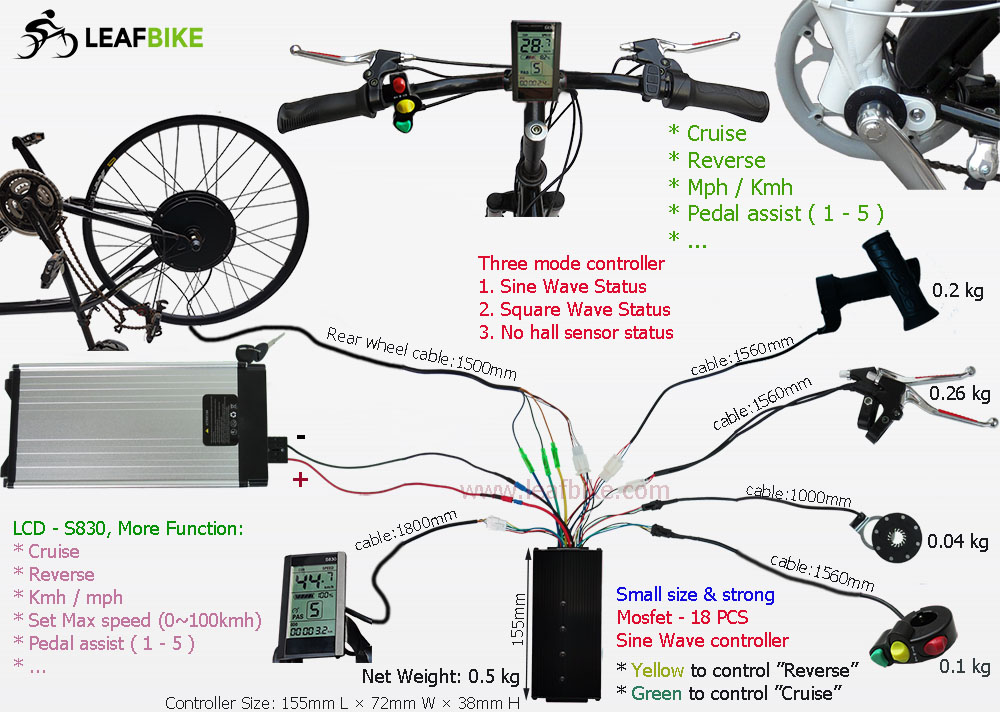

Wire Diagram:
1500w rear hub motor electric bike conversion kit wire diagram
1500w rear Motor Drw.
1500w rear freewheel hub motor drawing
Performance Data:
48v 1500w rear bike motor curve
