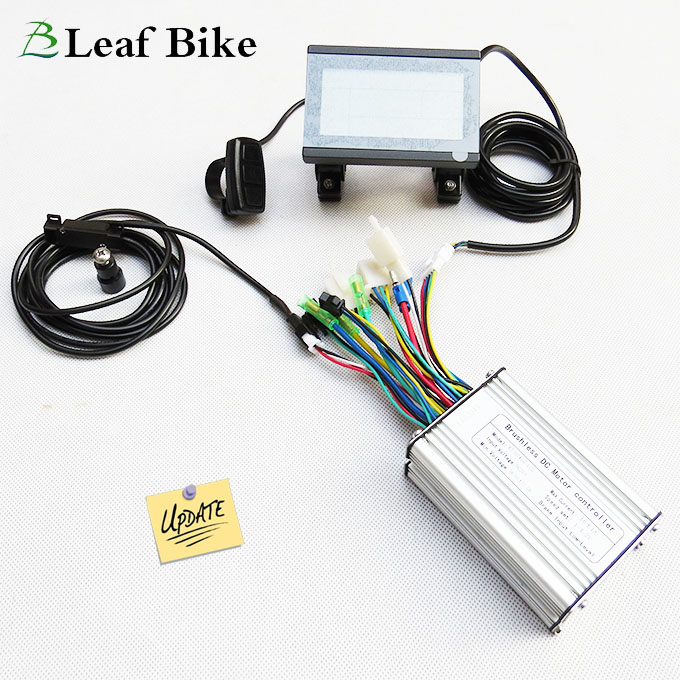

36V 250W electric bike motor controller
Item ID #LBC36250M
List Price: $85.00€85.00£72.25AU$127.50CA$127.50S$127.50
Price: $85.00€85.00£72.25AU$127.50CA$127.50S$127.50
Quantity: Unit(s)
Description:
36V 250W Electric Bicycle Brushless Motor Controller For E-bike & Scooter -- 6-MOSFET
It's fit to drive 36V 180 ~ 350W brushless with hall sensor hub motor.

Features:
Suitable for Electric for electric bike & scooter
>>. MOSFET: 6 PCS
>>. With LCD: YES
>>. Rated Voltage: DC36 Volts
>>. Min. Voltage: DC 30 ± 0.5 V
>>.  Rated power: 250 Watts
>>.  Casing material: aluminium
>>.  Maximum Current: 14 A ± 1 Amps
>>.  Thermal: aluminum shell and the substrate
>>. 3 phase 120° brushless motor
>>. Operating Conditions: -20~45 °C
>>. Waterproof design
>>. Size: 95 mm L × 61 mm W × 35 mm H
>>. Weight: 0.4 kg

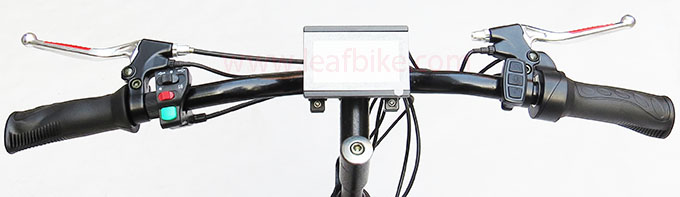

Working with LCD
Display: speed, mileage, battery gauge...

Functions:
. Mute when start
. Speed limit
. Power cut brake
. Blockage protection
. Current limit protection
. E-ABS brake
. Short circuit protection
. Avoid out of control
. 1:1 pedal assist function
. Undervoltage protection

Additional features:
* Cruise
* Reverse
* Regen brake
* Pedal assit ( 1 - 5 )
* Mph / kmh
* ....
Share Video: Wire Diagram:
  26 inch 36v 250w front hub motor - electric bike conversion kit   250w electric bike conversion kit wiring diagram
